Thickness Measurement

Low cost desktop thin film measurement tools with industry-leading measurement technology.

Single-Spot Thickness Measurements

F20 Series Single Spot Thin Film Analyser

F20 Series Single Spot Thin Film Analyser

F3-sX Series Single Spot Thin Film Analyser

F3-sX Series Single Spot Thin Film Analyser

F10-Arc Single Spot Reflectance & Thin Film Analyser

F10-Arc Single Spot Reflectance & Thin Film Analyser

F10-AR Series Single Spot Thin Film Analyser

F10-AR Series Single Spot Thin Film Analyser

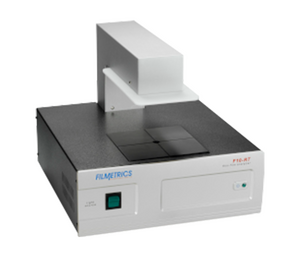

F10-RT Series Single Spot Reflectance & Transmittance Analyser

F10-RT Series Single Spot Reflectance & Transmittance Analyser

F10-HC Single Spot Thin Film Analyser

F10-HC Single Spot Thin Film Analyser

F3-CS Series Single Spot Thin Film Analyser

F3-CS Series Single Spot Thin Film Analyser

Microscopic-Spot Thickness Measurements

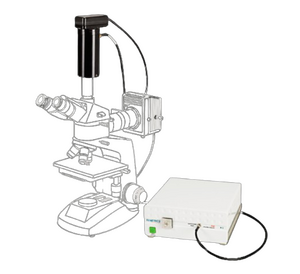

F40 Series Microscopic Spot Thin Film Analyser

F40 Series Microscopic Spot Thin Film Analyser

Automated Thickness Mapping Systems

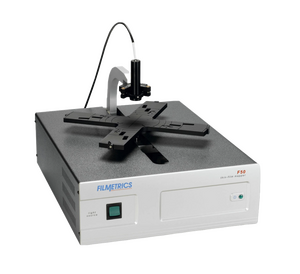

F50 Series Automatic Thin Film Mapping Analyser

F50 Series Automatic Thin Film Mapping Analyser

F54 Series Automatic Thin Film Mapping Analyser

F54 Series Automatic Thin Film Mapping Analyser

F54-XY-200 Series Automatic Thin Film Mapping Analyser

F54-XY-200 Series Automatic Thin Film Mapping Analyser

F60-t Series Automatic Thin Film Mapping Analyser

F60-t Series Automatic Thin Film Mapping Analyser

Inline Thickness Monitoring

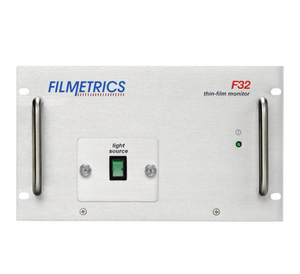

F32 Series In-Line Thin Film Analyser

F32 Series In-Line Thin Film Analyser

F30 Series In-Line Thin Film Analyser

F30 Series In-Line Thin Film Analyser

Sheet Resistance Measurement

R50 Sheet Resistance Measurement

R50 Sheet Resistance Measurement

Product Selection Guide

Single Spot Measurements
Model
Thickness Range
Wavelength Range
Standard Spot Size
F3-s980 10-1000µm (optional) 190-1700nm 10µm
F3-s1310 15-2000µm (optional) 1440-1690nm 10µm
F3-s1550 25-3000mm (optional) 960-1580nm 10µm
F3-CP 0.015-70µm 380-1050nm 100µm
F3-CS 0.015-70µm 380-1050nm 100µm
F10-AR 0.02-15µm 380-1050nm 100µm
F10-AR-EXR 0.2-30µm 380-1700nm 100µm
F10-AR-NIR 0.5-30µm 380-1700nm 100µm
F10-AR-UV 0.1-15µm 380-1700nm 100µm
F10-AR-UVX 0.1-30µm 380-1700nm 100µm
F10-ARc 0.2-15µm 380-1050nm 100µm
F10-HC 0.05-70µm 380-1050nm 200µm
F10-RT 0.015-70µm (optional) 380-1050nm 5000µm
F10-RT-EXR 0.015-150µm (optional) 380-1700nm 5000µm
F10-RT-NIR 0.1-150µm (optional) 380-1700nm 5000µm
F10-RT-UV 0.003-40µm (optional) 190-1100nm 5000µm
F10-RT-UVX 0.003-150µm (optional) 190-1700nm 5000µm
F20 0.015-70µm 380-1050nm 1500µm
F20-EXR 0.015-250µm 380-1700nm 1500µm
F20-NIR 0.1-250µm 950-1700nm 1500µm
F20-UV 0.003-40µm 190-1100nm 1500µm
F20-UVX 0.003-250µm 190-1700nm 1500µm
F20-XT 0.2-450µm 1440-1690nm 1500µm
F40 0.02-20µm 400-850nm 1µm
F40-EXR 0.02-40µm 400-1700nm 1µm
F40-NIR 0.04-40µm 950-1700nm 1µm
F40-UV 0.004-40µm 190-1100nm 7µm
F40-UVX 0.004-40µm 190-1700nm 7µm
In-line Measurements
Model
Thickness Range
Wavelength Range
Standard Spot Size
F30 0.015-70µm 380-1050nm 1500µm
F30-EXR 0.015-250µm 380-1700nm 1500µm
F30-NIR 0.1-250µm 950-1700nm 1500µm
F30-UV 0.003-40µm 190-1100nm 1500µm
F30-UVX 0.003-250µm 190-1700nm 1500µm
F30-XT 0.2-450µm 1440-1690nm 1500µm
F32 0.015-70µm 380-1050nm 1500µm
F32-EXR 0.015-250µm 380-1700nm 1500µm
F32-NIR 0.1-250µm 950-1700nm 1500µm
F32-UV 0.003-40µm 190-1100nm 1500µm
F32-UVX 0.003-250µm 190-1700nm 1500µm
F32-XT 0.2-450µm 1440-1690nm 1500µm
F32-s980 10-1000µm 960-1000nm 10µm
F32-s1310 15-2000µm 1280-1340nm 10µm
F32-s1550 25-3000µm 1520-1580nm 10µm
Multi-Point Mapping
Model
Thickness Range
Wavelength Range
Standard Spot Size
F50 0.02-70µm 380-1050nm 1500µm
F50-EXR 0.02-250µm 380-1700nm 1500µm
F50-NIR 0.1-250µm 950-1700nm 1500µm
F50-UV 0.005-40µm 190-1100nm 1500µm
F50-UVX 0.005-250µm 190-1700nm 1500µm
F50-XT 0.2-450µm 1440-1690nm 1500µm
F50-s980 4-1000mm 960-1000nm 10µm
F50-s1310 7-2000µm 1280-1340nm 10µm
F50-s1550 10-3000µm 1520-1580nm 10µm
F50-450 0.02-70µm 380-1050nm 1500µm
F50-450-EXR 0.02-250µm 380-1700nm 1500µm
F50-450-NIR 0.1-250µm 950-1700nm 1500µm
F50-450-UV 0.005-40µm 190-1100nm 1500µm
F50-450-UVX 0.005-250µm 190-1700nm 1500µm
F50-XY 0.2-100µm 380-1050nm 1500µm
F50-XY-EXR 0.02-250µm 380-1700nm 1500µm
F50-XY-NIR 0.1-250µm 950–1700nm 1500µm
F50-XY-UV 0.005-40µm 190-1100nm 1500µm
F50-XY-UVX 0.005-250µm 190-1700nm 1500µm
F50-XY-XT 0.2-450µm 1440-1690nm 1500µm
F54 0.02-40µm 400-850nm 7µm
F54-EXR 0.02-100µm 400-1700nm 7µm
F54-NIR 0.04-100µm 950-1700nm 7µm
F54-UV 0.004-30µm 190-1100nm 7µm
F54-UVX 0.004-100µm 190-1700nm 7µm
F60-t 0.02-70µm 380-1050nm 1500µm
F60-t-EXR 0.02-250µm 380-1700nm 1500µm
F60-t-NIR 0.1-250µm 950-1700nm 1500µm
F60-t-UV 0.005-40µm 190-1100nm 1500µm
F60-t-UVX 0.005-250µm 190-1700nm 1500µm
F60-t-XT 0.2-450µm 1440-1690nm 1500µm
F60-t-s980 4-1000µm 960-1000nm 10µm
F60-t-s1310 7-2000µm 1280-1340nm 10µm
F60-t-s1550 10-3000µm 1520-1580nm 10µm
