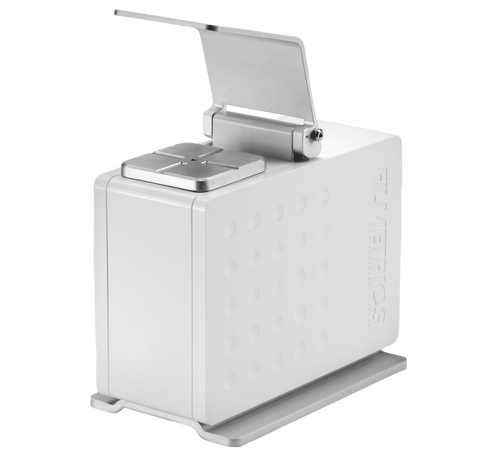

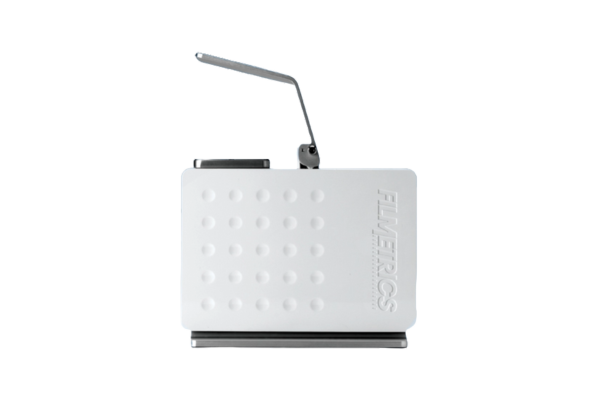

F3-CS Series Single Spot Thin Film Analyser

Measure small samples quickly and easily with the Filmetrics F3-CS Series thin film analysers. Simply place a sample face down on the stage, and layer measurements are produced in seconds. Requires minimal setup, training, or maintenance. The system has everything necessary to measure hundreds of types of layers, no matter if they are on transparent and opaque substrates.

Manufacturer

Filmetrics

Filmetrics was founded in 1995 with the mission of making thin-film measurements simple and affordable. Our approach, borne of the microelectronics and software revolution, results in film-thickness measurements that take less than a second - by operators who can be trained in minutes.

Key Features

  • Intuitive Analysis Software
  • 200μm Spot Size
  • 50nm to 70μm Thickness Range
  • 380-1050nm Wavelength Range
  • Fast Measurement Time
  • Robust & Reliable

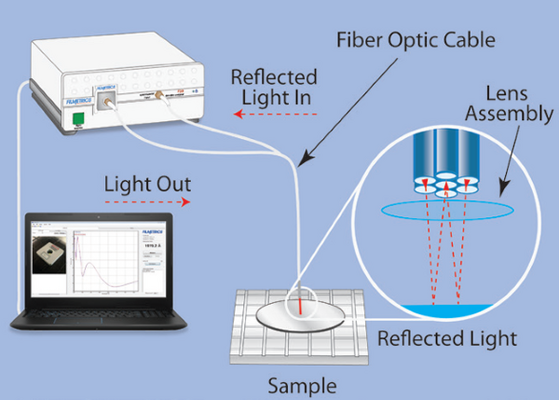

Fast Measurement for Small Samples

Designed for measuring small samples, the Filmstrips F3-CS series of thin film measurement tools provide a fast and simple solution for film measurement. With minimal training, even inexperienced users can quickly measure layers such as parylene and vacuum coatings. Filmetrics’ measurement technology can measure in seconds. To measure a small witness or coupon sample, a user simply places it face down on the measurement stage, and layer thicknesses are automatically measured. Filmetrics’ AutoBaseline technology automatically adjusts instrument sensitivity to minimise setup time.

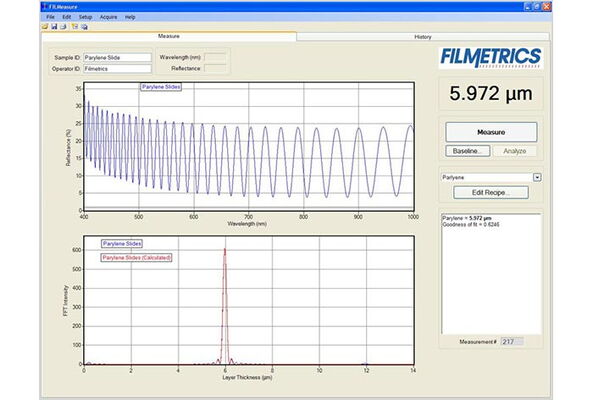

Intuitive Software Makes Measurement Easy

With Filmetrics’ FILMeasure software, making accurate measurements in simple and easy. The optical constants for all common dialectric and semiconductor layers, such as parylene C, N and HT, are included in the software. Thickness measurement results are displayed in real time as samples are measured. Each Filmetrics measurement system is backed by comprehensive technical and applications support, including online diagnostics and assistance. Filmetrics support is available 24 hours a day.

Model Specifications

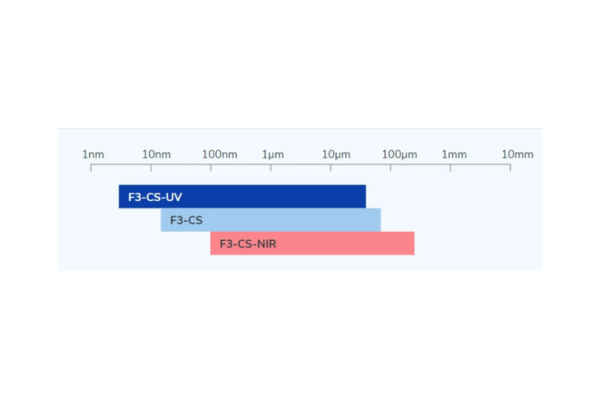

Thickness and Wavelength Range

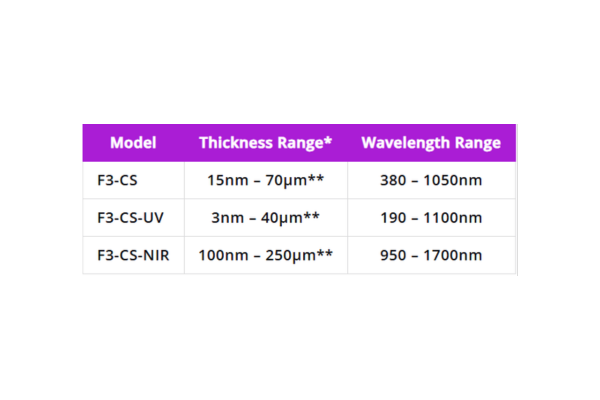

Model Specifications

Thickness Measurement Range

What’s Included

  • USB-powered spectrometer/light source unit
  • FILMeasure 9 software
  • Built-in sample stage
  • BK7 reflectance standard
  • 40k-hour light source

Additional Perks

  • Applications Engineers available for immediate 24-hour assistance (Mon-Fri)
  • Online "Hands On" support (internet connection required)

Downloads

Brochures

F3-CS Series Single Spot Thin Film Analyser Brochure

View Brochure

Options

Carrying case

Carrying case for most F10, F20, F30, and F40 systems.

Service Support

Comprehensive repairs and servicing

Annual Support Programs

Your metrology instrumentation is a major investment that is critical to your business operation and success. In today’s competitive climate, it is more important than ever to extend the functionality and peak performance of your metrology equipment years beyond the expiration of your factory warranty. CN Tech’s Support Programs will help ensure that your investment is protected, and that you and your instrument’s are always operating at peak performance.

With over 20 years’ experience servicing and repairing you can be assured that your system is in safe hands. The independent services we offer include system relocation, maintenance visits, parts and consumables, and break down interventions.

CN Tech’s Support Programs are an economical way to guarantee optimal working condition:

  • Annual Preventive Maintenance
  • Priority Technical Assistance
  • Preferred Parts Availability
  • On-Site User Training
  • Remote Diagnostics
  • No surprise repair expense and much more!

Support Contact Example

An example of our service and support contracts are shown below:

Brochures

Metrology & Instrumentation Annual Support Programs 2022/23

CN Tech's Support Programs will help ensure that your investment is protected, and that you and your instrument’s are always operating at peak performance.
