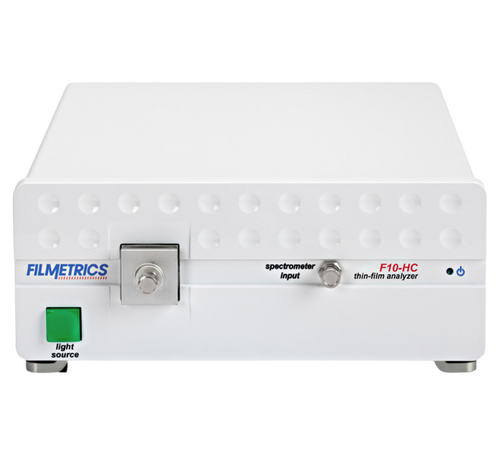

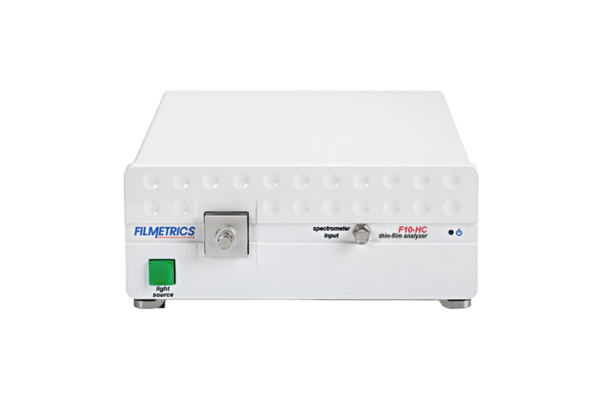

F10-HC Single Spot Thin Film Analyser

Measure single and multi-layer hard coats quickly and easily with the Filmetrics F10-HC. Simple to operate, fast to measure, and highly reliable, the F10-HC is used worldwide for accurate hard coat thickness measurements. Like all our thickness measurement instruments, the F10-HC connects to the USB port of your Windows® computer and sets up in minutes.

Manufacturer

Filmetrics

Filmetrics was founded in 1995 with the mission of making thin-film measurements simple and affordable. Our approach, borne of the microelectronics and software revolution, results in film-thickness measurements that take less than a second - by operators who can be trained in minutes.

Key Features

  • Intuitive Analysis Software
  • 200μm Spot Size
  • 50nm to 70μm Thickness Range
  • 380-1050nm Wavelength Range
  • Fast Measurement Time
  • Robust & Reliable

Measurement for Single & Multilayer Hardcoats

Filmetrics have developed the F10-HC to provide fast and accurate thickness measurements for single and multi-layer hard coats. The spectral reflectance technology of Filmetrics’ F20 platform has been combined with advanced simulation algorithms, to create a reliable measurement platform for hard coatings. The F10-HC is ideally suited for measuring single and multiple layers (such as primer and hard coat) encountered in polycarbonate and other hard coat applications. The F10-HC is used for automotive hard coat around the world with great success. Accurate and reliable, the F10-HC is backed by a comprehensive support package, including 24-hour online diagnostics and technical assistance.

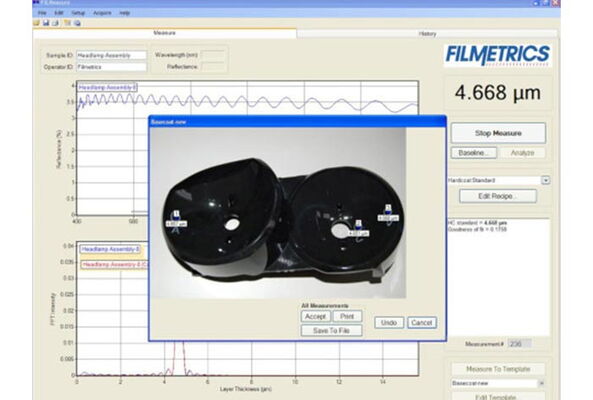

Easy to Operate Software

To make film measurement efficient and easy, Filmetrics have developed the FILMeasure software package to power each Filmetrics measurement system. FILMeasure is simple and easy to use, making film measurement straightforward, even for inexperienced operators. With Template Mode, an image of a sample can be uploaded, and measurement points defined visually and superimposed to the image. Operators are automatically notified if measurements are valid at each point. FILMeasure also provides integration with FIlmetric’s comprehensive online technical support, including online diagnostics and technical help, available 24 hours a day.

Model Specifications

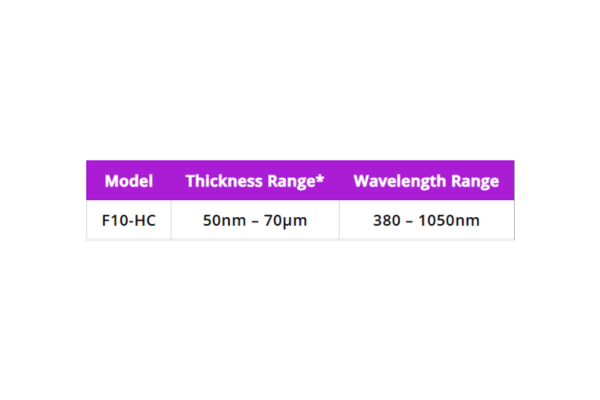

Thickness and Wavelength Range

What’s Included

  • Integrated spectrometer/light source unit
  • FILMeasure 9 software
  • FILMeasure standalone software for remote data analysis
  • CP-1-1.3 probe
  • BK7 reflectance standard
  • TS-Hardcoat-4µm thickness standard
  • Spare TH-1 lamp

Additional Perks

  • Applications Engineers available for immediate 24-hour assistance (Mon-Fri)
  • Online "Hands On" support (internet connection required)
  • Hardware upgrade program

Downloads

Brochures

F10-HC Single Spot Thin Film Analyser Brochure

View Brochure

Options

Contact probe

Contact probe for measuring on flat or spherical samples. Ruggedized stainless steel monocoil.

Carrying case

Carrying case for most F10, F20, F30, and F40 systems.
