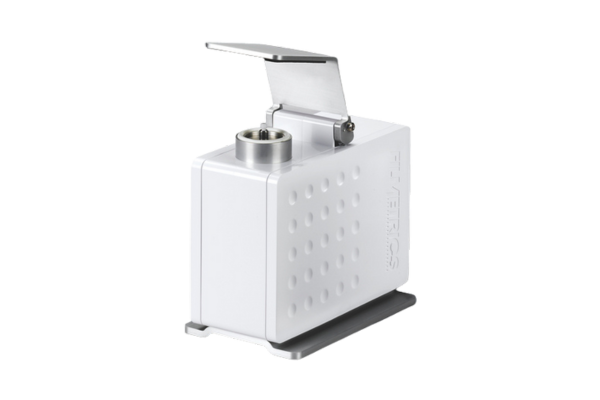

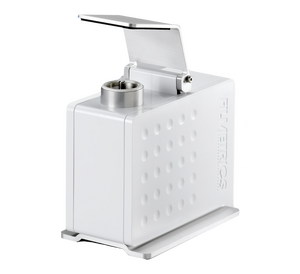

F10-Arc Single Spot Reflectance & Thin Film Analyser
Make measuring curved surfaces easy, for reflectance, colour, and film thickness. With Filmetric’s advanced technology, measurement is fast and simple, delivering accurate results in seconds. Comprehensive support and accessories available. You can even define intuitive go/no-go criteria for colour and maximum, minimum, and average reflectance over any set of wavelength ranges.
Key Features
- USB-powered
- 40,000-hour light source
- High measurement confidence with automatic wavelength calibration
- Built-in online diagnostics
- Intuitive analysis software included
- Sophisticated history function for saving, reproducing and plotting results
- 24-hour (M-F) phone, email and online support by application engineers
Manufacturer
Filmetrics
Filmetrics was founded in 1995 with the mission of making thin-film measurements simple and affordable. Our approach, borne of the microelectronics and software revolution, results in film-thickness measurements that take less than a second - by operators who can be trained in minutes.
Measurement Technology Ahead of the Curve

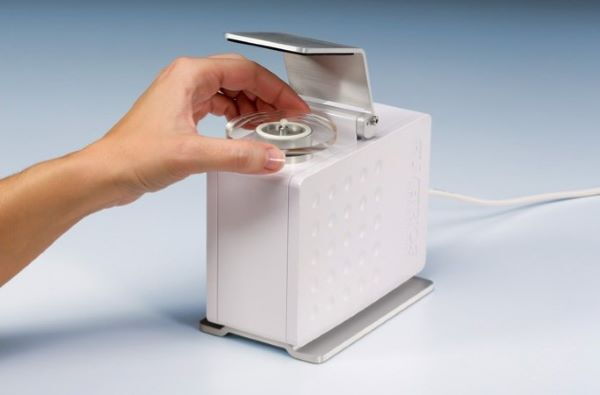

With the F10-Arc, Filmetrics’ makes measuring lens and curved surfaces easy, including anti-reflection coatings. The F10-Arc can provide precise measurements for reflectance, colour, and film thickness in seconds. The system is simple to set up and use, requiring no complex training, and is highly robust and reliable. The F10-Arc has been designed to minimise downtime, requiring little integration time or baselining. A 40,000-hour life light source, and automatic wavelength calibration minimise the need for maintenance. With each Filmetrics tool, a comprehensive support package, including online assistance, is also included. The F10-Arc features a wavelength range of 380-1050nm. For film thickness, a thickness range of 200nm - 15μm is supported.
Software Designed for Ease of Use

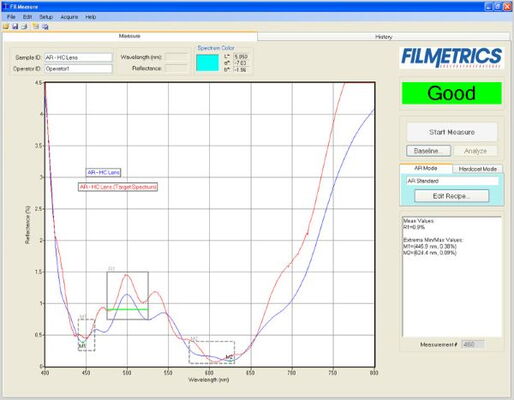

Filmetrics makes reflectance measurement easy and straightforward with the FILMeasure software package. With only minimal training, users can quickly acquire accurate and reliable measurements. Measurement criteria can be pre-programmed for colour and maximum, minimum, and average reflectance over any combination of wavelength ranges. FILMeasure can be used standalone for analysis purposes.
A fully comprehensive support package is also included, with online support and diagnostics available 24 hours.
Model Specifications
Thickness and Wavelength Range
Easy to set up. Easy to maintain
Simply plug the F10-ARc into your computer’s USB port and you’re ready. Thanks to Filmetrics® innovations, downtime is almost non-existent, as is the need for integration time and baselining. And with a 40,000-hour light source and automatic on-board wavelength calibration, you don’t have to be concerned with maintenance.
What’s Included
- Integrated spectrometer/light source unit
- FILMeasure 9 reflectance measurement software
- FILMeasure standalone software for remote data analysis
- CP-1-1.3 probe
- BK7 reflectance standard
- Spare TH-1 lamp
Additional Perks
- Online "Hands On" support
- Applications Engineers available for immediate 24-hour assistance (Mon-Fri)
- Hardware upgrade program
Industries
- Ophthalmic Coatings
- Hard Coatings
Applications
- Anti-reflection and hardcoat testing
- Plot and compare multiple reflectance spectra
- Quantify residual color
- Measure thickness with Hardcoat Upgrade
Industry
Hard Coatings Thickness Measurement
Filmetrics systems, software and applications knowledge are used widely in the automotive and aviation industry to measure hardcoat film thicknesses.
The F10-Arc measures anti-reflection coatings for anti-fog applications in automotive headlamp-assembly manufacturing, with free trial polycarbonate hard coat and other measurements available upon request.
Ophthalmic Coatings Measurement

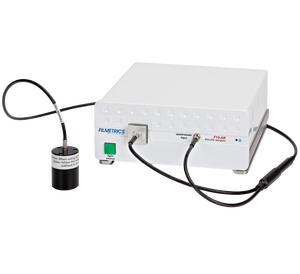

The Filmetrics® F10-ARc anti-reflection coating thickness instrument was designed especially for ophthalmic applications and offers several proprietary features for characterizing AR coatings. It’s easy to measure curved surfaces with anti-reflection coatings on eyeglasses and other optical lenses.
Hardcoat applications on lenses, up to 15 microns thick, can be measured using the Filmetrics F10-ARc with a hardcoat measurement upgrade.
Contact our experts to obtain free trial measurements of your AR coating thickness.
Downloads
F10-Arc Single Spot Reflectance & Thin Film Analyser Brochure
Options
UPG-F10-AR-HC hardcoat thickness measurement upgrade
FFT-based hardcoat-thickness-measurement software upgrade for F10-AR and F10-ARc. Includes TS-SiO2-2500nm-High-n-Glass thickness standard. Thickness range 0.25µm-15µm.
Contact probe
Contact probe for measuring on flat or spherical samples. Ruggedized stainless steel monocoil.
Carrying case
Carrying case for most F10, F20, F30, and F40 systems.
