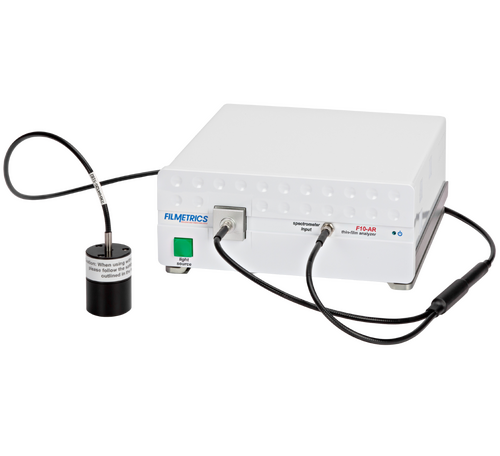

F10-AR Series Single Spot Thin Film Analyser

Test coating performance in seconds with the Filmetrics F10-AR series. Designed for ophthalmic anti-reflection and hard coatings, Filmetrics’ measurement technology is fast, accurate, and simple to use. Supports a wide range of thicknesses. Minimum, maximum, and average reflectance can be go/no-go tested over any number of user-defined wavelength ranges.

Manufacturer

Filmetrics

Filmetrics was founded in 1995 with the mission of making thin-film measurements simple and affordable. Our approach, borne of the microelectronics and software revolution, results in film-thickness measurements that take less than a second - by operators who can be trained in minutes.

Key Features

  • Intuitive Analysis Software
  • 100μm Spot Size
  • Measure Thicknesses 3nm - 250μm
  • Measure Thickness, Reflectance & Colour
  • Measures in Seconds
  • Modular & Expandable

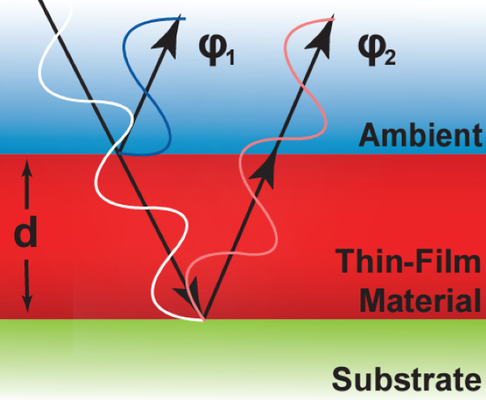

Measure Anti-Reflective Coatings Easily

Filmetrics have developed the F10-AR series of thin film analysers to be a simple and affordable solution for measuring ophthalmic anti-reflectance and hard coatings. With minimal training, an operator can make accurate measurements in seconds. Reflectance, thickness, and colour measurements are all supported. Special algorithms reduce distortion caused by hard coat layers, and Filmetrics’ AutoBaseline technology increases baseline intervals and provides 5x greater accuracy than similar fibre-probe systems. The FIlmetrics probe design rejects up to 98% of backside reflections on substrates 1.5mm, and with even greater performance on thicker samples. This removes the need for backside preparation.

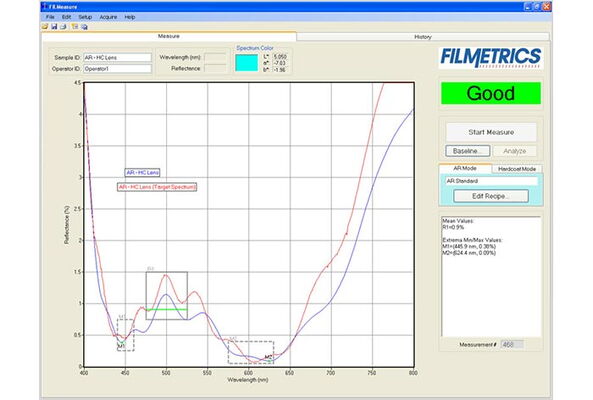

Fast & Efficient Measurement Software

To ensure an efficient workflow, Filmetrics have developed the FILMeasure software system to be as fast and simple as possible. Minimum, maximum, and average reflectance values can be configured as pass or fail tests, over any number of wavelength ranges. Filmetrics provides comprehensive technical assistance with each thin film analyser, including online diagnostics and applications support. Filmetrics support is available 24 hours a day.

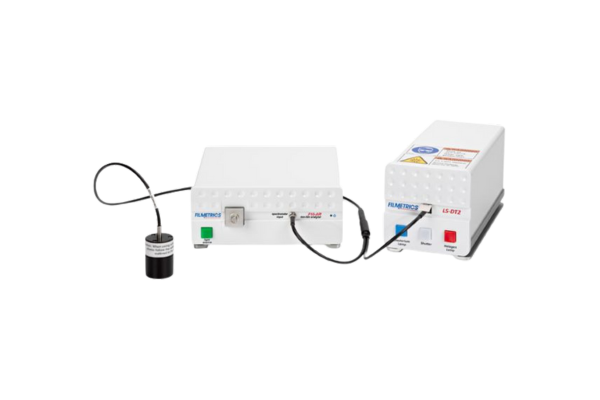

Model Specifications

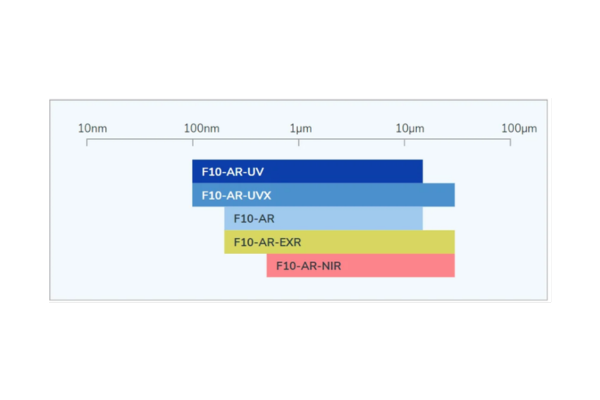

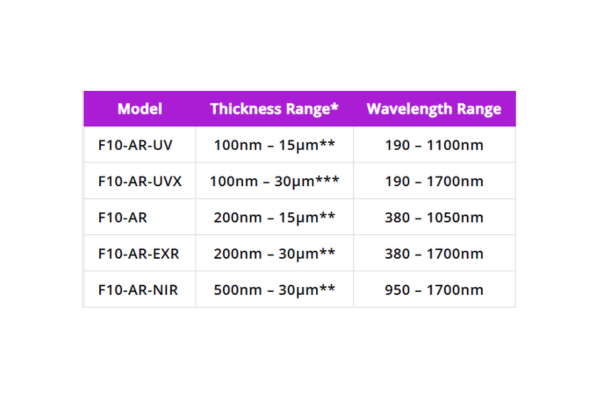

Thickness and Wavelength Range

Model Specifications

Thickness Measurement Range

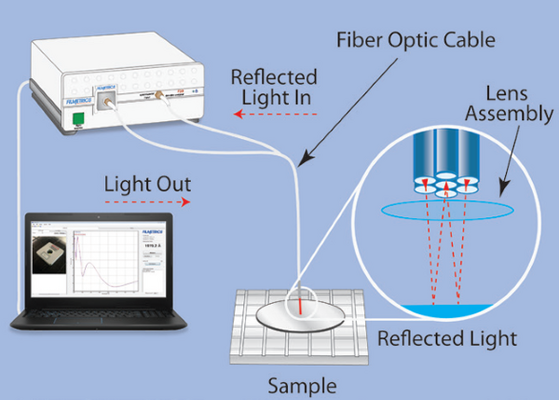

No Backside Preparation Necessary

Our exclusive probe design rejects 98% of backside reflections on substrates 1.5mm thick and rejects even more on thicker lenses. Like all our thin-film measurement systems, the F10-AR connects to the USB port of your Windows® computer and sets up in minutes.

What’s Included

  • Integrated spectrometer/light source unit
  • FILMeasure 9 reflectance measurement software
  • FILMeasure standalone software for remote data analysis
  • CP-1-1.3 probe
  • BK7 reflectance standard
  • Spare TH-1 lamp

Additional Perks

  • Online "Hands On" support
  • Applications Engineers available for immediate 24-hour assistance (Mon-Fri)
  • Hardware upgrade program

Downloads

Brochures

F10-AR Series Single Spot Thin Film Analyser Brochure

View Brochure

Options

Contact Probe

Contact probe for measuring on flat or spherical samples. Ruggedized stainless steel monocoil.

UPG-F10-AR-HC hard coat thickness measurement upgrade

FFT-based hardcoat-thickness-measurement software upgrade for F10-AR and F10-ARc. Includes TS-SiO2-2500nm-High-n-Glass thickness standard. Thickness range 0.25µm-15µm.

Carrying case

Carrying case for most F10, F20, F30, and F40 systems.
