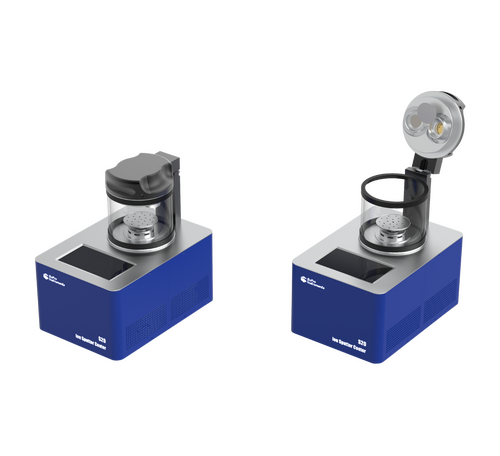

S20 High Vacuum Ion Sputter Coater
The S20 is a high-vacuum dual-target ion sputter coater based on magnetron sputtering technology. It integrates a turbo molecular pump and an oil-free diaphragm pump to provide an ultra-clean high-vacuum environment (<5×10⁻² Pa). Featuring a coordinated design of tilted dual-target and rotary sample stage, it deposits uniform and stable conductive coatings on sample surfaces.
Key Features
- Widely suitable for (ultra-)high-resolution FE-SEM sample preparation, particularly for 3D powder samples and delicate specimens
- Available sputtering materials include Au, Pt, Pd, Ir as well as Pt-Au and Pt-Pd layered alloys, etc.
- Touchscreen automatic control, plug and play.
- Tilted dual target Design: Sputter Pt/Ir/W Excellent for 3D samples
- Built-in oil-free high vacuum pump set: High repeatability, oil-free
- Auto rotating stage: Uniform coating for φ75mm, WD:55-70mm
Manufacturer
SuPro Instruments
Supro Instruments is committed to providing lean-level preparation, measurement, and control instruments for electron microscopy sample preparation and micro-nano thin film fields, assisting customers in improving research and development and production efficiency, and providing customers with a better user experience.
Product Specification
| Application Scenarios | Conductive Coating Preparation for HR/UHR FE-SEM Samples |
| Vacuum Pump | Turbo Molecular Pump + Oil-Free Diaphragm Pump |
| Pumping Speed | ≥Diaphragm Pump 0.7 m3/h +Molecular Pump 30.5 m3/h |
| Ultimate Vacuum | < 5×10-2 Pa |
| Working Pressure | 0.5-2Pa |
| Gas Control | Constant gas control, MFC Control（50 SCCM N2） |
| Pumping Down Time | <3-5Min |
| Sputtering Timer | 0-300S |
| Vacuum Gauge | High-Vacuum Composite Vacuum Gauge [Atmospheric Pressure to 10-3 Pa Range] |
| Chamber Dimension | ~Ø150×120mm |
| Rotary Sample Stage | Diameter: 80mm; Rotation Speed: 60RPM; TSD: 55-70mm continuously adjustable |
| Sputtering Target | Ø30×0.2-1mm/2pcs, Single-Target sputtering and Dual-Target Sequential sputtering |
| Sputtering Power | Constant power magnetron sputtering DC power supply Max. 30W, Max. 100mA, 0-800V DC |
| Gas Inlet | Ø6mm Air tube |
| Operating Mode | Touchscreen control，The control system provides interlock protection function |
| Weight | ~15kg |
| Dimension | ~250mm W×360mm D×374mm H |
| Power Supply | 100-240V AC, 180W Max. |
| Warranty | 1 Year |
Downloads

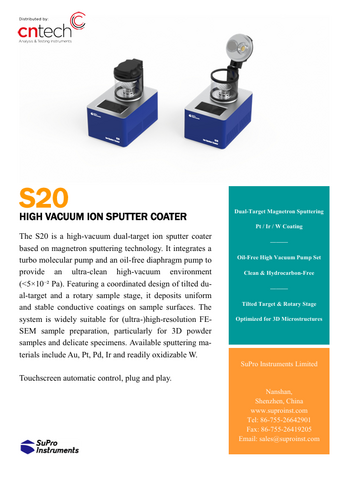

S20 Brochure
