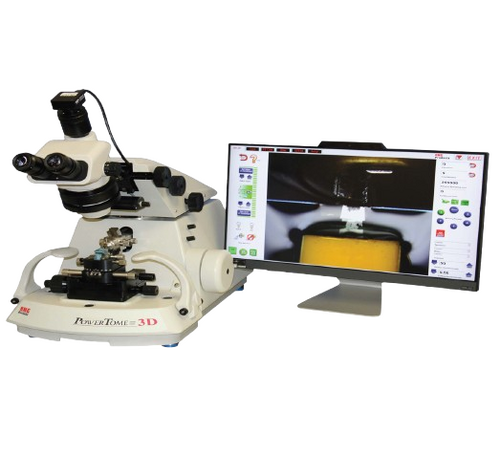

PT3D: PowerTome with 1mm Advance for Serial Sectioning

PT3D: PowerTome with 1mm Advance for Serial Sectioning

The PT3D features a full 1 mm of advance, permitting uninterrupted, ultra-thin sectioning to a depth of one millimetre. This unique advantage is especially beneficial for 3D reconstruction work, array tomography, and any situation where high amounts of precision specimen trimming are involved.

Manufacturer

RMC Boeckeler

Boeckeler Instruments engineers sample preparation equipment for nanoscale research, under the RMC Boeckeler product line. Their solutions are employed in both life sciences and materials research, with special emphasis in sample preparation for 3D electron microscopy.

Key Features

  • Produce high quality semi and ultra-thin sections for TEM, SEM, block facing for AFM, TOFSIMS, LM, and CEMOVIS
  • Hybrid control system includes touch screen monitor with Visutrac™ cutting zone control, plus digital tactile controller
  • High-definition video package showing work area with built-in video measuring system
  • Record & save video clips & still images
  • Built-in report generator, database, and diagnostic routines for automatic documentation of sectioning parameters
  • Ergonomic stereo microscope system with unique lateral viewing control
  • Four types of LED illumination are provided (all are independently adjustable): Backlighting for careful approach of the knife to the specimen, Transillumination through the specimen holder for viewing details of the specimen within the block
  • Patented Power Drive cutting stroke for large blocks & hard materials
  • Electronic step advance for final specimen approach to the knife edge
  • High stability mechanical advance system for reproducible section thickness
  • Built-in calibration & service diagnostics instantly confirm functionality & simplify maintenance procedures

Overview

The PT3D all-in-one computer controller features a slim design, touch screen control monitor. All control functions can be activated by touching the control monitor screen, or by mouse, while maintaining use of the tactile digital controller. The colour monitor displays a bright and user-friendly control interface with intuitive control icons logically arranged around the video display.

The PT3D is designed for:

  • Transmission Electron Microscopy
  • Scanning Electron Microscopy
  • Atomic Force Microscopy
  • Scanning Probe Microscopy
  • Optical Microscopy
  • FTIR

Includes

Stereomicroscope Trinoculars ACCU-SCOPE 3075 Series

  • 7:1 zoom
  • 6.7x to 45x magnification
  • 10x WF (22mm) eyepieces
  • Phototube with 50/50% right path
  • c-mount camera adaptor
  • 45-degree viewing angle

Teledyne 2.1 megapixel USB-C 3.1 colour camera

  • With Sony IMX327 Rolling Shutter Sensor

Accessory Kit

  • Transilluminated Specimen Holders (Universal, 8mm stepped, and 7mm flat)
  • Arc Segment Holder
  • Arc Mounting Stub
  • Trimming Block
  • Trimming Post
  • 12" Transillumination LED
  • Cable, fuses, wrenches

Accepts the following knives

  • Glass knives up to 12mm wide
  • Triangular tungsten carbide knives
  • Any commercial brand of diamond knives

Specifications

Specimen auto feed 1mm (1,000 µm; 1,000,000 nm)
Section thickness 0nm to 15µm
Cutting speed 0.1 to 100 mm/sec in 0.1 mm/sec increments, variable return speed over entire cutting speed range
Knife stage movement 50mm gross advance, 25mm 50mm gross advance, 25mm E-W travel, 12mm N-S advance

Downloads

Brochures

PT3D Datasheet

View Brochure

Powertome Series Comparison Sheet

View Brochure

Options

AmbiTome

Precision Sectioning with Dual Handwheel Feature!

The world’s first dual-handwheel ultramicrotome, designed to accommodate both right- and left-handed users. Allowing researchers to operate the machine with their preferred hand, freeing up the other for more intricate section manipulation, the Ambitome is the ideal solution for those who need more control than what a single-hand system offers.

The Ambitome enhances adaptability, precision, and ease at every stage of the sectioning process.

Optional Accessories Available For Purchase

Room Temperature Specimen Holders

  • Vise type flat specimen holder
  • Universal transilluminated specimen holder
  • 7mm flat specimen transilluminated holder
  • 5.6mm flat specimen transilluminated holder

Other PowerTome Accessories

  • Static line ionizer (ionization depolarization device, 115VAC or 220 - 240VAC)
  • Breath shield, for knife stage
  • Water trough filler (includes reservoir/pump, tubing and filler tube)
  • Specimen viewing mirror (mounts on upper stage for straight-on viewing of specimen)
  • Easy-lift glass knife spacer and post
  • PowerTome dust cover
  • Stereomicroscope-mounted breath shield
  • Automated water level control system (maintains constant water level in knife boar, automatically adjusting as required. For use with PTPC, PT3D, and ATUMtome)
