Probe Bender

Useful accessory for bending tungsten probe by specific angle.



Manufacturer

Micro Support

Micro Support is a prominent Japanese company specialising in the precision manufacturing of micromanipulators tailored for precise micro sampling. At the forefront of technological innovation, they have developed AxisPro, a cutting-edge, all-in-one micromanipulator that sets the industry standard for precision and versatility. AxisPro exemplifies Micro Support's commitment to advancing microsampling techniques, empowering researchers and professionals with a tool that offers unparalleled accuracy and control at the microscopic level. With a strong dedication to quality and a reputation for excellence, Micro Support continues to play a crucial role in advancing scientific research and applications that demand precise micro manipulation.

Product Videos

Probe Bender

Useful accessory for bending tungsten probe by specific angle

Key Features

  • Useful for situations where the object needs to be placed in a deep position and the standard tungsten probe cannot reach the surface under normal operation
  • Easy setting

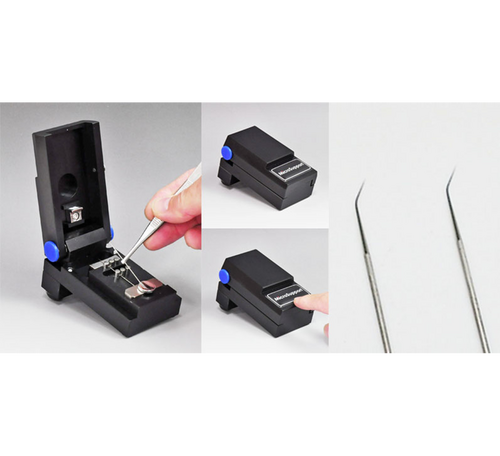

  • Place tungsten probe in position and close the cover as shown below
  • Possible to change angle by replacing another block
  • The accessory with Axis Pro can operate samplings which have never been operated

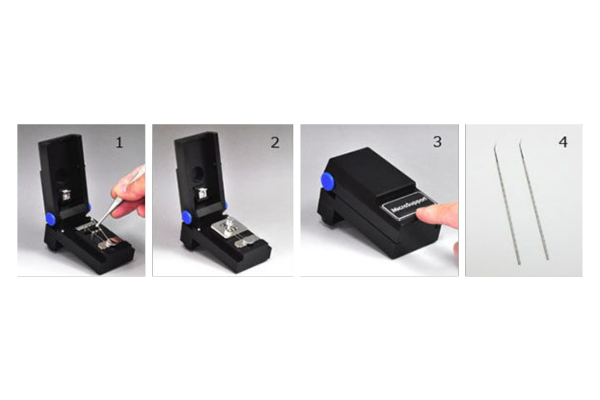

Use of Probe Bender

1. Place one or two tungsten probes in holder
2. Set guide plate
3. Close cover slowly and press lightly with finger. (You will hear a faint sound when tungsten probe is bent.)
4. Open cover to remove bent probes.

Main specification

  • Accepts tungsten probe manufactured by Micro Support
  • Size of tungsten probe length 40mm × outside diameter 0.6mm
  • Bend angle Set 15° or 30°(adjustment by thim, to)
  • Bend position~3mm or ~5mm from tip
  • Bend CapacityCapable of bending 2 tungsten probes at the same time

Lineup

Probe Bender PB-1 Accepts tungsten probe manufactured by Micro Support
