Electrode Holder

Easy access to tiny electrode pad.



Manufacturer

Micro Support

Micro Support is a prominent Japanese company specialising in the precision manufacturing of micromanipulators tailored for precise micro sampling. At the forefront of technological innovation, they have developed AxisPro, a cutting-edge, all-in-one micromanipulator that sets the industry standard for precision and versatility. AxisPro exemplifies Micro Support's commitment to advancing microsampling techniques, empowering researchers and professionals with a tool that offers unparalleled accuracy and control at the microscopic level. With a strong dedication to quality and a reputation for excellence, Micro Support continues to play a crucial role in advancing scientific research and applications that demand precise micro manipulation.

Product Videos

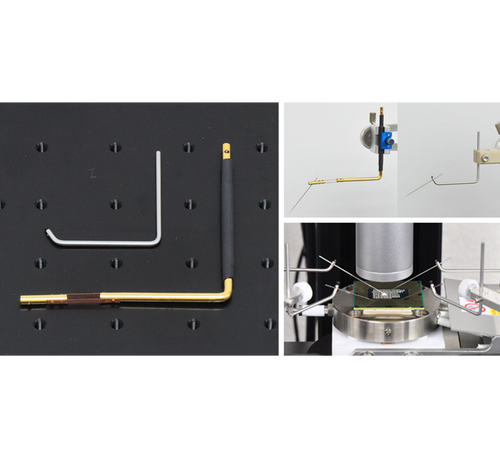

Electrode Holder

Easy access to tiny electrode pad

Key Features

  • Possible to contact with micro-size electrode pad easily
  • Applicable for DC measurement, Conduction check, resistance level measurement, etc
  • Plate spring is attached with tip, so that it is possible to contact softly and keep the position of the contact
  • BNC cable which can connect with other devices. Our tungsten probe and other type probe can be attached
  • Handles 5um-size wiring

Lineup

Electrode Holder L PA-ESS-30 ESS Type
Electrode Cable SMA-BNC-S/R Exclusive Cable, 1m, Straight/Elbow

Applications

Axis Pro with tungsten probe enables to check conduction of a few µm level wiring pattern.

  • Sample: Printed board
  • Recommended equipment: Micro Probing Station
  • Tool: Electrode Holder and Tungsten probe
  • Application: Probing
