Cryo 35° | Cryo 45° Diamond Knife
The cryo 35° knife is useful as a standard knife for the low temperature sectioning of polymers, rubber, paints, etc.
Manufacturer
DiATOME
DiATOME have been developing and manufacturing diamond knives since 1970. The DiATOME knives are the only knives that can cut all types of materials from biological to materials (hard and soft alike).
Cryo 35° and Cryo 45° wet / dry
The 35° angle represents a balanced compromise between section quality and durability.

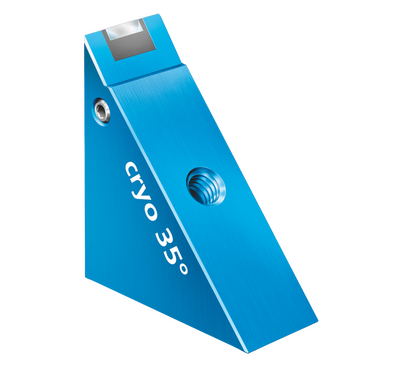

The cryo 35° and cryo 45° knife mounted in the triangular holder is suitable for dry cryosectioning.

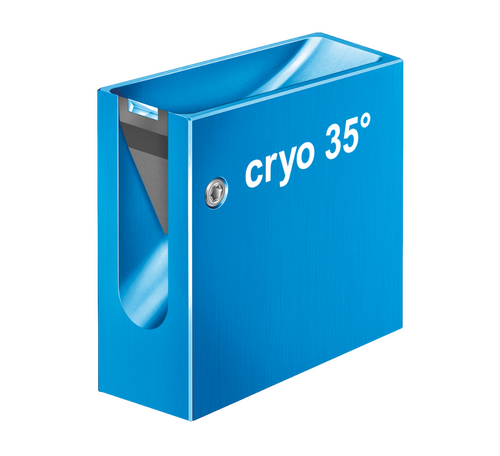

The cryo 35° and cryo 45° knife mounted in the trough are used for sectioning with fluids such as a DMSO/water mixture.
The cryo 45° knife is well suited for routine cryo sectioning.
Quality Guarantee
Before delivery, each knife, new or re-sharpened, is subject to extensive testing. We can therefore guarantee perfect sectioning (in the respective thickness range) over the entire cutting edge.
Specifications
| Knife type | Knife angle | Size (mm) | Code | Thickness range (mm) | Boat type | Application |
| Cryo 35° (dry) | 35° | 1.5 | DCO3515 2.0 | DCO3520 2.5 | DCO3525 3.0 | DCO3530 3.5 | DCO3535 4.0 | DCO3540 |
30 - 300 | Triangular holder | Polymers, rubber, paints, etc. |
| Cryo 35° (wet) | 35° | 1.5 | DCM3515 2.0 | DCM3520 2.5 | DCM3525 3.0 | DCM3530 3.5 | DCM3535 4.0 | DCM3540 |
30 - 300 | Small cryo boat | Wet sectioning of polymers with DMSO/water mixture |
| Cryo 45° (dry) | 45° | 1.5 | DCO4515 2.0 | DCO4520 2.5 | DCO4525 3.0 | DCO4530 3.5 | DCO4535 4.0 DCO4540 |
30 - 300 | Triangular holder | Routine dry cryo sectioning of polymers |
| Cryo 45° (wet) | 45° | 1.5 | DCM4515 2.0 | DCM4520 2.5 | DCM4525 3.0 | DCM4530 3.5 | DCM4535 4.0 | DCM4540 |
30 - 300 | Small cryo boat | Routine wet cryo sectioning of polymers with DMSO/water |
Applications
Cryo 35° (dry)
Polymers, rubber, paints, etc.
Cryo 35° (wet)
Wet sectioning of polymers with DMSO/water mixture
Cryo 45° (dry)
Routine dry cryo sectioning of polymers
Cryo 45° (wet)
Routine wet cryo sectioning of polymers with DMSO/water
Downloads
Diamond Knives - Handling and Use
Diamond Knives Brochure
