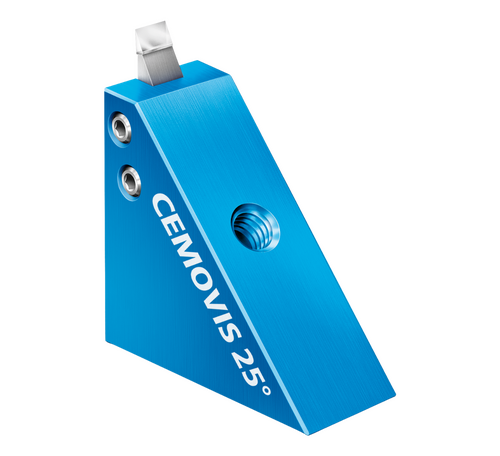

CEMOVIS 25° | CEMOVIS 35° Diamond Knife
The CEMOVIS 35° knife and the CEMOVIS 25° knife are designed for sectioning frozen hydrated specimens. The 25° angle results in the least possible compression and the best structure preservation
Manufacturer
DiATOME
DiATOME have been developing and manufacturing diamond knives since 1970. The DiATOME knives are the only knives that can cut all types of materials from biological to materials (hard and soft alike).
The best results are achieved at low humidity, when the cryo-ultramicrotome is placed in a glovebox and the sections attached by electrostatic force.
Quality Guarantee
Before delivery, each knife, new or re-sharpened, is subject to extensive testing. We can therefore guarantee perfect sectioning (in the respective thickness range) over the entire cutting edge.
Specifications
| Knife type | Knife angle | Size (mm) | Code | Thickness range (mm) | Boat type | Application |
| CEMOVIS 35° | 35° | 3.0 | DCEM3530 | 30 - 150 | Triangular Holder | Frozen hydrated samples (CEMOVIS) |
| CEMOVIS 25° | 25° | 3.0 | DCEM2530 | 30 - 150 | Triangular Holder | Frozen hydrated samples (CEMOVIS) |
| Trim 45 | 45° | DTB45 | Triangular Holder | Trimming biological and materials science samples |
Applications
Frozen hydrated samples (CEMOVIS)
Downloads
Diamond Knives - Handling and Use
Diamond Knives Brochure
Cemovis Brochure
