The AVI-600 platforms provide industry-leading active vibration isolation performance (starting at 0.5 Hz) for the precision research industry’s largest instruments (e.g. TEMs). The AVI-600 platforms help users achieve more from their instruments by removing disruptive low frequency vibration noise from affecting the quality of their measurement data. The AVI-600 platforms incorporate a low-profile and modular design, simplifying the installation process by not requiring lifting equipment for installation for a majority of instruments (including most SEMs).
The AVI-600 is available in three standard sizes: AVI-600S, AVI-600M, and AVI-600XL.
| Model | Dimensions (W x D x H) Single Isolator Dimensions | Load Capacity (Two Isolator Platform) | System Weight (Two Isolator Platform) |

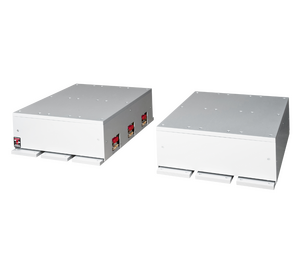

| AVI-600S | 11.3 x 15.6 x 4.4 inches / 288 x 396 x 112.5 mm | 2100 Lbs / 954.5 Kgs | 132 Lbs / 60 Kgs |

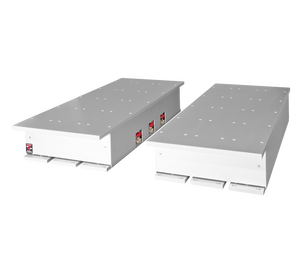

| AVI-600M | 11.2 x 28.3 x 4.4 inches / 288 x 720 x 112.5 mm | 3000 Lbs / 1362 Kgs | 160 Lbs / 72.7 Kgs |
| AVI-600XL | 11.2 x 33.7 x 4.4 inches / 288 x 856 x 112.5 mm | 3000 Lbs / 1363 Kgs | 160 Lbs / 72.7 Kgs |
