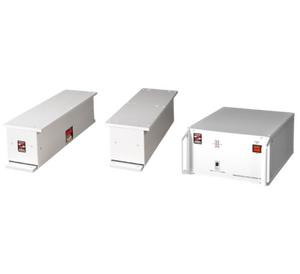

The AVI-200 platforms help users achieve more from their research by removing disruptive low frequency vibrations from affecting their measurements. The AVI-200 platforms are field-tested solutions, leading the industry in terms of low-frequency active vibration isolation performance (starting at 0.5 Hz) for compact microscopes performing nanoscale research.
The AVI-200 platforms include a low-profile and modular design, becoming the perfect solution for users wanting an effective and easy-to-install platform to protect their high-load instruments from low-frequency vibrations.
The AVI-200 is available in three standard sizes: AVI-200S, AVI-200M, and AVI-200XL.
| Model | Dimensions (W X D X H) Single Isolator Dimensions | Load Capacity (Two Isolator Platform) | System Weight (Two Isolator Platform) |
| AVI-200S | 4.7 x 14.1 x 4.4 inches / 120 x 360 x 112.5 mm | 700 Lbs / 318 Kgs | 43 Lbs / 19.5 Kgs |
| AVI-200M | 5.1 x 23.6 x 4.4 inches / 130 x 600 x 112.5 mm | 1,000 Lbs / 455 Kgs | 52 Lbs / 23.5 Kgs |
| AVI-200XL | 5.1 x 32.3 x 4.4 inches / 130 x 820 x 112.5 mm | 1,000 Lbs / 455 Kgs | 52 Lbs / 23.5 Kgs |
