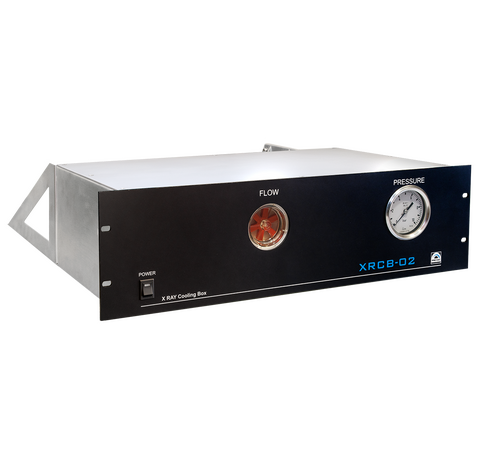

X-ray Cooling Controller XRCB-02

The XRCB-02 Cooling Controller is mainly used for cooling control of the X-ray sources.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Key Features

  • Cooling controller can handle up to two X-ray sources
  • Over pressure safety valve
  • Anti condensing internal pipework
  • High voltage resistance pipework for cooling water
  • Adjustable flowmeter and over pressure valve
  • Communication with cooling box is via fibre optic wire

Description

Water cools the X-ray source’s anode, which operates at high potential. All water cooling pipework is electrically isolated. The XRCB-02 cooling controller requires a water feed from a re-circulating chiller for correct operation. Water flow, temperature and pressure are continually monitored. Full functionality only with connection to the Emission Controller XR40B-EC.

Technical data

Supply voltage 230 VAC (with water pump)
110 VAC (with water pump)
110-240VAC (without water pump)
Water cooling max. 6 bar, 5 l/min.
prepared for de-ionized water
Dimensions 483 x 133 x 295 mm (W x H x D), 19′ rack mountable
Weight (approx.) 18 kg
