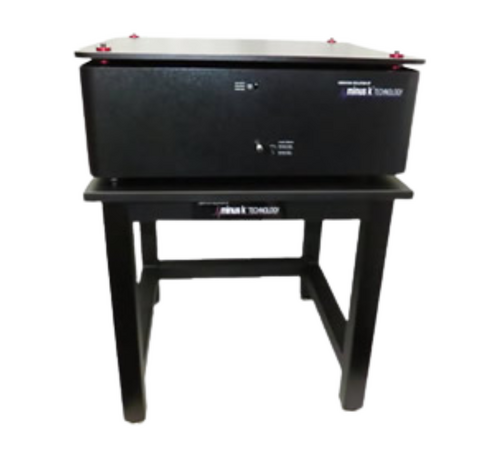

WS-4 Compact Vibration Isolation Table
A cost effective vibration isolation table for weight loads up to 1000 lb. and 1/2 Hz performance vertical and horizontal.
Key Features
- Cost effective
- Requires no air or electricity
- Compact and sturdy
Manufacturer
Minus K Technology
The Minus K® products, formerly sold under the trade name Nano-K®, represent an important enabling technology. By reducing building and floor vibrations to unprecedented levels, these systems enable vibration sensitive instruments and equipment to perform at unprecedented levels. They are used in a broad spectrum of applications including nanotechnology, biological sciences, semiconductors, materials research, zero-g simulation of spacecraft, and high-end audio. Minus K® is an OEM supplier to leading manufactures of scanning probe microscopes, micro-hardness testers and other vibration-sensitive instruments and equipment. Minus K® customers include private companies and more than 300 leading universities and government laboratories in 51 countries.
Performance
- Vertical natural frequency of 1/2 Hz or less can be achieved over the entire load range.
- Horizontal natural frequency is load dependent. 1/2 Hz or less can be achieved at or near the nominal load.
| Approximate payload weight range | |
|---|---|
| *Weight: Approx. 90 lb (41 kg) *Dimensions - an additional 0.675" taller |
|
| Model | Payload Range |
| 100WS-4 | 60 - 100 lb (27 - 48 kg) |
| 150WS-4 | 90 - 155 lb (41 - 70 kg) |
| 250WS-4 | 180 - 270 lb (82 - 123 kg) |
| 350WS-4 | 290 - 370 lb (132 - 168 kg) |
| 500WS-4 | 360 - 525 lb (164 - 239 kg) |
| 650WS-4 | 500 - 680 lb (227 - 309 kg) |
| 850WS-4* | 630 - 900 lb (285 - 408 kg) |
| 1000WS-4* | 890 - 1050 lb (403 - 476 kg) |
Specifications
| Table Weight | Approx. 134 lb (62 kg) |
| Isolator Weight | Approx. 80 lb (36 kg) |
| Stand Weight | Approx. 54 lb (25 kg) |
| Dimensions |
24" W x 24" D x 33" H (610mm W x 610mm D x 838mm H) |
