Ultra 45° | 45° Jumbo Diamond Knife
Acknowledged as the appropriate knife angle for routine sectioning of both biological and materials research specimens, it represents a balanced compromise between section quality and durability.
Manufacturer
DiATOME
DiATOME have been developing and manufacturing diamond knives since 1970. The DiATOME knives are the only knives that can cut all types of materials from biological to materials (hard and soft alike).
The Ultra 45° angle knives are used for routine sectioning (30nm - 200nm) of both biological and materials specimens. They can also be used for ultrathin/semi-thin sectioning (50nm - 1μm).
Quality Guarantee
Before delivery, each knife, new or re-sharpened, is subject to extensive testing. We can therefore guarantee perfect sectioning (in the respective thickness range) over the entire cutting edge.
Specifications
| Knife type | Knife angle | Size (mm) | Code | Thickness range (mm) | Boat type | Application |

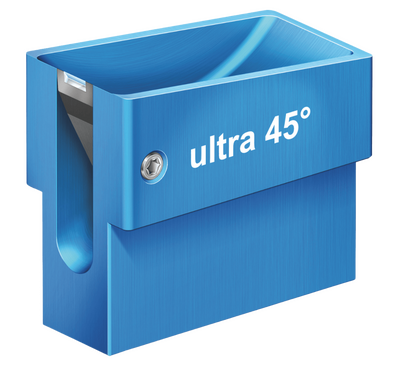

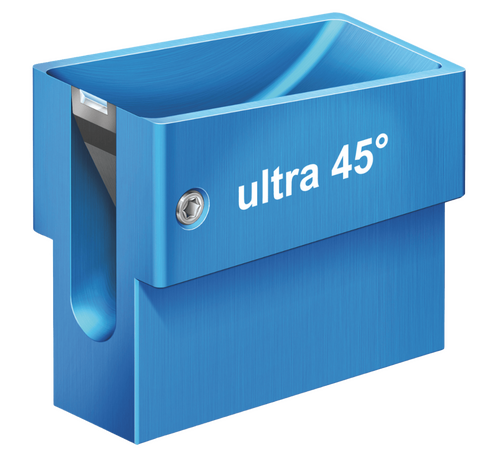

| Ultra 45° | 45° | 1.5 | DU4515 2.0 | DU4520 2.5 | DU4525 3.0 | DU4530 3.5 | DU4535 4.0 | DU4540 |
30 - 200 | Standard boat | Routine sectioning of biological and materials science specimens |

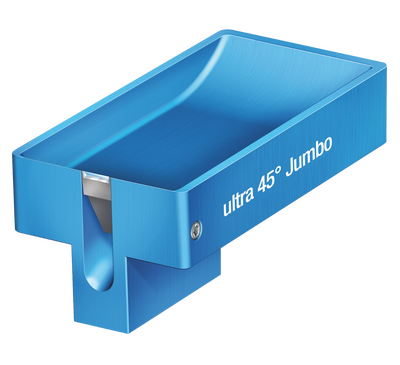

| Ultra 45° Jumbo | 45° | 3.0 | DUJ4530 | 50 - 200 | Jumbo boat | Section series for 3D reconstruction, STEM |
Applications
Ultra 45°
Routine sectioning of biological and materials science specimens
Ultra 45° Jumbo
Section series for 3D reconstruction, STEM
Downloads
Diamond Knives - Handling and Use
Diamond Knives Brochure
