Ultra 35° | Ultra 35° Jumbo | Ultra Semi Diamond Knife
A large number of researchers have recognised the advantages of 35° knives, in particular for sectioning biological specimens of all kind, non-homogenous specimens, non decalcified bone, dental material, etc.
Manufacturer
DiATOME
DiATOME have been developing and manufacturing diamond knives since 1970. The DiATOME knives are the only knives that can cut all types of materials from biological to materials (hard and soft alike).
The 35° angle knives have proved advantageous for sectioning the Lowicryls and non - homogenous specimens as well as non-decalcified bone, dental material etc. They are perfect for sectioning relatively soft materials research specimens including metals and polymers, as well as mixed specimens such as polymers filled with nanoparticles, brittle materials such as catalysts, crystals, semiconductors, etc.
The ultra 35° knife has demonstrated it’s usefulness as a standard knife for the majority of applications in both biological and materials research.
Quality Guarantee
Before delivery, each knife, new or re-sharpened, is subject to extensive testing. We can therefore guarantee perfect sectioning (in the respective thickness range) over the entire cutting edge.
Specifications
| Knife type | Knife angle | Size (mm) | Code | Thickness range (mm) | Boat type | Application |
| Ultra 35° | 35° | 1.5 | DU3515 2.0 | DU3520 2.5 | DU3525 3.0 | DU3530 3.5 | DU3535 4.0 | DU3540 |
30 - 200 | Standard boat | Biological and materials science specimens |
| Ultra 35° Jumbo | 35° | 3.0 | DUJ3520 | 50 - 200 | Jumbo boat | Section series for 3D reconstruction, STEM |
| Ultra semi | 35° | 3.0 | DU3530-semi | 50 - 500 | Standard boat | Alternating sectioning ultrathin semithin |
Applications

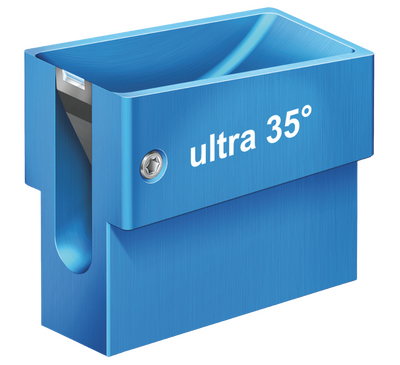

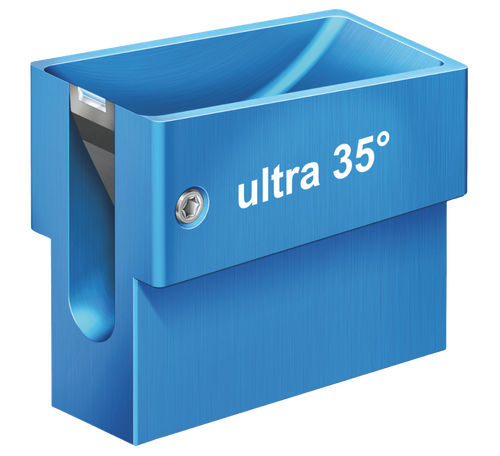

Ultra 35°
Biological and materials science specimens

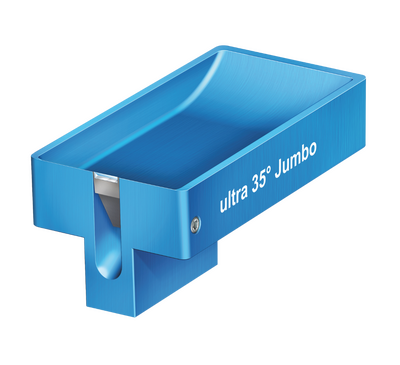

Ultra 35° Jumbo
Section series for 3D reconstruction, STEM

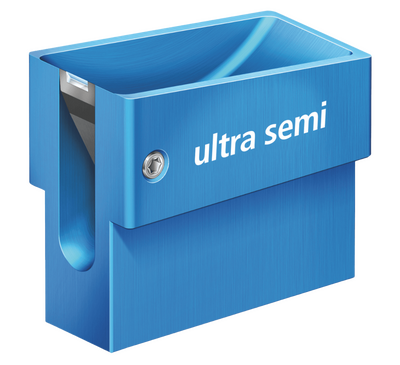

Ultra semi
Alternating sectioning ultrathin semithin
Downloads
Diamond Knives - Handling and Use
Diamond Knives Brochure
Ultra Semi Case Study
