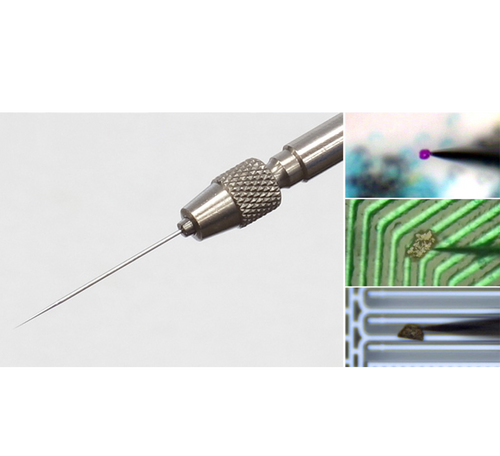

Tungsten Probe

For a wide range of purposes, such as poking, rubbing, scraping, picking up, and probing substances.



Manufacturer

Micro Support

Micro Support is a prominent Japanese company specialising in the precision manufacturing of micromanipulators tailored for precise micro sampling. At the forefront of technological innovation, they have developed AxisPro, a cutting-edge, all-in-one micromanipulator that sets the industry standard for precision and versatility. AxisPro exemplifies Micro Support's commitment to advancing microsampling techniques, empowering researchers and professionals with a tool that offers unparalleled accuracy and control at the microscopic level. With a strong dedication to quality and a reputation for excellence, Micro Support continues to play a crucial role in advancing scientific research and applications that demand precise micro manipulation.

Product Videos

Tungsten Probe Video 1

Tungsten Probe Video 2

Key Features

  • Wide range of purposes, such as poking, rubbing, scraping, picking up, and probing substances
  • Wide variety of tip diameters from 0.2μm to 30μm to satisfy different sampling requirements
  • The 10μm and 30μm probes are flexible and robust, ideal for manual operations
  • The 0.2μm or 0.5μm probes enable sampling of previously challenging extremely tiny objects and thin films using microscope-integrated or standalone micromanipulators
  • Use our “Probe Bender” for custom tip bending
  • We offer handles for both manipulators and handheld operations depending on your preference

Product Information

  • Substance on a surface Picking up a substance & transferring it
  • Collect few-um size substances
  • Pick-up buried foreign substance in resin.(5μm)
  • Isolation of foreign substance on film (~1μm)
  • Shaving foreign substance on glass, and then isolating it. (thickness  ~1μm)
  • Pick-up foreign substance on the surface of the metal. (thickness ~1μm)
  • Investigation of surface situation to touch them
  • Isolating object on the side of a minute level difference. (1~5μm)
  • Pick-up tiny object in a tiny hole.(1~5μm)
  • Isolating foreign substance on a trap of the filter. (1~5μm)
  • Marking a resin or analytical disks like KBr
  • Probing on a minute pad

Lineup Tungsten Probes (variation)

Tip diameter 0.2μm (10 pcs) TP-0002 For ≤2um foreign substances
Tip diameter 0.5μm (25 pcs) TP-0005 For ≤5μm substances
Tip diameter 1μm (25 pcs) TP-001 For ≮5μm substances
Tip diameter 5μm (25 pcs) TP-005 Can be used for manual manipulation
Tip diameter 10μm (25 pieces) TP-010 Can be used for manual manipulation
Tip diameter 30μm (25 pcs) TP-030 Can be used for manual manipulation
0.5,1,10,30μm, each 3pcs) TP-SET Tungsten Probes Set

Line-up

For manual manipulation TPH-10
Pin-vice type TPH-10 Use for manipulator

Applications

Toner of laser printer

An ultrafine probe that Can capture 2-5μm size substances

  • Sample:Toner of laser printer
  • Tool:Tungsten probe
  • Application:Capture/release of foreign substance

Ink on the glass

Tungsten probe of less than <1μm that effectively peels off objects as small as several μm

  • Sample:Ink on the glass
  • Tool:Tungsten probe
  • Application:Peel and remove ink on the glass

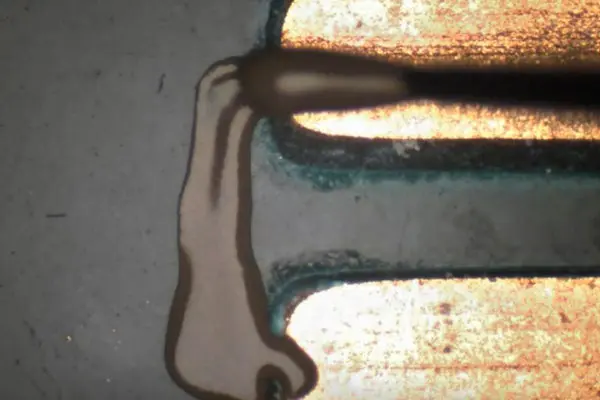

Printed circuit board

Repair wiring with conductive paste using tungsten probe

  • Sample:Printed circuit board
  • Tool:Tungsten probe
  • Application:Applying conductive paste.

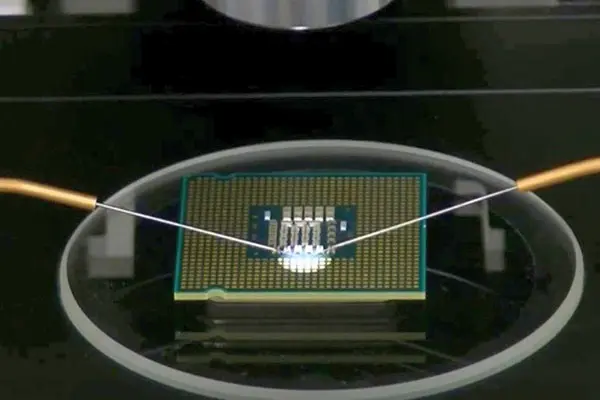

Printed circuit board

Axis Pro with tungsten probe enables to check conduction of a few µm level wiring pattern

  • Sample:Printed circuit board
  • Recommended equipment:Micro Probing Station
  • Tool:Electrode Holder and Tungsten probe
  • Application:Probing

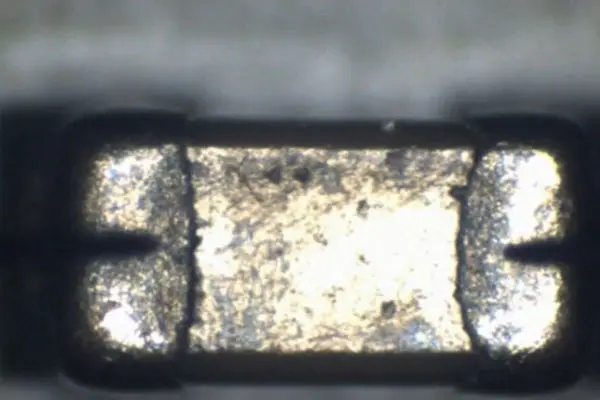

Printed circuit board

Resistance measurement of a few μm wiring patterns by setting tungsten probes on our micromanipulators

  • Sample:Printed circuit board
  • Recommended equipment:Micro Probing Station
  • Tool:Tungsten probe
  • Application:Probing

Colloid

Axis Pro enables easy preparation for AFM measurement easily

  • Sample:Colloid
  • Tool:Tungsten probe
  • Application:Attaching colloid to AFM tip with glue
