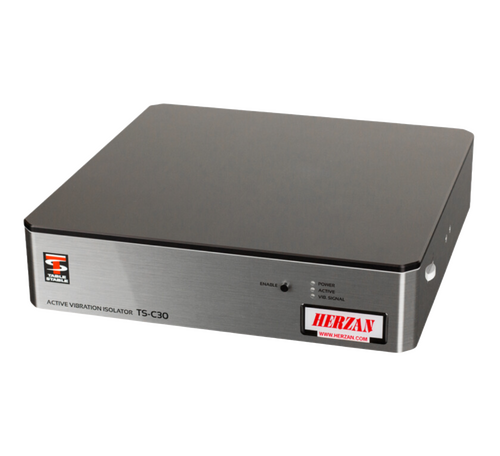

TS-C30
The TS-C series are compact dynamic antivibration systems, which offer isolation against all six translational and rotational vibration modes. Inertial feedback using piezoelectric force motors provides not only isolation from building vibrations, but also isolation from vibration sources placed on the system itself. This means, for example, that a delicate microscope isolated by the system will remain at rest despite forces being applied via the operator's hands.
Key Features
- The inherent stiffness of the systems, some 25 times greater than that of a 1 Hz resonance passive isolator, imparts excellent directional and positional stability
- The characteristics of an active isolation system are typified by the virtual lack of any low frequency resonance, a resonance which plagues all passive isolation systems
- The systems have been designed to offer excellent isolation even at frequencies as low as 2-3 Hz
- Power consumption is less than 2.5 W
- The design has been optimized to achieve best possible isolation for delicate instruments such as the Scanning Probe Microscopes (AFM, STM), Interferometers and other high resolution instruments
- The tables have proved to be extremely successful for supporting sensitive experiments
Manufacturer
Table Stable
The Table Stable Ltd: the world leader in active vibration isolation, and in high resolution, high contrast spectroscopy. Low power piezoelectric technology combined with Swiss quality sets their products apart from the competition.
Performance
The transmissibility graph represents the vibration isolation performance provided by all TS Series tables (in all six degrees of freedom).
Performance Details:
- Active vibration isolation from 0.7 – 1,000 Hz
- Passive vibration isolation from 1,000 Hz and beyond
- 90% vibration isolation at 3.5 Hz
- 99% vibration isolation at 10 Hz
- 99.9 vibration isolation at 20 Hz and beyond
- Up to 55 dB of vibration reduction beyond 20 Hz
Technical Specifications
| Frequency | 1.2 - 300 Hz |
| Load range | 0 - 40 kg |
| Dimensions | 300 x 300 x 70 mm (L x W x H) 11.8 x 11.8 x 2.75" |
| Isolation | Dynamic 1.2 Hz to 300 Hz, mainly passive at higher frequencies 11.8 x 11.8 x 2.75" |
| Transmissibility | above ~10 Hz transmissibility < 0.01 (-40 dB) |
| Correction Forces | ±8N vertical, ±4N horizontal |
| Static compliance | 27 µm/N |
| Maximum Load (load in centre) | 40 kg (88.18 lbs) |
| Weight | 9.2 kg (20.3 lbs) |
| Electrical | |
| Safety class | 1 |
| Power Consumption | max 2.50 W |
| Input Voltage | 100 – 240 VAC, 50 – 60 Hz |
| Monitor signal | A multiplexed signal for display on oscilloscope shows vibration levels with and without isolation – for diagnostic purpose only |
| Table Top | |
| Size | 300 x 300 mm |
| Material | Solid aluminium plate |
Applications
The vibration isolation performance of every TS table allows research instruments to maximise their resolution by removing ambient vibration noise from affecting their data. Essentially, any instrument sensitive to vibration noise less than 5 Hz can greatly benefit from the unique technology found within a TS Series table.
Common applications using TS platforms include:
- Atomic Force Microscopy
- Scanning Probe Microscopy
- Interferometry
- Profilometry
- In-Vitro Fertilisation
