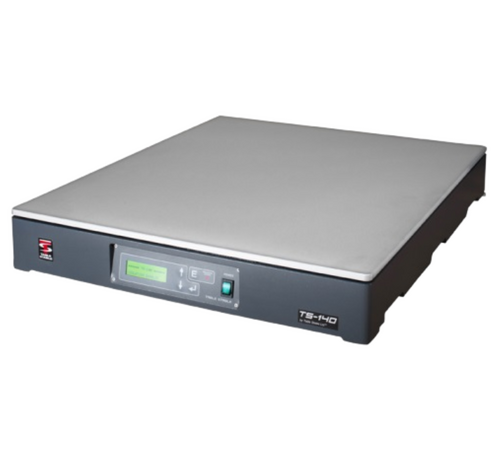

TS-140
The TS-140 combines proven technical excellence with elegant and user friendly design. This medium-sized dynamic vibration isolation system is ideally suited for all applications which need more space on the top plate than is achievable with the TS-150. Drilled top plates with holes in metric (M6 x 25mm) or non-metric grid allow mounting of various equipment on the isolated table top.
Key Features
- The isolation of the TS-140 begins at 0,7 Hz, increasing rapidly to 40dB beyond 10Hz
- The lack of any low frequency resonance means much better performance than with most common passive air damping approaches
- The inherent stiffness of the TS systems imparts excellent directional and positional stability
- The outstanding performance of the TS-140 includes all six translational and rotational vibration modes
- The precise automatic height adjustment mechanism stabilises the top plate at an optimised working level even after major changes of load
- A remote control allows the isolation to be switched “ON” and “OFF” externally
Manufacturer
Table Stable
The Table Stable Ltd: the world leader in active vibration isolation, and in high resolution, high contrast spectroscopy. Low power piezoelectric technology combined with Swiss quality sets their products apart from the competition.
Performance
The transmissibility graph represents the vibration isolation performance provided by all TS Series tables (in all six degrees of freedom).
Performance Details:
- Active vibration isolation from 0.7 – 1,000 Hz
- Passive vibration isolation from 1,000 Hz and beyond
- 90% vibration isolation at 3.5 Hz
- 99% vibration isolation at 10 Hz
- 99.9 vibration isolation at 20 Hz and beyond
- Up to 55 dB of vibration reduction beyond 20 Hz
Technical Specifications
| Frequency | 0.7 to 300 Hz active, passive above 300 Hz |
| Load range | 0 - 140 kg |
| Dimensions | 500 x 600 x 84 mm |
| Isolation | Active - 0.7 Hz to 300 Hz, Passive - above 300 Hz |
| Transmissibility | above 10 Hz transmissibility < 0.01 (-40 dB) |
| Correction Forces | +/- 8 N vertical +/- 4 N horizontal |
| Static compliance | Approx. 12 µm/N vertical Approx. 30-40 µm/N horizontal |
| Maximum Load (load in centre) | 140 kg |
| Size | 500 x 600 x 84 mm |
| Weight: | 28.5 kg |
| Electrical | |
| Safety class | 1 |
| Power Consumption | Maximum 10W 20W during load adjustment |
| Input Voltage | 115 - 230 V AC +/- 10% 50 - 60 Hz |
| Overload | The display indicates when the load is too heavy or severely unbalanced |
| Monitor signal | A multiplexed signal for display on oscilloscope shows vibration levels with and without isolation – for diagnostic purposes only |
| Front panel display menu | Displays instrumental status including: - height adjustment - isolation ON / OFF - overload - transportation locking - technical hot-line |
| Table Top | |
| Size | 500 x 600 mm |
| Material | Damped Aluminium sandwich construction Also available with tapped M6 on 25mm centres or customised |
Applications
The vibration isolation performance of every TS table allows research instruments to maximise their resolution by removing ambient vibration noise from affecting their data. Essentially, any instrument sensitive to vibration noise less than 5 Hz can greatly benefit from the unique technology found within a TS Series table.
Common applications using TS platforms include:
- Atomic Force Microscopy
- Scanning Probe Microscopy
- Interferometry
- Profilometry
- In-Vitro Fertilisation
