The Crypt

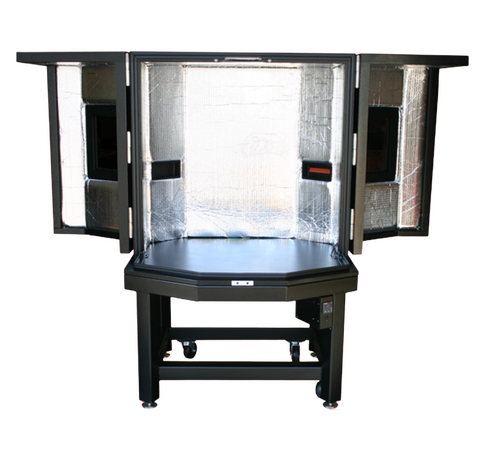

High performance acoustic enclosure for users requiring unfettered instrument access. The Crypt is a multifaceted enclosure, designed specifically to allow users with large instrument setups to access the perimeter of the instrument without having to move components around. The Crypt is suited for a wide variety of users, ranging from product test engineers to AFM researchers.
Key Features
- Maximum Isolation: Multiple variable density layers of sound-damping material ensure substantial isolation of high and low frequency acoustic noise.
- Sound Structure: Dense welded steel frame provides increased stiffness and reduces ground-borne vibration transference.
- Full Accessibility: Ease of access (1800 accessibility) and manoeuvrability (caster wheels) allows time-critical research to become seamless.
- Limitless Personalisation: Upgrades for environmental, usability and accessibility features available
Manufacturer
Herzan
Herzan are experts In environmental control providing active vibration control platforms and acoustic enclosures designed to shield sensitive instruments from acoustic, vibration, and EMI noise, even in the most challenging lab settings. Herzan are committed to delivering exact solutions for customer research needs, improving the overall performance of their environmental isolation systems. Trusted by leading scientists worldwide, Herzan stands for precision, reliability, and performance.
CN Tech are the exclusive Herzan distributor for:
United Kingdom and Ireland.

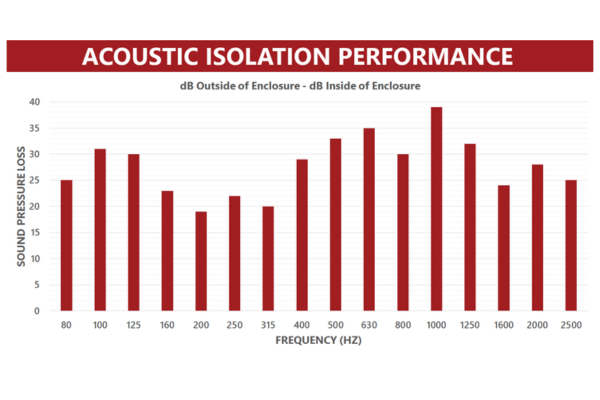

Performance Highlights
- 31.7 dB of sound loss @ 100 Hz
- 23 dB of sound loss @ 250 Hz
- 33 dB of sound loss @ 500 Hz
- 39 dB of sound loss @ 1000 Hz
- 25 dB of sound loss @ 2,500 Hz

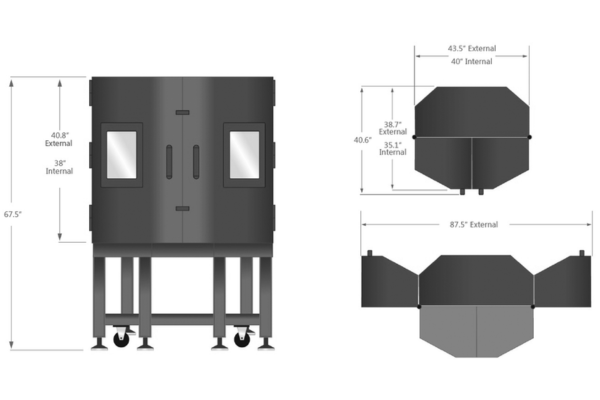

Dimensions
Internal Dimensions:
Imperial (W x D x H): 40 x 35.1 x 38 inches
Metric (W x D x H): 1016 x 891.5 x 965.2 mm
External Dimensions:
Imperial (W x D x H): 43.5 x 40.6 x 67.5 inches
Metric (W x D x H): 1,104.9 x 1031.2 x 1,714.5 mm
When determining the enclosure suitable for your instrument or application, verify the dimensions of the instrument/application do not exceed the internal dimensions of the enclosure. There are many standard enclosures sizes (with custom enclosure sizes available), allowing any instrument or application to receive research-grade acoustic isolation.
Downloads
The Crypt Data Sheet
Acoustic Enclosure User Guide
Options
Popular Upgrades
In addition to the Crypt’s standard features, additional upgrade features can be added, making the Crypt versatile in addressing specific research needs for any user.
Popular upgrade features include:
