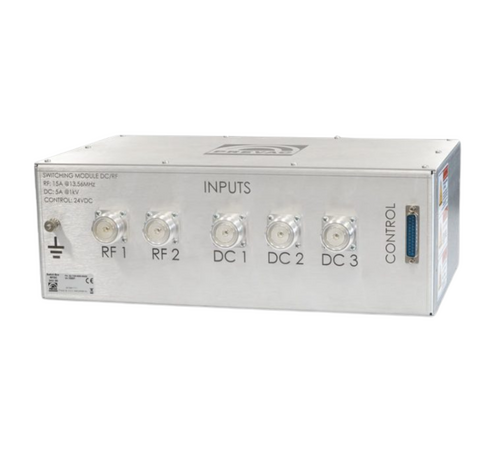

Switchbox
SWITCHBOX DC/RF – is a stand-alone unit used to switch the output of RF power generators or DC sputter power supplies between multiple outputs.
Manufacturer
Prevac
Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.
Key Features
- Switching configuration is fully customised with up to 5 power supplies and 12 magnetron sources
- Maximum of 16 inside connections are possible
Technical data
| Max number of inputs | 2x RF input, 3x DC/Pulsed input |
| Max number of outputs | 12 |
| Input connectors | Standard 7/16 |
| Output connectors | Standard 7/16 |
| Control connector | DSUB25 male |
| Control part supply voltage | 24V DC |
| Maximum DC input voltage | 1000V DC |
| Maximum DC input current | 5A |
| Maximum RF Frequency | 13, 56 MHz |
| Maximum current at 13.56Mhz | 15A |
Applications
Switching of DC/RF power generators between multiple outputs
