Soft ResiScope

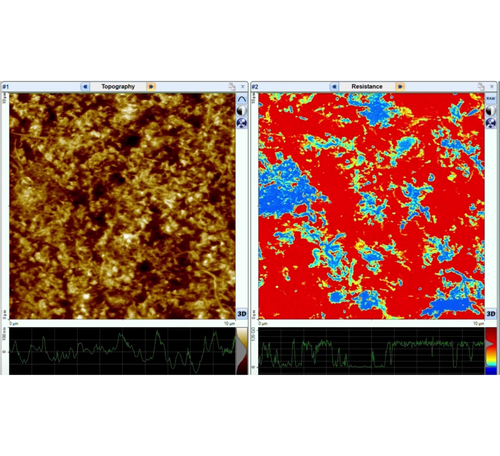

Soft ResiScope™ is an innovative AFM mode that enables true quantitative resistance and current measurements on soft and fragile conductive samples. This unique technology combines the benefits of intermittent contact modes with the precision of ResiScope measurements, opening new possibilities for electrical characterisation of sensitive materials.
Manufacturer
CSI
CSInstruments is a French scientific equipment manufacturer specialised in the conception of Atomic Force Microscope and options designed for existing AFM (Nano-Observer AFM, Resiscope™, High Voltage Amplifier, Magnetic modules). The product range proposed by CSInstruments is designed and manufactured to help the scientific community to achieve nanometre performances that meet the research needs and requirements for actual and future nanoscience applications.
CSInstruments was founded by a team of experts working in AFM field for more than 20 years, starting as pioneer with some historical manufacturers. CSInstruments activity is also based on a qualified and dynamic team, experienced in the fields of mechanics, electronics and data processing. This expertise ensures innovation and performance in the production of AFM and achieves an excellent price/performance ratio!
Key Features
- Non-Destructive Measurements: Ideal for fragile and soft conductive samples
- Wide Measurement Range: Resistance from 10² to 10¹² ohms
- No Friction: Prevents sample damage and tip wear
- Constant Force: Ensures quantitative electrical measurements

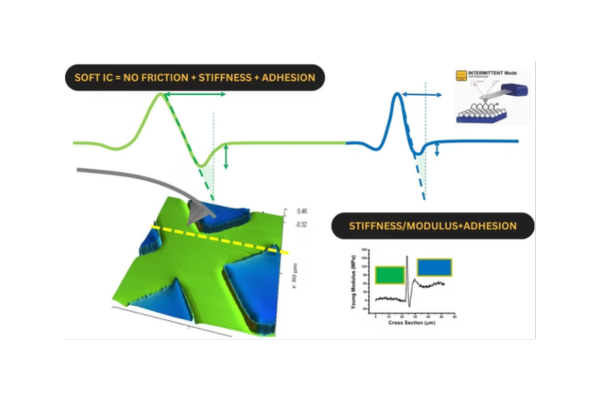

- Intermittent Contact: Optimises electrical measurement while preserving tip and sample integrity
How does Soft ResiScope work?
Soft ResiScope operates on an intermittent contact principle:
-
The AFM probe makes brief, controlled contact with the sample
-
During contact, a constant force is applied, allowing precise resistance and current measurements
-
The tip is then retracted and moved to the next measurement point
-
This cycle repeats, creating a comprehensive map of electrical properties without damaging the sample
Quantitative Measurements
Soft ResiScope provides quantitative measurements comparable to standard ResiScope in contact mode:

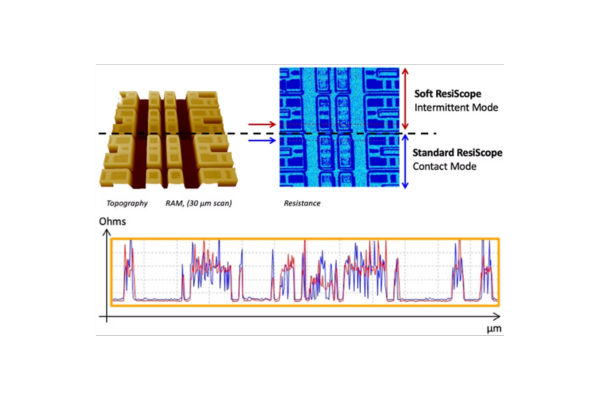

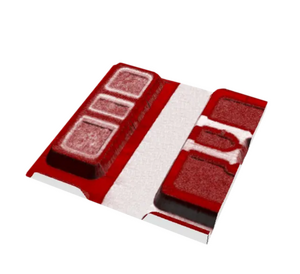

- Identical Results: Topography and resistance signals match between Soft ResiScope and contact mode ResiScope on standard electrical samples (e.g., SRAM)
- High Resolution: Maintains lateral resolution while ensuring quantitative measurements
Soft ResiScope vs. Standard ResiScope
Soft ResiScope vs. Oscillating/Contact Modes
- Sample Preservation: Prevents surface damage common in contact mode
- Equivalent Results: Produces data comparable to oscillating mode on fragile samples
- Versatility: Suitable for a wide range of materials, from polymers to biological samples
Specifications
| Measurement Range | 10² to 10¹² ohms |
| Compatibility | Nano-Observer AFM systems |
| Supported Modes | Intermittent contact |
| Data Output | Simultaneous topography and electrical property mapping |
Applications
Materials Science
The Nano-Observer AFM series is tailored for materials science applications, delivering precise nanoscale analysis of surface morphology, mechanical properties, and electrical behaviour. Equipped with advanced techniques such as ResiScope and HD-KFM III, it supports the investigation of a wide range of materials, from nanocomposites to functional coatings. Ideal for both research and industrial development, it ensures reliable, high-resolution results to drive innovation in materials engineering.
Semiconductors
The Nano-Observer AFM series is a powerful tool for semiconductor research, offering unparalleled precision in surface morphology, electrical characterisation, and mechanical property analysis at the nanoscale. Utilising cutting-edge techniques such as HD-KFM III and ResiScope, it enables detailed studies of semiconductor materials, from advanced device fabrication to quality assurance. Designed for both research and industrial applications, it ensures accurate, high-resolution data to drive innovation in semiconductor technology.
Biology
The Nano-Observer AFM series provides exceptional capabilities for analysing biological samples, offering nanoscale insights into surface morphology, mechanical properties, and molecular interactions. With advanced techniques like Soft ResiScope and liquid imaging modes, it ensures precise characterisation of delicate biological structures, from cells to biomolecules. Designed for both research and applied science, it delivers reliable, high-resolution data essential for breakthroughs in biotechnology and life sciences.
Polymers
The Nano-Observer AFM series delivers high-precision polymer analysis, revealing surface morphology, mechanical properties, and electrical characteristics at the nanoscale. With advanced techniques like Soft ResiScope and HD-KFM, it supports applications from polymer development to quality control, ensuring reliable, high-resolution results for research and industry.
2D Materials
The Nano-Observer AFM series is a cutting-edge solution for the analysis of 2D materials like graphene, hBN, and transition metal dichalcogenides. It offers unparalleled precision in characterising surface morphology, mechanical properties, and electrical behaviour at the nanoscale. With advanced modes such as HD-KFM III and ResiScope, it enables detailed investigations of these materials' unique properties, supporting both fundamental research and industrial development in nanotechnology and advanced material applications.
Energy Materials
The Nano-Observer AFM series excels in the analysis of renewable energy materials, offering high-precision characterisation of surface morphology, electrical properties, and mechanical behaviour at the nanoscale. With advanced techniques like HD-KFM III and ResiScope, it is ideal for studying photovoltaics, battery materials, and energy storage systems. Supporting both research and industrial applications, it provides reliable, high-resolution data to accelerate innovation in sustainable energy technologies.
