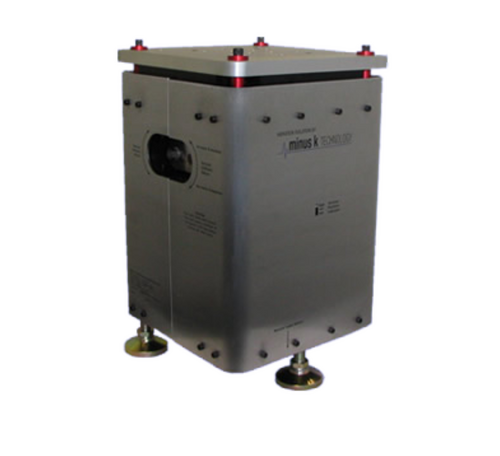

SM-1 Low Frequency Vibration Isolators
Low frequency vibration isolator for weight loads from 500 to 4200 lbs. and 1/2 Hz performance vertical and horizontal.
Key Features
- Requires no air or electricity
- Offers very-low frequency isolation performance for payloads of many thousands of pounds
- Can be used alone or with any number of additional units to achieve higher capacity systems
- Can be customised to achieve user specific needs
- Can be placed on pedestals to increase the height of the isolation system
Manufacturer
Minus K Technology
The Minus K® products, formerly sold under the trade name Nano-K®, represent an important enabling technology. By reducing building and floor vibrations to unprecedented levels, these systems enable vibration sensitive instruments and equipment to perform at unprecedented levels. They are used in a broad spectrum of applications including nanotechnology, biological sciences, semiconductors, materials research, zero-g simulation of spacecraft, and high-end audio. Minus K® is an OEM supplier to leading manufactures of scanning probe microscopes, micro-hardness testers and other vibration-sensitive instruments and equipment. Minus K® customers include private companies and more than 300 leading universities and government laboratories in 51 countries.
Performance
- Vertical natural frequency of 1/2 Hz or less can be achieved over the entire load range.
- Horizontal natural frequency is load dependent. 1/2 Hz or less can be achieved at or near the nominal load.
| Approximate payload weight range | |
|---|---|
| *Contact us for custom payload ranges | |
| Model | Payload Range* |
| 700SM-1 | 110 - 750 lb (50 - 340 kg) |
| 1200SM-1 | 675 - 1330 lb (315 - 603 kg) |
| 1500SM-1 | 800 - 1550 lb (363 - 703 kg) |
| 1900SM-1 | 1200 - 1950 lb (544 - 885 kg) |
| 2400SM-1 | 1800 - 2500 lb (817 - 1134 kg) |
| 2900SM-1 | 2400 - 3000 lb (1089 - 1361 kg) |
| 3400SM-1 | 2800 - 3600 lb (1270 - 1633 kg) |
| 4000SM-1 | 3400 - 4200 lb (1542 - 1905 kg) |
Specifications
| Weight | Approximately 155 lb (70.3 kg) |
| Dimensions |
13" W x 13" D x 20.5" H (330mm W x 330mm D x 521mm H) |
