PureSolv Micro Multi Unit

The PureSolv Micro Solvent Purification System is designed as both an economic and space-friendly alternative to the larger more traditional free-standing units, common on the market today.

Manufacturer

Inert

Inert design and deliver the most dependable standardised and custom-built atmosphere Glove Boxes, Gas Management Systems, and Solvent Purification Systems at the most competitive prices. They also offer a full inventory of replacement parts and supplies. Since 1981, they have been the glove box and solvent system design/manufacturer who puts quality, flexibility, and customer service first.  As a result, their solutions and after-sales support are unmatched.

Key Features

  • Dedicated solvent drying and dispensing station
  • Can be placed on a bench top, inside a fume hood or flammable cabinet as desired by the researcher in charge
  • Facilitates proper air-free dispensing techniques using our integrated gas and vacuum manifold system
  • Includes customer’s choice of 24/40, 14/20, 29/32 stainless steel glassware adaptors as standard
  • Small capacity 4 litter reservoirs include custom designed, leak tight clamp style cap and Swagelok quick disconnect valves for easy handling and refilling
  • Bonded and grounded to remove hazards associated with electro static discharge and ensure a safe operating environment

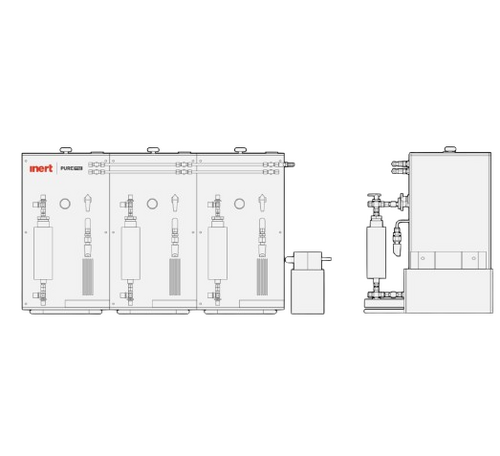

Multiple Unit System

Modular benchtop design
System dimensions 11.9″ (302.3 mm) Wide x 17.3″ (439.4 mm) Deep x 22.3 (566.4 mm) High
Width will vary depending on number of units connected together
Enclosure Epoxy powder-coated steel
RAL 9001

Connections

Vacuum connection Stainless steel hose barb
Systems connected together via a single vacuum line
Inert gas connection 1/4″ stainless steel compression fitting
Systems connected together via a single vacuum line
Tubing 304 stainless
Fittings 316 stainless steel compression
Main system pressure relief 7 psi
Electrical ground Copper cable

Drip Tray

Epoxy powder-coated steel
6.0″ (152.4 mm) Wide x 6.0″ (152.4 mm) Deep x 1.0″ (25.4 mm) High
RAL 9001

Solvent Reservoir

304 stainless steel
4L volume
2″ sanitary flange for refilling

Degas

Quick disconnect fitting

Vent

Quick disconnect fitting

Solvent Transfer Line

Quick disconnect fitting

Dispensing

Valve bracket 304 stainless steel
Evacuate/refill/dispense 5-way valve for ease of use and safety
Eliminates possibility of dispensing solvent into the vacuum pump
Solvent metering valve Stainless steel needle valve
Collection flask inert gas refill Individual low pressure regulator
7 psi pressure relief valve
Check valve
Collection flask connection joint Stainless steel 24/40 is standard
Other sizes available

Single Purifying Column Design

Drying column 2.5″ (63.5 mm) OD x 7.0″ (177.8 mm) L
Internal Volume = 0.5L
Inlet/outlet valves 3-way 1/4″ stainless steel
Allows easy troubleshooting
Drying capacity 80L based on HPLC grade solvent

Plumbing

1/4″ 304 stainless steel piping

Particle Filter

Stainless steel, 7 micron

Vacuum Pump

Vacuum pump Solid Teflon and Kalrez for maximum solvent compatibility
Pumping speed 20L/min
Ultimate vacuum 6 Torr

Options

Stainless Steel Dispensing Heads

Stainless Steel 29/32 Dispensing Head

Quick Disconnect Adapter

Stainless Steel 19/24 Dispensing Head

Stainless Steel 14/20 Tapered Joint

Stainless Steel 24/29 Dispensing Head

Stainless Steel 28/12 Ball Joint with Viton O-Ring

Stainless Steel 24/40 Dispensing Head

Luer Lock Needle Adapter
