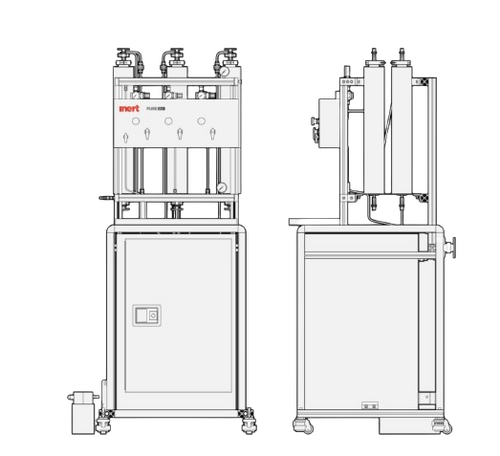

PureSolv MD3
PureSolv MD3 has a unique dispensing system for easy access to anhydrous solvent by multiple users. The multi-way valve design is considered the most efficient and safest dispensing system on the market today.
Manufacturer
Inert
Inert design and deliver the most dependable standardised and custom-built atmosphere Glove Boxes, Gas Management Systems, and Solvent Purification Systems at the most competitive prices. They also offer a full inventory of replacement parts and supplies. Since 1981, they have been the glove box and solvent system design/manufacturer who puts quality, flexibility, and customer service first. As a result, their solutions and after-sales support are unmatched.
Key Features
- Dispensing system facilitates proper air-free dispensing techniques using the integrated manifold system
- Includes customer’s choice of 24/40, 14/20, 29/32 stainless steel glassware adaptors as standard
- Allows for multiple users to operate an air-free dispensing system simultaneously without any risk of cross diffusion of solvent
- The 5 gallon reservoirs include custom designed, leak tight screw cap and Swagelok quick disconnect valves for easy handling and refilling
- Bonded and grounded to remove hazards associated with electro static discharge
- Can purify up to 800 litres of solvent before column replacement or regeneration is necessary
- Available in free-standing, bench top or wall mounted models
Dispensing
| Valve bracket | 304 stainless steel |
| Evacuate/refill/dispense | 5-way valve for ease of use and safety |
| Eliminates possibility of dispensing solvent into the vacuum pump | |
| Solvent metering valve | Stainless steel needle valve |
| Collection flask inert gas refill | Individual low pressure regulator, 7 psi pressure relief valve |
| Collection flask connection joint | Stainless steel 24/40 is standard, other sizes available |
| Horizontal clamping post for collection flask | Height adjustable |
3-Solvent System
| System dimensions | 37.3″ (947.4 mm) Wide x 32.9″ (835.7 mm) Deep x 76.6″ (1945.9 mm) High |
| Frame | Extruded aluminium |
| Vacuum manifold | Integrated in frame |
| Analog vacuum gauge | 0 to -30″ Hg |
| Inert gas manifold | Integrated in frame |
| Analog pressure gauge | 0-100 psi |
| Main system pressure isolation | 2-way 1/4″ stainless steel ball valve |
| Main system pressure relief | 70 psi |
| Electrical ground | Fully bonded system, copper plate for attachment to building ground, retractable grounding reel for solvent reservoir filling |
Dual Purifying Column Design
| Drying columns | 4″ (101 mm) OD x 25″ (635 mm) L, Internal Volume = 1 US gallon (4L) |
| Inlet/outlet valves | 3-way 1/4″ stainless steel, allows easy troubleshooting |
| Drying capacity | 800L based on HPLC grade solvent |
Drip Tray
| 304 stainless steel |
Plumbing
| 1/4″ 304 stainless steel piping |
Particle Filter
| Stainless steel, 7 micron |
Solvent Reservoir
| 304 stainless steel |
| 17L volume |
| 2″ sanitary flange for refilling |
| Colour-coded quick disconnect for solvent out |
| Regulator with quick disconnect for inert gas push |
Flammable Storage Cabinet
| Integrated in the lower section of the system frame |
| Holds up to 3 x 17L reservoirs |
Vacuum Pump
| Vacuum pump | Solid Teflon and Kalrez for maximum solvent compatibility |
| Pumping speed | 20L/min |
| Ultimate vacuum | 6 Torr |
Options
Stainless Steel Dispensing Heads
Stainless Steel 29/32 Dispensing Head
Quick Disconnect Adapter
Stainless Steel 19/24 Dispensing Head
Stainless Steel 14/20 Tapered Joint
Stainless Steel 24/29 Dispensing Head
Stainless Steel 28/12 Ball Joint with Viton O-Ring
Stainless Steel 24/40 Dispensing Head
Luer Lock Needle Adapter
