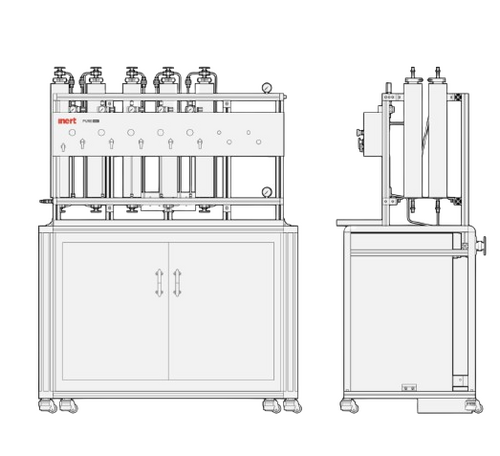

PureSolv EN 1-7 Base
The European designed PureSolv-EN™ is one of Inert’s technological innovations in the design, manufacture and distribution of safe and reliable systems for solvent storage, purification, and processing.
Manufacturer
Inert
Inert design and deliver the most dependable standardised and custom-built atmosphere Glove Boxes, Gas Management Systems, and Solvent Purification Systems at the most competitive prices. They also offer a full inventory of replacement parts and supplies. Since 1981, they have been the glove box and solvent system design/manufacturer who puts quality, flexibility, and customer service first. As a result, their solutions and after-sales support are unmatched.
Key Features
- Minimisation of the risk of fire from stored flammable materials
- Protection of the flammable materials in the event of fire
- Minimisation of emitted vapours to the outside environment and retention of any leaks inside the cabinet
Up to 7-Solvent System
| System dimensions | 57.3″ (1455.4mm) Wide x 36.7″ (932.2mm) Deep x 76.6″ (1945.9mm) High |
| Frame | Extruded aluminium |
| Vacuum manifold | Integrated in frame |
| Analog vacuum gauge | 0 to -30″ Hg |
| Inert gas manifold | Integrated in frame |
| Analog pressure gauge | 0-100 psi |
| Main system pressure isolation | 2-way 1/4″ stainless steel ball valve |
| Main system pressure relief | 70 psi |
| Electrical ground | Fully bonded system, copper plate for attachment to building ground, retractable grounding reel for solvent reservoir filling |
| Lockable casters for mobility |
PureSolv MD-EN Base
| Can be configured for 1-7 solvents |
| EN-14470 flammable storage cabinet integrated in the stand |
Dispensing
| Valve bracket | 304 stainless steel |
| Evacuate/refill/dispense | 5-way valve for ease of use and safety |
| Eliminates possibility of dispensing solvent into the vacuum pump | |
| Solvent metering valve | Stainless steel needle valve |
| Collection flask inert gas refill | Individual low pressure regulator |
| 7 psi pressure relief valve | |
| Check valve | |
| Collection flask connection joint | Stainless steel 24/40 is standard, other sizes available |
| Horizontal clamping post for collection flask | Height adjustable |
Dual Purifying Column Design
| Drying columns | 4″ (101 mm) OD x 25″ (635 mm) L, Internal Volume = 1 US gallon (4L) |
| Inlet/outlet valves | 3-way 1/4″ stainless steel, allows easy troubleshooting |
| Drying capacity | 800L based on HPLC grade solvent |
Drip Tray
| 304 stainless steel |
Plumbing
| 1/4″ 304 stainless steel piping |
Particle Filter
| Stainless steel, 7 micron |
Solvent Reservoir
| 304 stainless steel |
| 17L volume |
| 2″ sanitary flange for refilling |
| Colour-coded quick disconnect for solvent out |
| Regulator with quick disconnect for inert gas push |
Flammable Storage Cabinet
| EN14470-1 cabinet |
| 90 minute rating |
| Integrated in the lower section of the system frame |
| Holds up to 7 x 17L reservoirs |
Vacuum Pump
| Vacuum pump | Solid Teflon and Kalrez for maximum solvent compatibility |
| Pumping speed | 20L/min |
| Ultimate vacuum | 6 Torr |
Options
Stainless Steel Dispensing Heads
Stainless Steel 29/32 Dispensing Head
Quick Disconnect Adapter
Stainless Steel 19/24 Dispensing Head
Stainless Steel 14/20 Tapered Joint
Stainless Steel 24/29 Dispensing Head
Stainless Steel 28/12 Ball Joint with Viton O-Ring
Stainless Steel 24/40 Dispensing Head
Luer Lock Needle Adapter
