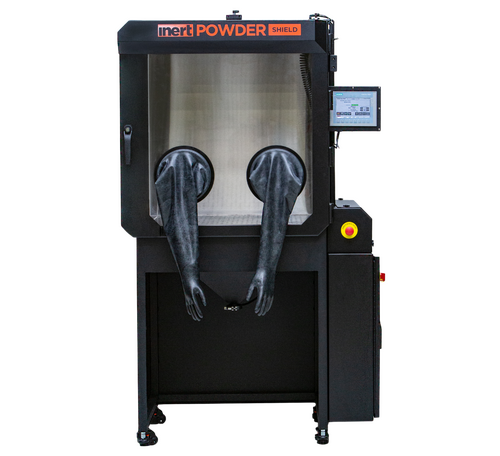

PowderShield™
PowderShield™ is the culmination of over 40 years of experience in inert engineering and creating perfectly sealed environments for powder handling and user protection. Developed in partnership with experts in additive manufacturing (AM), our PowderShield depowdering station has been developed to provide operators with the highest level of protection while enhancing the productivity of the additive manufacturing workflow.
Key Features
- Large 7" touch screen
- Gas gun for powder blast
- Dual axis rotating table
- Hepa filter & cyclonic filtration
- Inflatable Gasket
- Emergency Stop
- Built with a repeatable hermetic seal, hinged window panel, LED lighting, and stand
- After powders have been removed, the gravity-fed chute collects and contains powders for reuse
Manufacturer
Inert
Inert design and deliver the most dependable standardised and custom-built atmosphere Glove Boxes, Gas Management Systems, and Solvent Purification Systems at the most competitive prices. They also offer a full inventory of replacement parts and supplies. Since 1981, they have been the glove box and solvent system design/manufacturer who puts quality, flexibility, and customer service first. As a result, their solutions and after-sales support are unmatched.

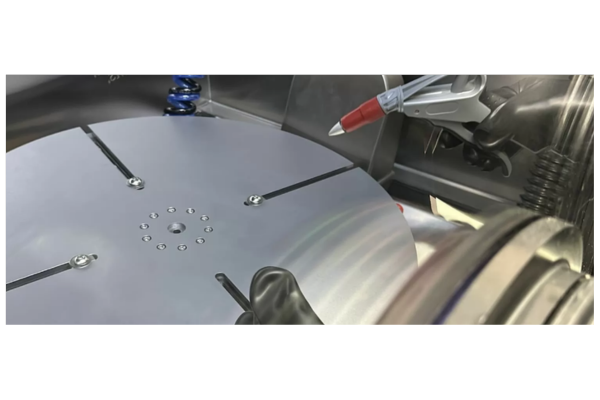

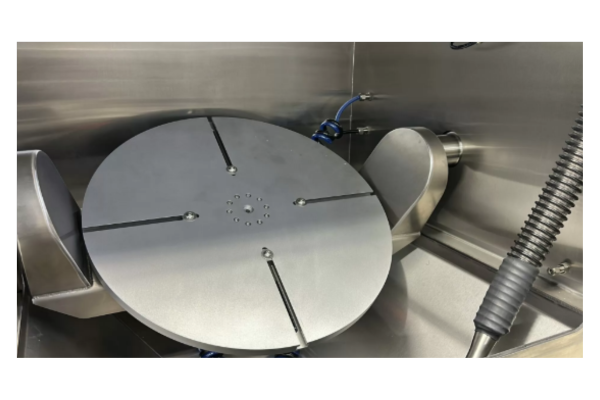

PowderShield™ Adjustable Vibration Depowdering table
The PowderShield™ Rotating Table is equipped with an adjustable pneumati vibration feature, designed to efficiently remove excess powder from 3D printed parts. The dual axis rotating and tilting table allows the operator to easily access all sides of the printed part, providing full 360-degree rotation as well as up-and-down movement.
Designed to optimally fit a standard 300 x 300 mm build plate, PowderShield™ can nevertheless accommodate larger plates depending on the geometry of your parts.
This versatile design ensures that even complex or oversized parts can be processed with ease.
PowderShield™: Streamline Your Workflow – Recycle, Reuse, Print Again
PowderShield™ design is equipped with a gravity-fed chute to efficiently collect excess powders. Using an integrated cyclonic filtration system, PowderShield™ captures the excess powder in the filtration unit, allowing it to be easily recycled and reused for future prints.
For more precise powder removal, the system includes a high-flow vacuum hose that lets operators manually direct the suction to specific areas, ensuring accurate removal of excess powder. For difficult-to-reach areas, the gas gun (compatible with either nitrogen or argon) allows users to blast away powder and clean the surface of the printed part effectively.
The recirculation module circulates inert gas to create a unidirectional flow within the enclosure reducing suspended particle, minimizing powder accumulation on the window.
