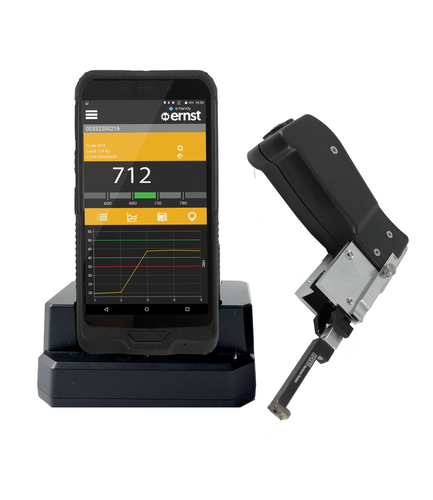

Portable hardness tester e-handy
The e-handy portable hardness tester is the ideal solution for those seeking precision and reliability in hardness measurements. Based on the patented ESATEST® principle by ERNST, e-handy uses an innovative testing method that leverages the correlation between penetration depth and residual electrical resistance. This advanced method generates a precise measurement curve as the applied load varies, allowing the hardness tester to accurately determine hardness by comparing the curve with a previously acquired calibration.
Key Features
- Principle based on the measurement of electrical resistance - Tests in points inaccessible to traditional hardness testers: gears, couplings, cavities, interiors, weld seams, HAZ (Heat Affected Zone)
- 1 diamond indenter for the entire range of metals - Simplicity and speed of the testing process
- Continuous measurement of hardness at various loads - Immediate evaluation of the surface heat treatment - A single tool --> Various detections
- ACCREDIA certification (ILAC MRA-Mutual Recognition Arrangements) - Offers a competitive advantage in markets where certification is required
Manufacturer
Ernst
Ernst have been driving the research and innovation in hardness testing for over 60 years. Ernst produce portable, automatic and bench-top hardness testers, covering all hardness testing requirements, together with products that extend their functionalities such as indentation readers and case depth analysers.
Technical Details
| Power supply | 100 - 240 Volt |
| Loads | Real time continuous progressive application with acquisition of load values and electrical resistance from 1kgf to 10kgf (9.81N to 98.1N) |
| Norms and certifications | DIN 50158 | ASTM E-110 | ACCREDIA certificate upon request |
| Minimum measurable diameter | < 5 mm - it is possible to execute tests in small cavities with the use of special penetrators |
| Output interfaces | Tablet with micro USB - micro TF slot - WiFi - Bluetooth - gps |
| Reading | Tablet display touch-screen 5.9" |
| Languages | Italian, English, German, Other languages on request |
| Load application method | Manual |
| Weight | Mechanical unit 670g Electronic unit 380g |
| Working principle | ESATEST® Pat ERNST - by means of electrical resistance |
| Standard scales | DRE - HB10 - HB30 - HB5 - HRA - HRB - HRC - HRF - HV - N/mm² |
| Working area dimensions | 2mm x 2mm |
| Memory | 16GB |
