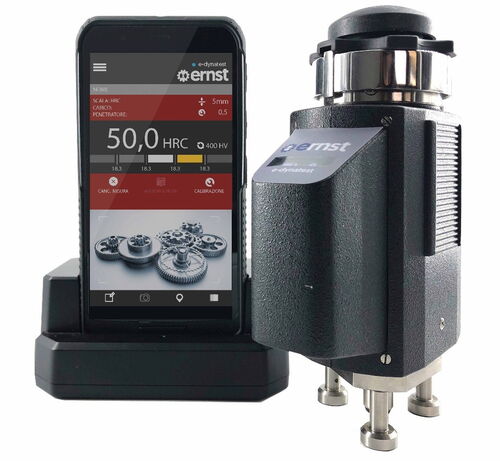

Portable hardness tester e-dynatest
The e-dynatest stands out for its high test load of 100 kgf (980 N), making it a powerful tool for precise hardness measurements. This high test load ensures reliable and consistent measurements, as the testing process is unaffected by the surface condition of the material. It is particularly ideal for testing large pieces that are difficult to move, as it can be used directly on-site.
Key Features
- Portable miniaturised Rockwell hardness tester - On-site measurement of pieces of any size
- Adjustable in all directions - Savings on handling and cutting costs
- High test load (100 kgf) - Two tools in one: measurements are comparable to a bench-top hardness tester
- Measurement via a single manual pressure - Speed and simplicity of the measurement processes
- ACCREDIA certification (ILAC MRA-Mutual Recognition Arrangements) - Offers a competitive advantage in markets where certification is required
Manufacturer
Ernst
Ernst have been driving the research and innovation in hardness testing for over 60 years. Ernst produce portable, automatic and bench-top hardness testers, covering all hardness testing requirements, together with products that extend their functionalities such as indentation readers and case depth analysers.
Overview

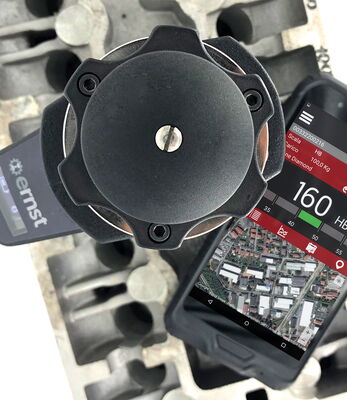

The e-dynatest allows for quick, precise, and straightforward hardness testing, with results displayed directly on the 6-inch tablet display. The wireless connection ensures that data is captured without delay and can be evaluated in real-time. The Android app allows test results to be not only stored but also efficiently managed, shared, and printed. The combination of high test load, precision, and user-friendliness makes the e-dynatest an excellent choice for on-site hardness testing.
Technical Details
| Power supply | 100 - 240 Volt |
| Loads | 100 kgf (980 N) |
| Norms and certifications | DIN 50157 | ASTM E-110 | ACCREDIA certificate upon request |
| Minimum measurable diameter | 25 mm standard 12 mm with special penetrator shroud |
| Selectable functions | Scales, tollerances, calibration, test load, stats, language, sequence, files, materials, partial average, clock, auto off timer, add notes, barcode scanner, geo-localization |
| Output interfaces | Wifi, Bluetooth, micro USB, micro SD slot |
| Reading | Tablet display touch-screen 6" |
| Languages | Italian, English, German, Other languages on request |
| Load application method | Manual |
| Weight | Mechanical unit 2050g Electronic unit 360g |
| Preload | 3,45 kgf (33.8 N) |
| Accuracy | HRC 0,3 HB < 1% |
| Working principle | Rockwell |
| Standard scales | HRC (10-70) - 1HB30 (160-700) - 2HB30 (100-500) |
