Onyx Series
An elegant combination of high-value and high-performance. The Onyx Series vibration isolation tables are designed to isolate sensitive microscopes and research equipment from vibrations caused by foot traffic, HVAC systems, nearby operating machinery, and more. The Onyx Series is the perfect solution for users needing a low-profile table that can integrate seamlessly onto an existing table top, saving valuable lab space for future research equipment.
Manufacturer
Herzan
Our core strategy is to provide carefully articulated vibration, acoustic, and EMI isolation solutions to the global research community. We are committed to delivering exact solutions for customer research needs, improving the overall performance of our environmental isolation systems, and providing the best customer experience possible for all users. In the end, what is important for us is to have the researcher focus on what matters most: their research (and not their isolation solution). We have been privileged to work with some of the most innovative individuals in the scientific research community and are proud to help advance the research performed by our customers.
CN Tech are the exclusive Herzan distributor for:
United Kingdom, Republic of Ireland and Europe.
Key Features
- Premium Isolation Technology
- Contaminate Free Operation
- Low Profile Design
- Simple to Set Up & Use
- Requires Minimal Maintenance
- Enclosure Integration Options
- Research-grade quality
Performance Highlights

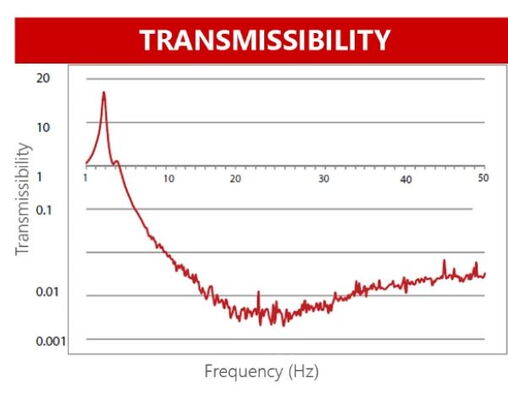

- Vibration isolation Starting at 4.5 Hz
- 90% vibration isolation at 6.5 Hz
- 99% vibration isolation past 20 Hz
- Resonant Frequency: 3 Hz
Technology

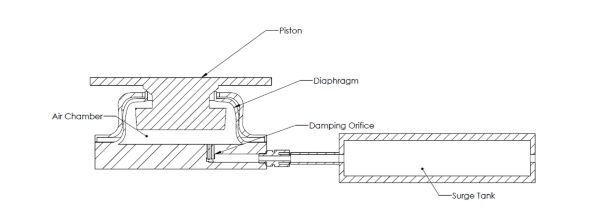

When properly inflated, these isolators will reduce the transmission of vibrations to the tabletop, providing a near vibration-free work surface for sensitive equipment.
Popular Upgrades
- Workstation Integration
- Acoustic Enclosure Integration
- Automatic Levelling Feature
- Portable Air Regulator
- Multiple Isolators for Increased Load Capacity
- Digital Air Pressure Gauge
Models
| Model M= Manual Levelling A= Automatic Levelling |
Dimensions Width x Depth x Height Imperial / Metric |
Load Capacity Upgrades Available Imperial / Metric |
| Onyx-6M | 16 x 17 x 2.3 in. / 406 x 432 x 58 mm | 150 Lbs / 68 Kg |
| Onyx-6A | 16 x 17 x 2.3 in. / 406 x 432 x 58 mm | 150 Lbs / 68 Kg |
| Onyx-7M | 20 x 24 x 2.3 in. / 508 x 609 x 58 mm | 150 Lbs / 68 Kg |
| Onyx-7A | 20 x 24 x 2.3 in. / 508 x 609 x 58 mm | 150 Lbs / 68 Kg |
| Onyx-8M | 24 x 32 x 2.3 in. / 609 x 813 x 58 mm | 200 Lbs / 91 Kg |
| Onyx-8A | 24 x 32 x 2.3 in. / 609 x 813 x 58 mm | 200 Lbs / 91 Kg |
Technical Specifications
| Natural Frequency Transmissibility | 1.9 - 2.6 Hz |
| Air Supply Requirements |
Onyx-M: Manual Hand Pump Onyx-A: Continuous compressed air, 75 psi, 5kg/cm Horizontal: approx 30-40 um/n |
| Static Compliance Accessories | Onyx-M: Hand pump and air valves Onyx-A: Auto-level sensors, air-filter, and regulator |
| Compliancy | All Herzan products are RoHS compliant |
Applications
Optical Microscopy
Interferometry
Profilometry
Micromanipulation
Materials Testing
High Precision Scales
Wire Bond and Pull Test
