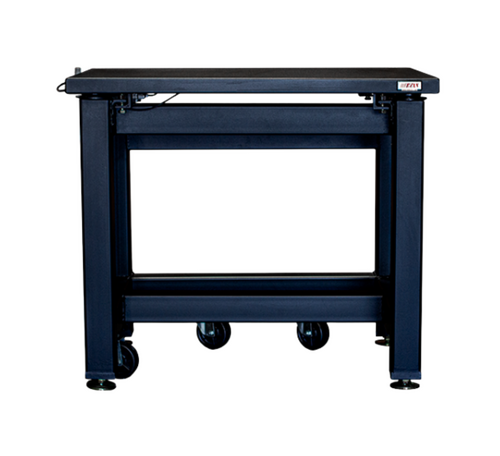

NanoDamp Series
Laboratory workstations are important solutions for researchers requiring unwavering reliability, ease-of-use, and vibration isolation performance. The NanoDamp Series (NDW Series) from Herzan builds on its two decades of experience tailoring solutions to meet the unique needs of their respective application.
Manufacturer
Herzan
Our core strategy is to provide carefully articulated vibration, acoustic, and EMI isolation solutions to the global research community. We are committed to delivering exact solutions for customer research needs, improving the overall performance of our environmental isolation systems, and providing the best customer experience possible for all users. In the end, what is important for us is to have the researcher focus on what matters most: their research (and not their isolation solution). We have been privileged to work with some of the most innovative individuals in the scientific research community and are proud to help advance the research performed by our customers.
CN Tech are the exclusive Herzan distributor for:
United Kingdom, Republic of Ireland and Europe.
Key Features
- Includes proprietary vibration damping materials that line the interior frame of the workstation for maximum damping
- Every NanoDamp Workstation incorporates a thoughtful approach towards design, capitalising on quality, aesthetics, and vibration damping performance
- Can be easily upgraded to integrate high-performance passive and active vibration control systems
- Can be personalised to solve individual research requirements that are not standard for NDW Series workstations
NDW Series
The NDW Series incorporates three forms of vibration isolation technology to address the wide range of isolation and budgetary needs for researchers.

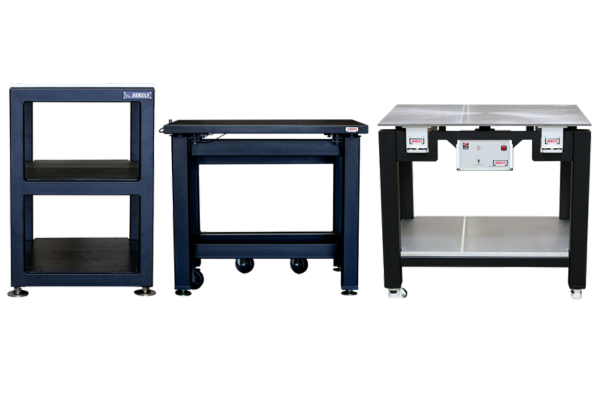

These isolation technologies include (from left to right):
- Standard NanoDamp Workstation
- Passive NanoDamp Workstation
- Active NanoDamp Workstation
Performance Comparison
| NDW Series Type | Isolation Technology | Performance |
| Standard | NDW Series Proprietary Technology Lining Interior Workstation Frame | 1/5 |
| Passive | Pneumatic Vibration Control (Onyx or MicroDamp Series Isolation Systems) | 3/5 |
| Active | Active Vibration Control (AVI or TS Series Isolation Systems) | 5/5 |

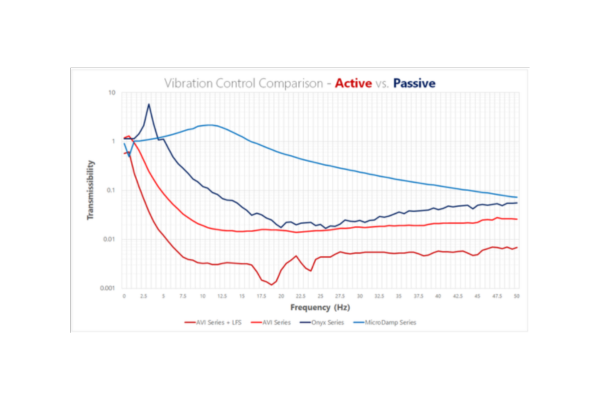

Vibration Control Comparison
Comparison only includes vibration control upgrades for NDW Workstations. Frequency span is truncated to focus on critical frequencies of concern for precision microscopes (0 – 50 Hz).
Popular Upgrades
The design of the NDW Series workstations allows the easy integration of a variety of upgrades to improve the user experience and overall effectiveness of the workstations. These upgrades relate to improvements in performance, form factor, operation, and more.

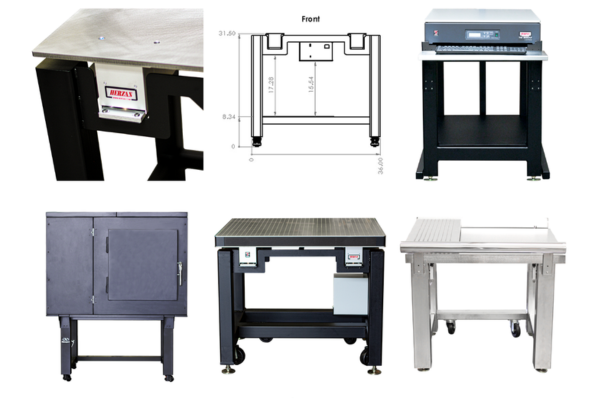

From top left to bottom right: Vibration Control Upgrades, Custom Sizes and Load Capacities, Ergonomic Upgrades, Acoustic Enclosure Upgrades, NanoDamp Workstations, Cleanroom Compatibility.

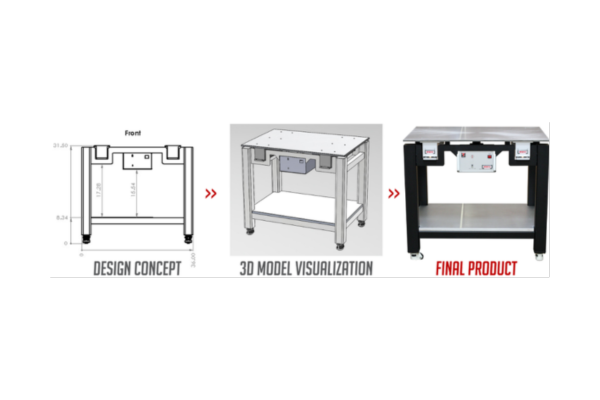

Custom Designs
No matter how complex the system requirements may be, Herzan has the capabilities to develop products that can meet any research need. Comprehensive engineered designs are provided for customers to review, clearly representing the proof of concept to ensure custom products meet the goals of the project. Each individual requirement is considered and thoughtfully integrated into every custom made solution to deliver the exact product reflective of the researcher’s need.

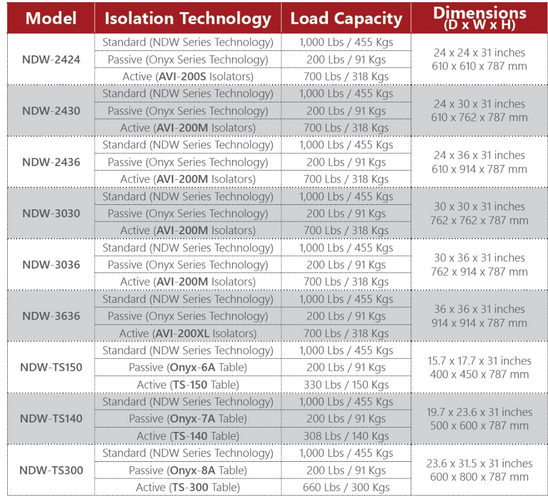

NDW Series Selection Guide
Selection Steps
- Step 1: Choose the workstation size that best supports your research instrument.
- Step 2: Choose if additional isolation technology is required for your application. Passive Isolation Technology addresses vibrations above 5 Hz; Active Isolation Technology addresses vibrations above 0.5 Hz.
Note: when ordering, indicate after the model number which type of isolation technology is needed. For example: NDW-2424 does not include additional isolation, NDW-2424P includes passive isolation, and NDW-2424A includes active isolation.
