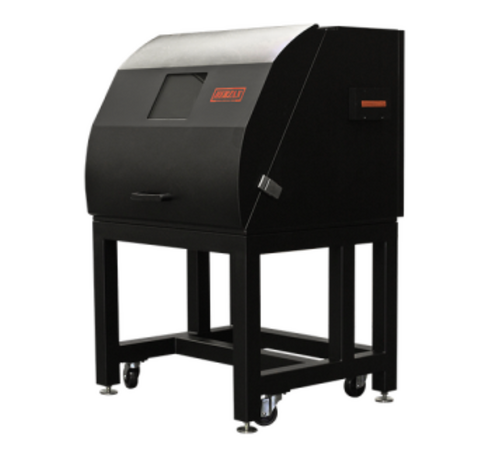

NanoVault

The NanoVault acoustic enclosure combines high-performance acoustic lining with high-accessibility features to deliver a quiet and streamlined experience for researchers operating large microscopes and multiple instrument applications.

Manufacturer

Herzan

Our core strategy is to provide carefully articulated vibration, acoustic, and EMI isolation solutions to the global research community. We are committed to delivering exact solutions for customer research needs, improving the overall performance of our environmental isolation systems, and providing the best customer experience possible for all users. In the end, what is important for us is to have the researcher focus on what matters most: their research (and not their isolation solution). We have been privileged to work with some of the most innovative individuals in the scientific research community and are proud to help advance the research performed by our customers.

CN Tech are the exclusive Herzan distributor for:

United Kingdom, Republic of Ireland and Europe.

Key Features

  • Multi-layered, variable-density acoustic damping material
  • Protects against low-frequency acoustic noise (50 Hz+)
  • Substantial acoustic isolation (up to 51 dB) across a broad frequency spectrum (50 – 15,000 Hz+)
  • Performance, accessibility, usability upgrades available
  • 100% enclosure customisation for end users and OEMs

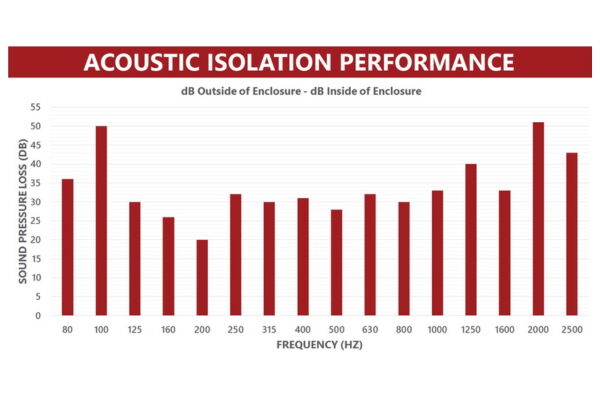

Performance Highlights

The multi-layered, variable density acoustic materials lining all Herzan enclosures allows for the highest performing acoustic isolation performance across a broad frequency spectrum.

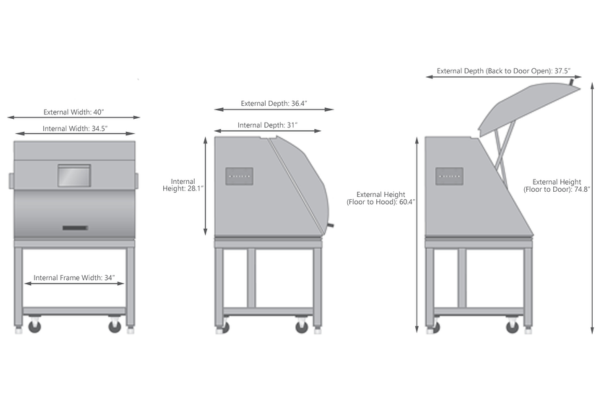

Dimensions



Internal Dimensions:

Imperial (W x D x H): 34.5 x 31 x 28.1 inches
Metric (W x D x H): 876.3 x 787.4 x 713.7 mm

External Dimensions:

Imperial (W x D x H): 40 x 36.4 x 60.4 inches
Metric (W x D x H): 1,016 x 924.6 x 1,534.2 mm



NOTE: The NanoVault includes a sloping front door, which reduces the internal dimensions near the front of the door.  Review the 3D model to determine if your instrument will fit inside of the enclosure.

Downloads

Brochures

NanoVault Data Sheet

View Brochure

Acoustic Enclosure User Guide

View Brochure

Options

Popular Upgrades

In addition to the NanoVault’s standard features, researchers can customise the acoustic enclosure with upgrade features, making the NanoVault versatile in addressing specific needs for any user.

Popular upgrade features include:

  • Vibration Control Integration
  • Performance Boost Options
  • Additional Cable Clamps
  • LED Lighting and Ionizer Bars
  • Custom Cable Access Ports
  • Custom End User and OEM Designs
  • Internal Temperature Stability
  • Custom Windows and Accessibility Features
