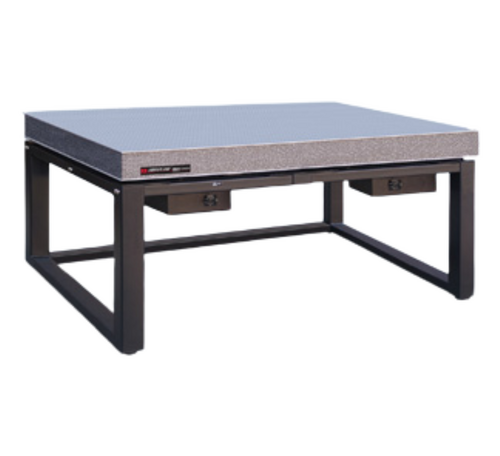

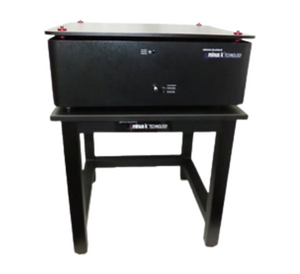

MK52 Optical Vibration Isolation Table

MK52 Optical Vibration Isolation Table

The MK52 Optical Vibration Isolation Table with more ergonomic comfort is designed specifically for ultra-low natural frequency applications.

Find out more Technical Resources

Key Features

  • Ultra-low Natural Frequencies
  • Vibradamped Frame
  • Customisable Accessories
  • Ergonomic Styling
  • Excellent Vertical and Horizontal Isolation Efficiencies
  • Requires No Air or Electricity

Manufacturer

Minus K Technology

The Minus K® products, formerly sold under the trade name Nano-K®, represent an important enabling technology. By reducing building and floor vibrations to unprecedented levels, these systems enable vibration sensitive instruments and equipment to perform at unprecedented levels. They are used in a broad spectrum of applications including nanotechnology, biological sciences, semiconductors, materials research, zero-g simulation of spacecraft, and high-end audio. Minus K® is an OEM supplier to leading manufactures of scanning probe microscopes, micro-hardness testers and other vibration-sensitive instruments and equipment. Minus K® customers include private companies and more than 300 leading universities and government laboratories in 51 countries.

MK52 Series

The MK52 Series utilises Minus K's patented negative stiffness vibration isolators to provide a compact, passive optical table with ultra-low natural frequencies, higher internal structural frequencies, and excellent vertical and horizontal isolation efficiencies. It also does this without any air or electricity!

The premier choice for large applications requiring high resolution such as: Raman spectroscopy, atomic force microscopy (AFM), AFM-Raman integration, and micro hardness testing.

The MinusK vertical isolator uses a stiff spring and negative-stiffness mechanism to achieve a low net vertical stiffness without affecting the static load supporting capability.

Horizontal vibration isolation is provided by beam columns connected in series with the vertical-motion isolator.

Adjusted to a 1/2 Hz natural frequency, the workstation achieves about 93% isolation efficiency at 2 Hz, 99% at 5 Hz and 99.7% at 10 Hz.

The MK52 Series can be configured for a wide variety of applications and customised with most of our vibration isolation workstation accessories.

Dimensions

Dimensions for:

  • MK5201-3648-XX: 250BM-1 Isolators
  • MK5202-3648-XX: 350BM-1 Isolators
  • MK5203-3648-XX: 500BM-1 Isolators
  • MK5204-3648-XX: 650BM-1 Isolators
  • MK5205-3648-XX: 850BM-1 Isolators
  • MK5206-3648-XX: 1000BM-1 Isolators

36" x 48" Frame (91 cm X 122 cm)
Height w/ 2" Table top 30.5" - 32" ( 77.5 - 81.25cm)
Height w/ 4" Table top 32.5" - 34" ( 82.5 - 86.5cm)



Dimensions for:

  • MK5201-3660-XX: 250BM-1 Isolators
  • MK5202-3660-XX: 350BM-1 Isolators
  • MK5203-3660-XX: 500BM-1 Isolators
  • MK5204-3660-XX: 650BM-1 Isolators
  • MK5205-3660-XX: 850BM-1 Isolators
  • MK5206-3660-XX: 1000BM-1 Isolators

36" x 60" Frame (91 cm X 152 cm)
Height w/ 2" Table top 30.5" - 32" ( 77.5 - 81.25cm)
Height w/ 4" Table top 32.5" - 34" ( 82.5 - 86.5cm)



Dimensions for:

  • MK5201-3672-XX: 250BM-1 Isolators
  • MK5202-3672-XX: 350BM-1 Isolators
  • MK5203-3672-XX: 500BM-1 Isolators
  • MK5204-3672-XX: 650BM-1 Isolators
  • MK5205-3672-XX: 850BM-1 Isolators
  • MK5206-3672-XX: 1000BM-1 Isolators

36" x 72" Frame (91 cm X 183 cm)
Height w/ 2" Table top 30.5" - 32" ( 77.5 - 81.25cm)
Height w/ 4" Table top 32.5" - 34" ( 82.5 - 86.5cm)



Dimensions for:

  • MK5202-3696-XX: 350BM-1 Isolators
  • MK5203-3696-XX: 500BM-1 Isolators
  • MK5204-3696-XX: 650BM-1 Isolators
  • MK5205-3696-XX: 850BM-1 Isolators
  • MK5206-3696-XX: 1000BM-1 Isolators

36" x 96" Frame (91 cm X 244 cm)
Height w/ 4" Table top 32.5" - 34" ( 82.5 - 86.5cm)



Dimensions for:

  • MK5202-4860-XX: 350BM-1 Isolators
  • MK5203-4860-XX: 500BM-1 Isolators
  • MK5204-4860-XX: 650BM-1 Isolators
  • MK5205-4860-XX: 850BM-1 Isolators
  • MK5206-4860-XX: 1000BM-1 Isolators

48" x 60" Frame (122 cm X 152 cm)



Dimensions for:

  • MK5202-4872-XX: 350BM-1 Isolators
  • MK5203-4872-XX: 500BM-1 Isolators
  • MK5204-4872-XX: 650BM-1 Isolators
  • MK5205-4872-XX: 850BM-1 Isolators
  • MK5206-4872-XX: 1000BM-1 Isolators

48" x 72" Frame (122 cm X 183 cm)
Height w/ 4" Table top 32.5" - 34" ( 82.5 - 86.5cm)



Dimensions for:

  • MK5202-4896-XX: 350BM-1 Isolators
  • MK5203-4896-XX: 500BM-1 Isolators
  • MK5204-4896-XX: 650BM-1 Isolators
  • MK5205-4896-XX: 850BM-1 Isolators
  • MK5206-4896-XX: 1000BM-1 Isolators

48" x 96" Frame (122 cm X 244 cm)
Height w/ 4" Table top 32.5" - 34" ( 82.5 - 86.5cm)

MK5201-3648-XX: 250BM-1 Isolators
2" Composite Payload Range 164 lb -344 lb (74 kg - 156 kg)
2" Honeycomb Payload Range 199 - 379 lb (90 kg - 172kg)
4" Honeycomb Payload Range 147 lb - 327 lb (67 kg - 148 kg)
MK5202-3648-XX: 350BM-1 Isolators
2" Composite Payload Range 348 lb -544 lb (174 kg - 247 kg)
2" Honeycomb Payload Range 419lb - 579 lb (190 kg - 262 kg)
4" Honeycomb Payload Range 367 lb - 527 lb (166 kg - 239 kg)
MK5203-3648-XX: 500BM-1 Isolators
Composite Payload Range 524 lb - 854 lb (238 kg - 387 kg)
Honeycomb Payload Range 559 lb -889 lb (253 kg - 403 kg)
4" Honeycomb Payload Range 507 lb -837 lb (230 kg - 380 kg)
MK5204-3648-XX: 650BM-1 Isolators
Composite Payload Range 804 lb - 1154 lb (365 kg - 528 kg)
4" Honeycomb Payload Range 787 lb 1147lb (357 kg - 520 kg)
MK5205-3648-XX: 850BM-1 Isolators
4" Honeycomb Payload Range 1047 lb 1587 lb (475 kg - 720 kg)
MK5206-3648-XX: 1000BM-1 Isolators
4" Honeycomb Payload Range 1567 lb 1887 lb (711 kg - 856 kg)
MK5201-3660-XX: 250BM-1 Isolators
2" Composite Payload Range 104 lb -284 lb (47 kg - 129 kg)
2" Honeycomb Payload Range 147 - 327 lb (67 kg - 148 kg)
4" Honeycomb Payload Range 82 lb - 262 lb (37 kg - 119 kg)
MK5202-3660-XX: 350BM-1 Isolators
2" Composite Payload Range 324 lb -484 lb (147 kg - 219 kg)
2" Honeycomb Payload Range 367 lb - 527 lb (166 kg - 239 kg)
4" Honeycomb Payload Range 302 lb - 462 lb (137 kg - 210 kg)
MK5203-3660-XX: 500BM-1 Isolators
2" Composite Payload Range 464 lb - 794 lb (210 kg - 360 kg)
2" Honeycomb Payload Range 507 lb -837 lb (230 kg - 380 kg)
4" Honeycomb Payload Range 442 lb -772 lb (200 kg - 350 kg)
MK5204-3660-XX: 650BM-1 Isolators
2" Composite Payload Range 744 lb - 1104 lb (337 kg - 501 kg)
4" Honeycomb Payload Range 722 lb - 1082 lb (327 kg - 491 kg)
MK5205-3660-XX: 850BM-1 Isolators
2" Composite Payload Range 1004 lb -1544 lb (455 kg - 700 kg)
4" Honeycomb Payload Range 982 lb -1522 lb (445 kg - 690 kg)
MK5206-3660-XX: 1000BM-1 Isolators
4" Honeycomb Payload Range 1502 lb -1822 lb (681 kg - 826 kg)
MK5201-3672-XX: 250BM-1 Isolators
2" Composite Payload Range 43 lb -223 lb (20 kg - 101 kg)
2" Honeycomb Payload Range 95 - 275 lb (43 kg - 125 kg)
4" Honeycomb Payload Range 17 lb - 197 lb (8 kg - 89 kg)
MK5202-3672-XX: 350BM-1 Isolators
2" Composite Payload Range 263 lb -423 lb (119 kg - 192 kg)
2" Honeycomb Payload Range 315 lb - 475 lb (143 kg - 215 kg)
4" Honeycomb Payload Range 237 lb - 397 lb (108 kg - 180 kg)
MK5203-3672-XX: 500BM-1 Isolators
2" Composite Payload Range 403 lb - 773 lb (183 kg - 333 kg)
2" Honeycomb Payload Range 455 lb - 785 lb (206 kg - 356 kg)
4" Honeycomb Payload Range 377 lb - 707 lb (171 kg - 321 kg)
MK5204-3672-XX: 650BM-1 Isolators
2" Composite Payload Range 683 lb - 1043 lb (310 kg - 473 kg)
4" Honeycomb Payload Range 657 lb - 1017 lb (298 kg - 461 kg)
MK5205-3672-XX: 850BM-1 Isolators
4" Honeycomb Payload Range 917 lb - 1457 lb (416 kg - 661 kg)
MK5206-3672-XX: 1000BM-1 Isolators
4" Honeycomb Payload Range 1437 lb - 1757 lb (652 kg - 797 kg)
MK5202-3696-XX: 350BM-1 Isolators
4" Honeycomb Payload Range 108 lb - 268 lb (49 kg - 121 kg)
MK5203-3696-XX: 500BM-1 Isolators
4" Honeycomb Payload Range 248 lb - 578 lb (112 kg - 262 kg)
MK5204-3696-XX: 650BM-1 Isolators
4" Honeycomb Payload Range 528 lb - 888 lb (239 kg - 403 kg)
MK5205-3696-XX: 850BM-1 Isolators
4" Honeycomb Payload Range 788 lb - 1328 lb (357 kg - 602 kg)
MK5206-3696-XX: 1000BM-1 Isolators
4" Honeycomb Payload Range 1308 lb - 1628 lb (593 kg - 738 kg)
MK5202-4860-XX: 350BM-1 Isolators
4" Honeycomb Payload Range 194 lb - 354 lb (88 kg - 161 kg)
MK5203-4860-XX: 500BM-1 Isolators
4" Honeycomb Payload Range 334 lb - 664 lb (151 kg - 301 kg)
MK5204-4860-XX: 650BM-1 Isolators
4" Honeycomb Payload Range 614 lb - 974 lb (279 kg - 442 kg)
MK5205-4860-XX: 850BM-1 Isolators
4" Honeycomb Payload Range 874 lb - 1414 lb (396 kg - 641 kg)
MK5206-4860-XX: 1000BM-1 Isolators
4" Honeycomb Payload Range 1394 lb - 1714 lb (632 kg - 777 kg)
MK5202-4872-XX: 350BM-1 Isolators
4" Honeycomb Payload Range 108 lb -268 lb (49 kg - 121 kg)
MK5203-4872-XX: 500BM-1 Isolators
4" Honeycomb Payload Range 248 lb -578 lb (112 kg - 262 kg)
MK5204-4872-XX: 650BM-1 Isolators
4" Honeycomb Payload Range 528 lb -888 lb (239 kg - 403 kg)
MK5205-4872-XX: 850BM-1 Isolators
4" Honeycomb Payload Range 788 lb -1328 lb (357 kg - 602 kg)
MK5206-4872-XX: 1000BM-1 Isolators
4" Honeycomb Payload Range 1308 lb -1628 lb (593 kg - 738 kg)
MK5202-4896-XX: 350BM-1 Isolators
4" Honeycomb Payload Range 0 lb - 95 lb (0 kg - 43 kg)
MK5203-4896-XX: 500BM-1 Isolators
4" Honeycomb Payload Range 75 lb - 405 lb (34 kg - 184 kg)
MK5204-4896-XX: 650BM-1 Isolators
4" Honeycomb Payload Range 355 lb - 715 lb (161 kg - 324 kg)
MK5205-4896-XX: 850BM-1 Isolators
4" Honeycomb Payload Range 615 lb - 1155 lb (279 kg - 524 kg)
MK5206-4896-XX: 1000BM-1 Isolators
4" Honeycomb Payload Range 1135 lb - 1455 lb (515 kg - 660 kg)
