MK26 Vibration Isolation Workstation
The MK26 Series Vibration Control Workstation with more ergonomic comfort is designed specifically for ultra-low natural frequency applications.
Key Features
- Ultra-low Natural Frequencies
- Excellent Vertical and Horizontal Isolation Efficiencies
- Customisable Accessories
- No Air or Electricity Required
Manufacturer
Minus K Technology
The Minus K® products, formerly sold under the trade name Nano-K®, represent an important enabling technology. By reducing building and floor vibrations to unprecedented levels, these systems enable vibration sensitive instruments and equipment to perform at unprecedented levels. They are used in a broad spectrum of applications including nanotechnology, biological sciences, semiconductors, materials research, zero-g simulation of spacecraft, and high-end audio. Minus K® is an OEM supplier to leading manufactures of scanning probe microscopes, micro-hardness testers and other vibration-sensitive instruments and equipment. Minus K® customers include private companies and more than 300 leading universities and government laboratories in 51 countries.
MK26 Series

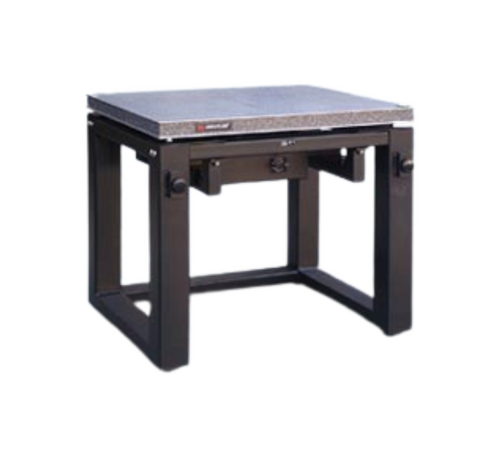

The MK26 Series utilises MinusK patented negative stiffness vibration isolators in order to provide a compact, passive Vibration Isolation Workstation with ultra-low natural frequencies, higher internal structural frequencies, and excellent vertical and horizontal isolation efficiencies. The MK26 has also been upgraded to provide much better user comfort and additional leg space. It also does this without any air or electricity!
The Minus K vertical isolator uses a stiff spring and negative-stiffness mechanism to achieve a low net vertical stiffness without affecting the static load supporting capability. Horizontal vibration isolation is provided by beam columns connected in series with the vertical-motion isolator. Adjusted to a 1/2 Hz natural frequency, the workstation achieves about 93% isolation efficiency at 2 Hz, 99% at 5 Hz and 99.7% at 10 Hz.
The MK26 Series can be configured for a wide variety of applications and customized with most of our vibration isolation workstation accessories.
Dimensions
Dimensions for:
- MK2601-01-XX: 250BM-1 Isolator
- MK2602-01-XX: 350BM-1 Isolator
- MK2603-01-XX: 500BM-1 Isolator
- MK2604-01-XX: 650BM-1 Isolator
30" x 36" Frame (76 cm X 91 cm)
Height w/ 2" Table top 30.5" - 32" ( 77.4 - 81.25cm)
Dimensions for:
- MK2605-01-XX: 850BM-1 Isolator
- MK2606-01-XX: 1000BM-1 Isolator
30" x 36" Frame (76 cm X 91 cm)
Height w/ 4 " Table top 32.5" - 34" ( 82.5 - 86.5cm)
Dimensions for:
- MK2601-22-XX: 250BM-1 Isolator
- MK2602-22-XX: 350BM-1 Isolator
- MK2603-22-XX: 500BM-1 Isolator
- MK2604-22-XX: 650BM-1 Isolator
36" x 48 " Frame (91 cm X 122 cm)
Height w/ 2 " Table top 30.5" - 32" ( 77.4 - 81.25cm)
Dimensions for:
- MK2605-22-XX: 850BM-1 Isolator
- MK2606-22-XX: 1000BM-1 Isolator
36" x 48 " Frame (91 cm X 122 cm)
Height w/ 4 " Table top 32.5" - 34" ( 82.5 - 86.5cm)
| MK2601-01-XX: 250BM-1 Isolator | |
|---|---|
| Composite Payload Range | 52 lb - 142 lb (23 kg - 64 kg) |
| Honeycomb Payload Range | 73 lb - 163 lb (33 kg -74 kg) |
| MK2602-01-XX: 350BM-1 Isolator | |
|---|---|
| Composite Payload Range | 162 lb - 242 lb (73 kg - 110 kg) |
| Honeycomb Payload Range | 183 lb - 263 lb (83 kg -119 kg) |
| MK2603-01-XX: 500BM-1 Isolator | |
|---|---|
| Composite Payload Range | 232 lb - 397 lb (105 kg - 180 kg) |
| Honeycomb Payload Range | 253 lb - 418 lb (115 kg -190 kg) |
| MK2604-01-XX: 650BM-1 Isolator | |
|---|---|
| Composite Payload Range | 372 lb - 552 lb (169 kg - 250 kg) |
| Honeycomb Payload Range | 393 lb - 573 lb (178 kg -260 kg) |
| MK2605-01-XX: 850BM-1 Isolator | |
|---|---|
| Honeycomb Payload Range | 491 lb -761 lb (223 kg - 345 kg) |
| MK2606-01-XX: 1000BM-1 Isolator | |
|---|---|
| Honeycomb Payload Range | 751 lb -911 lb (341 kg - 413 kg) |
| MK2601-22-XX: 250BM-1 Isolator | |
|---|---|
| Composite Payload Range | 0 lb - 51 lb (0 kg - 23 kg) |
| Honeycomb Payload Range | 0 lb - 86 lb (0 kg - 39 kg) |
| MK2602-22-XX: 350BM-1 Isolator | |
|---|---|
| Composite Payload Range | 71 lb - 151 lb (32 kg - 69 kg) |
| Honeycomb Payload Range | 106 lb - 186 lb (48 kg - 84 kg) |
| MK2603-22-XX: 500BM-1 Isolator | |
|---|---|
| Composite Payload Range | 141 lb - 306 lb (69 kg - 139 kg) |
| Honeycomb Payload Range | 176 lb - 341 lb (80 kg -155 kg) |
| MK2604-22-XX: 650BM-1 Isolator | |
|---|---|
| Composite Payload Range | 281 lb - 461 lb (127 kg - 209 kg) |
| Honeycomb Payload Range | 316 lb - 496 lb (143kg -225 kg) |
| MK2605-22-XX: 850BM-1 Isolator | |
|---|---|
| Honeycomb Payload Range | 394 lb - 664 lb (179 kg - 301 kg) |
| MK2606-22-XX: 1000BM-1 Isolator | |
|---|---|
| Honeycomb Payload Range | 654 lb - 814 lb (297 kg - 369 kg) |
