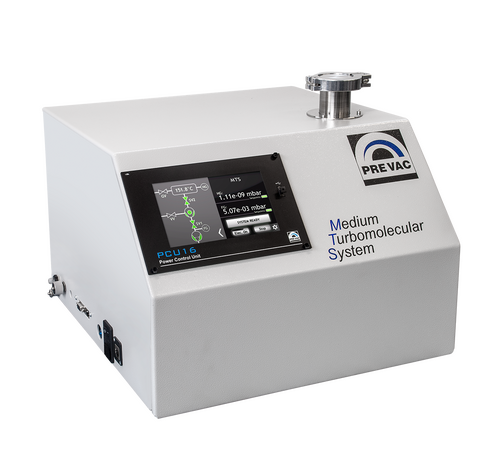

Medium Turbomolecular System MTS
The Medium Turbo Molecular System MTS with PCU16 Power Control Unit is a compact portable pump unit with a large TFT LCD touchscreen graphic display.
Manufacturer
Prevac
Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.
Key Features
- Fore-vacuum diaphragm pump
- Turbo-molecular pump 65 l/s
- Safety valve SV
- Separation valves Z1, Z2, Z3 (optional)
- Vent valve VV
- Fore-vacuum gauge Leybold TTR91
- UHV gauge Leybold ITR90 (optional)
Description
The system has built-in vacuum devices:
- Fore-vacuum diaphragm pump,
- Turbo-molecular pump 65 l/s,
- Safety valve SV,
- Separation valves Z1, Z2, Z3 (optional),
- Vent valve VV,
- Fore-vacuum gauge Leybold TTR91,
- UHV gauge Leybold ITR90 (optional).
The status of all devices is shown on the LCD touchscreen graphic display as a vacuum scheme (that can be modified from software level) which allows for easy understanding of how the whole device works and for intuitive display of the current status of all devices.
The Medium Turbomolecular System MTS is designed for numerous laboratory applications. For help in choosing a vacuum pumping system for your specific ap plication, please contact our Sales Department.
Technical data
| Model | MTS |
| Power supply | 230V AC |
| TMP pumping speed | 65l/s |
| Vacuum | 5 x 10-8 mbar |
| Working temperature | +15ÅãC to +45ÅãC |
| Vacuum connection | DN 63ISO-K or CF |
