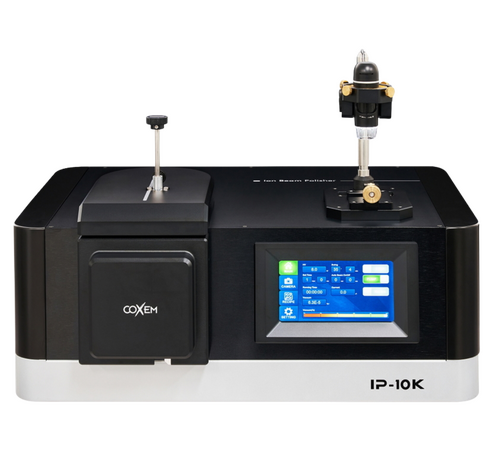

IP-10K
The IP-10K is equipped with various options including flat-milling, cooling stage, and the air-protection module, ensuring enhanced performance and versatility for a wide range of applications.
Manufacturer
COXEM
COXEM manufactures and provides Scanning Electron Microscope (SEM), the most widely used platform technology in Nano- Metrology of Nano-scale. As a partner of Nano-fusion technology that changes industrial condition in 21 century, COXEM tries to provide the best quality service. SEM is the precision instrument, can be used for analysing the shapes or constituents of microstructure materials in quantitative and qualitative. SEM is an essential instrument for development of basic science and an indispensable infra for technical innovation, used in chemistry, biology, material science as well as nano-materials and nano-biology.
CN Tech are the exclusive Coxem distributor for:
United Kingdom and Republic of Ireland.
Key Features
- Enhanced performance and versatility
- Unparalleled capabilities for the precision milling of materials at the microscale levels
- Exceptional cleanliness and accuracy
Specifications
| Ion accelerating voltage | 2 to 8kV |
| Milling Speed | 1,000um/h (at 8kV on Si wafer) |
| Sample stage swing angle | ±35° |
| Maximum sample size | 20(W) × 10(L) × 5.5(T)mm 16(W) × 10(D) × 9.5(H)mm |
| Specimen movement range | X axis movement : 士3.5mm Y axis movement : 士2mm |
| Flat milling stage tilt angle range | 10° to 90° |
| Sample size for flat milling | Ø32 × 18(H)mm |
| Operation | 7 inch touch panel |
| Digital microscope for sample positioning | Mag. 5x, 10x, 20x, 40x |
| Chamber camera for monitoring | Mag. 5x, 10x, 20x, 40x Brightness adjustable in 4 steps Ion beam observation mode (LED off ) |
| Gas used | Argon gas (99.999%) |
| Gas pressure | 0.03MPa ~ 0.05MPa |
| Gas flow control | Mass Flow Control unit |
| Vacuum systems | Turbo pump, Diaphragm pump |
| Dimension | 640(W) × 492(D) × 282(465)(H)mm |
| Weight | Main system 45kg / Diaphragm pump 6.5kg |
| Options | Air-protection module, Cooling module, Flat milling |
Downloads
IP-10K Brochure
Coxem Product Catalogue
Service Support
Comprehensive repairs and servicing
Annual Support Programs
Your metrology instrumentation is a major investment that is critical to your business operation and success. In today’s competitive climate, it is more important than ever to extend the functionality and peak performance of your metrology equipment years beyond the expiration of your factory warranty. CN Tech’s Support Programs will help ensure that your investment is protected, and that you and your instrument’s are always operating at peak performance.
With over 20 years’ experience servicing and repairing you can be assured that your system is in safe hands. The independent services we offer include system relocation, maintenance visits, parts and consumables, and break down interventions.
CN Tech’s Support Programs are an economical way to guarantee optimal working condition:
- Annual Preventive Maintenance
- Priority Technical Assistance
- Preferred Parts Availability
- On-Site User Training
- Remote Diagnostics
- No surprise repair expense and much more!
Support Contact Example
An example of our service and support contracts are shown below:
Metrology & Instrumentation Annual Support Programs 2024/25
CN Tech's Support Programs will help ensure that your investment is protected, and that you and your instrument’s are always operating at peak performance.
