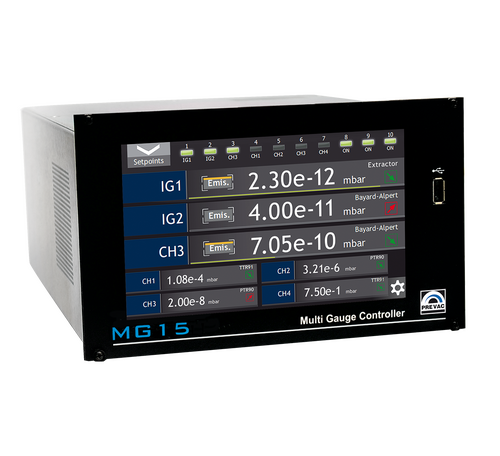

Ion Multi Gauge Controller MG15

Able to support 4 active gauges and up to 3 passive gauges, extending the measurement range to 2×10-12 mbar.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Key Features

  • Measurement range from atmospheric to 2×10-12 mbar
  • Pressure plots
  • Pressure trend graphs
  • Measurement filtering (low, med, hi)
  • Controls almost all commercially available Bayard-Alpert gauges
  • Degassing of Bayard-Alpert with power and time limit
  • Supports Ir/W/Thoria filaments
  • Bayard-Alpert overpressure protection
  • Selectable measurement units: mbar, Torr, Pascal, Psia
  • Gas specific correction with one customised setting
  • Unit over-temperature protection
  • 10 individually programmable set-points with threshold and hysteresis functions
  • User-defined channel names
  • Possibility of active gauges self-identification
  • Charts module – real time pressure charts with data export possiblity (option)
  • Pararell measurement for all channels
  • Flux monitor
  • Black box version available (option) – without 7″ TFT display
  • Fully software controlled (option)
  • Autosave function for saving your parameters/unit preset and applying them automatically after restart
  • Labview compatible (option)

Description

The unit is fully software controlled. The unit can be remotely controlled via one of available interfaces.



Technical data

Supply voltage 100 – 240 VAC, 50 – 60 Hz (power consumption max 200 W)
Measurement channels up to 7 (active channels: 4; passive channels: up to 3 – number defined at the time of order)
Supported active gauges CTR90, TTR91, TTR211, PTR225, PKR251/360/361, PCR280, PTR90, ITR90, ITR100, Baratron, ANALOG IN, PG105, ATMION, User defined*
Supported passive gauges IE414, IE514, UHV-24, UHV-24p, MKS Series 274, NUDE-UHV-8A, NR-F-UHV, G8130, BARION basic II, User defined*
Measurement range:
Passive channel
Active channel
2×12-12 mbar
5×10-10 mbar
Display range 2×10-12 – 2×105mbar
Setpoints relay outputs 10 (4xNO/NC, 6xNO)
Relay outputs with configurable activation signal 4 (Emission, Degas)
Digital inputs 4
Analogue outputs 4 (0-10V)
Communication interface RS232/485, Ethernet, PROFINET (option – specify at order)
Communication protocol MODBUS-TCP
User interface 7″ TFT display with touchscreen
Dimensions [mm] 212.6 x 128.4 x 260.3 mm (WxHxD), 1/2 of 3HE 19″
Weight (approx.) 3.8 kg

Applications

  • Any high and ultra high vacuum systems
  • Measurement of pressure (from atmosphere to UHV range)
  • Bakeable and non bakeable systems
