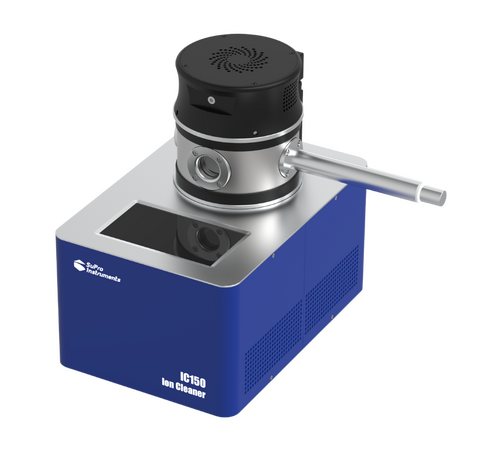

IC150 Plasma Cleaner
The IC150 plasma cleaner uses an RF power supply to ionize the incoming air, producing strong oxidative particles such as oxygen radicals, ozone, and oxygen plasma. These particles chemically react with organic contaminants on the sample surface, converting them into CO2 and H2O, which are then removed by the vacuum pump system. This process effectively cleans organic contaminants from the sample holder or sample surface.
Key Features
- TEM sample and holder cleaning
- Grid/sample surface hydrophilization treatment
- High-performance vacuum dry pump, oil-free and efficient
Manufacturer
SuPro Instruments
Supro Instruments is committed to providing lean-level preparation, measurement, and control instruments for electron microscopy sample preparation and micro-nano thin film fields, assisting customers in improving research and development and production efficiency, and providing customers with a better user experience.
Product Specification
| Technical Specifications | Parameters |
| Vacuum Pump | Oil-free Diaphragm Pump |
| Pumping Speed | ＞0.7m3/h |
| Ultimate Vacuum | <50Pa |
| Working Pressure | 60-150Pa |
| Pumping Down Time | <2Min |
| Vacuum Gauge | Pirani gauge |
| Chamber | ~Ø150*90mm Stainless Steel Chamber |
| RF Power Supply | Adjustable from 10 to 50 W, 13.56 MHz |
| Operating Method | Touchscreen Control with the Control System Providing Interlock Protection Functions |
| Weight | ~20 kg |
| Dimension | ~400mm*310mm*368mm |
| Power Supply | 100-220V AC, 50/60Hz Grounded Three-prong Plug |
| Power Consumption | < 300 W |
| Warranty | One year |
Downloads

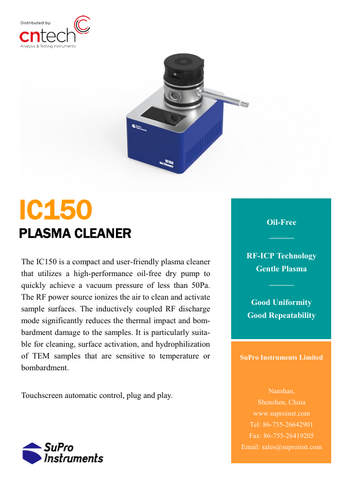

IC150 Brochure
