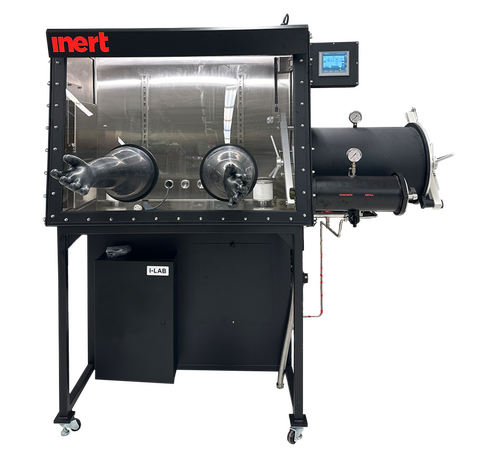

I-Lab 2GB Glovebox
Experience unparalleled control over your research environment with the I-Lab Glovebox System, engineered to maintain oxygen and moisture levels below 1ppm.
Manufacturer
Inert
Inert design and deliver the most dependable standardised and custom-built atmosphere Glove Boxes, Gas Management Systems, and Solvent Purification Systems at the most competitive prices. They also offer a full inventory of replacement parts and supplies. Since 1981, they have been the glove box and solvent system design/manufacturer who puts quality, flexibility, and customer service first. As a result, their solutions and after-sales support are unmatched.
Key Features
- Non-modular box design
- Automatic pressure control
- Fully automatic regeneration sequence
- Integrated oxygen analyser
- Integrated moisture analyser
- Overall system leak rate
Overview
The I-Lab 2GB is perfectly suited for a wide array of applications requiring stringent inert conditions.
Tailored to meet diverse research demands, the I-Lab offers a myriad of customisable options, including freezer compatibility, cold well integration, versatile feedthroughs, efficient heat exchangers, and convenient quick-release front panels.
Ideal for both industrial laboratories and academic institutions, the I-Lab caters to a plethora of air-sensitive applications, ranging from lithium battery research, welding, and additive manufacturing to chemical synthesis and OLED/PLED development.
Experience precision, versatility, and reliability with the I-Lab Glovebox System, empowering your research.
2-Glove Workstation
| Internal Dimensions | 1213 mm Wide x 764 mm Deep x 897 mm High |

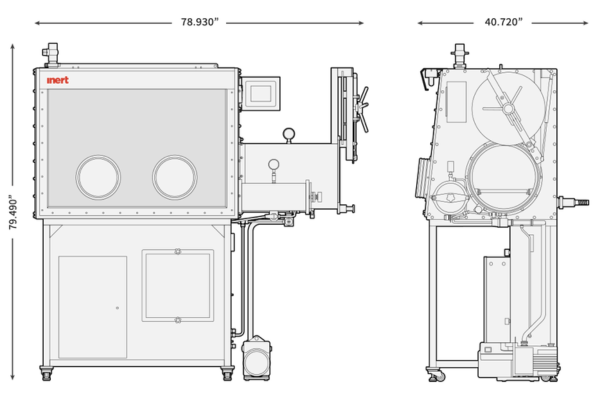

| External dimensions | 2005 mm Wide x 1034 mm Deep x 2024 mm High |
| Internal finish | Type 304 stainless steel, #4 |
| External surfaces | RAL 9011 (Graphite Black) |
| Wall thickness | 0.105″ (2.6 mm) |
| Feedthrough | 4 x DN 40 ISO-KF blank |
| Internal power | 1 x electrical feedthrough |
| Internal power | 1 x fuse protected 6-outlet power strip |
| Shelving | 2 x Height adjustable 304 stainless steel #4 finish. 30.6″ (778 mm) Wide x 9.7″ (247 mm) Deep |
| Plumbing | 304 stainless steel tubing |
| Filters | 1 x inlet/1 x outlet HEPA (99.99% vs 0.3 micron MPPS) |
| Lighting | External LED light |
| Power | 100-120 or 200-240 VAC 50/60 Hz 20 Amp |
Non-Modular Box Design
| Stand with casters and levelling feet | Levelling feet adjustability |
Large Antechamber, 15″ (381 mm) Internal Diameter x 24″ (609 mm) Internal Length
| Bolt | On left or right side |
| Internal finish | 304 stainless steel #4 surface finish |
| External finish | RAL 9011 (Graphite Black) |
| Internal tray | 304 stainless steel #4 surface finish |
| Tray size | 11.25″ (285 mm) Wide x 22.5″ (571 mm) Long |
| Internal/external travel | 13.9″ (353 mm) |
| Anodized aluminium doors, vertical opening with gas piston | |
| Manual evacuate/refill valves | |
| Analog vacuum gauge | 0 to -30″ Hg |
| Leak rate | < 10-5 mbar l/s |
Small Antechamber, 6″ (152 mm) Internal Diameter x 17.3″ (441 mm) Internal Length
| Internal finish | 6061 anodized aluminium |
| External finish | RAL 9011 (Graphite Black) |
| Internal/external doors | 6061 anodized aluminium |
| Manual evacuate/refill valve | |
| Analog vacuum gauge | 0 to -30″ Hg |
| Leak rate | < 10-5 mbar l/s |
Polycarbonate (Abrasion Resistant) Window 3/8″ (9.5 mm) Thick
| Viewing size | 41.8″ (1061 mm) Wide x 30.2″ (767 mm) High |
Circular Glove Ports
| Black Delrin, 8″ glove port | 0.015″ (0.4 mm) thick butyl rubber gloves, hand size 9.75 |
I-Lab Gas Management System
| Single column gas purification system | |
| O2 and H2O purity level | |
| O2 capacity = | 43 L |
| H2O capacity = | 1800 g |
| Automated purifier column valves | Interlocked with the blower. Blower will not run if the valves fail to open |
| Variable speed circulation blower | 120 cfm max flow rate blower |
| Max flow rate through purifier column | 101m3/h (60 CFM) 60 cfm |
Automatic Pressure Control
| Automatic pressure control | (+/- 15 mbar) |
| Manual pressure control | Footswitch |
Fully Automatic Regeneration Sequence
| Manual purge valve |
Vacuum Pump
| Vacuum pump | 10 cfm (17 m3/h) rotary vane pump with oil mist eliminator & oil return kit |
Integrated Oxygen Analyzer
| Range 0-1000 ppm |
| Zirconia sensor as standard |
| Or electrochemical sensor for solvent compatibility |
Integrated Moisture Analyzer
| Range 0-1000 ppm |
Overall System Leak Rate
| <0.05vol%/h (ISO 10648-2) |
System Gas Requirements
| Working gas | 399.995% N2 or Ar |
| Working gas pressure | 55 psi (3.8 bar) |
| Working gas flow rate | 250 l/min |
| Regeneration gas | 3-7% H2, balance N2 or Ar |
| Regeneration gas pressure | 5-7 psi (0.3-0.5 bar) |
| Regeneration gas flow rate | 30 l/min |
Applications
Additive (3D) Manufacturing
Aerospace
Automotive
Chemistry
Lamp Manufacturing
Lithium Ion Battery
Medical Device
Nuclear
OLED
Pharmaceutical
Semiconductor
Solar
Specialty Chemical
Thin Film
Options
Analysers
Vacuum Pumps
Static Control
Auto Purge Valve
Feedthrough Fittings
Microscopes
Solvent Removal
Freezers
Heating
Small capacity external solvent removal
Coldwell
Thin Film Deposition
Gloves
