High Access SEM Acoustic Enclosure

Technological advancements in electron microscopy make operating in a quiet and stable environment necessary. Herzan’s latest acoustic enclosure for electron microscopes ensures maximum protection from disruptive acoustic noise originating from pumps, chillers, and other loud laboratory equipment.

Manufacturer

Herzan

Our core strategy is to provide carefully articulated vibration, acoustic, and EMI isolation solutions to the global research community. We are committed to delivering exact solutions for customer research needs, improving the overall performance of our environmental isolation systems, and providing the best customer experience possible for all users. In the end, what is important for us is to have the researcher focus on what matters most: their research (and not their isolation solution). We have been privileged to work with some of the most innovative individuals in the scientific research community and are proud to help advance the research performed by our customers.

CN Tech are the exclusive Herzan distributor for:

United Kingdom, Republic of Ireland and Europe.

Key Features

  • Designed for EMs: modular/panelled design for maximum performance and utility.
  • Leading Performance for Acoustically Sensitive EMs: multiple layers of sound dampening material for broad frequency acoustic isolation.
  • Accessibility for Ease-of-Use: multiple cable access ports and double-access doors allow for uncompromised access to the electron microscope at all times.
  • Mobile and Removable: detachable caster jacks allow for high portability and accessibility when needed.

Performance Highlights

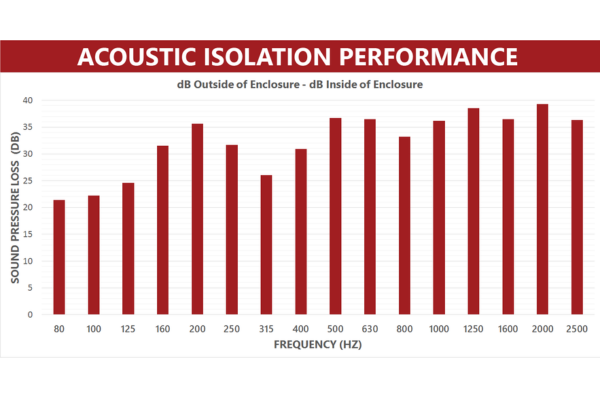

The multi-layered, variable density materials lining the walls of the High-Access SEM Enclosure allow for high-performance acoustic isolation across a broad frequency spectrum.

  • 36 dB of sound loss at 200 Hz
  • 37 dB of sound loss at 500 Hz
  • 36 dB of sound loss at 1,000 Hz
  • 36 dB of sound loss at 1,500 Hz
  • 39 dB of sound loss at 2,000 Hz

Dimensions

Internal Dimensions:

Imperial (W x D x H): 58 x 46 x 85.8 inches
Metric (W x D x H): 1473 x 1168 x 2179 mm

External Dimensions:

Imperial (W x D x H): 69.3 x 57.3 x 87.5 inches
Metric (W x D x H): 1760 x 1455 x 2222

Downloads

Brochures

Electron Microscope Acoustic Enclosure

View Brochure

Options

Popular Upgrades

  • Integrated Active Vibration Isolation (AVI Series)
  • Integrated Active EMI Cancellation (Spicer System)
  • Acoustic Performance Boost
  • Temperature Stability
  • Custom Sizes and Colours
  • Custom Accessibility Points and Doors
  • And More!

Service Support

Comprehensive repairs and servicing

Annual Support Programs

Your metrology instrumentation is a major investment that is critical to your business operation and success. In today’s competitive climate, it is more important than ever to extend the functionality and peak performance of your metrology equipment years beyond the expiration of your factory warranty. CN Tech’s Support Programs will help ensure that your investment is protected, and that you and your instrument’s are always operating at peak performance.

With over 20 years’ experience servicing and repairing you can be assured that your system is in safe hands. The independent services we offer include system relocation, maintenance visits, parts and consumables, and break down interventions.

CN Tech’s Support Programs are an economical way to guarantee optimal working condition:

  • Annual Preventive Maintenance
  • Priority Technical Assistance
  • Preferred Parts Availability
  • On-Site User Training
  • Remote Diagnostics
  • No surprise repair expense and much more!
