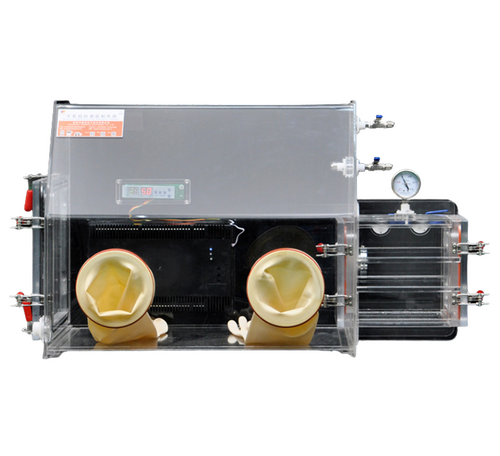

H-type of acrylic glove box
The H-type of acrylic glove box consists of a main chamber, a vacuum antechamber, a desiccant module, a side door, two glove ports, a inlet and a outlet ports, and a power socket. The product is fully transparent, with a simple structure and affordable price. H-type glove box is suitable for customers who have requirements for moisture parameter but do not have an inert gas source in the laboratory. Simply plug in a 220V power supply to reduce the humidity inside the box to 1% RH. This glove box is a dual-use type and can also be used as a regular glove box to replace inert gas.
Key Features
- Vacuum pump 2L/4L
- Movable bracket - the laboratory with no desktop can choose
- Fully automatic moisture and oxygen controller
- Domestic & imported moisture and oxygen sensor
- Foot pressure controller
- UV sterilization lamp
- Dust removal and cleaning system
- Purification system H2O&O2 ≤ 0.1PPM
Manufacturer
Torun
Torun are a leading glove box manufacturer committed to the research and production of dry cabinets, vacuum boxes, glove boxes, and automated anhydrous and anaerobic intelligent equipment.

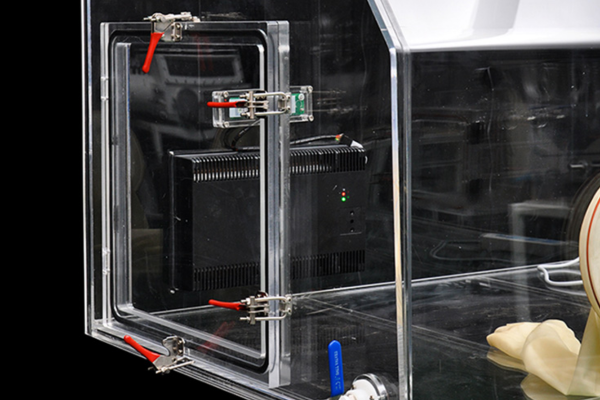

Principle
The working principle of VGB-2H acrylic glove box with low humidity is to reduce humidity through the desiccant module inside the box, with a minimum of 1% RH. The glove box is equipped with a vacuum antechamber.
During the experiment, if items need to be transferred inside or outside the box, they can be transferred through the antechamber without damaging the low moisture atmosphere that has been replaced inside the main box.

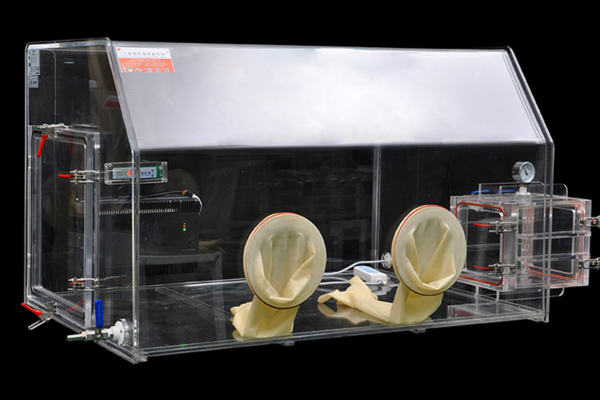

Application area
Mainly creating non-moisture and non-oxygen environments for organic metal chemistry, organic synthesis, 3D printing of new material powders, special anaerobic and hydrophobic chemical treatment, biomedical, electronic component processing, solar cell assembly, lithium battery materials and battery assembly experiments, catalyst treatment, pharmaceutical synthesis, nuclear industry, membrane industry, etc.

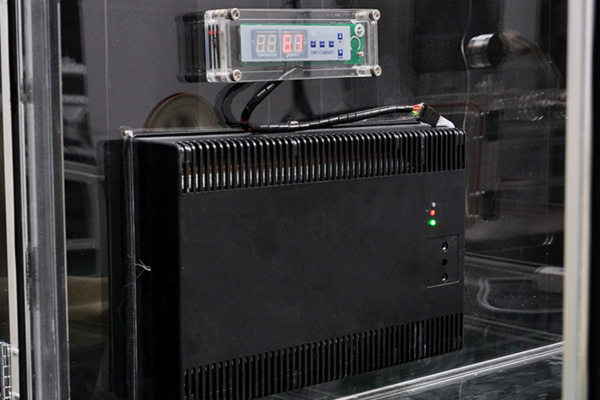

Characteristics
1. Using imported high-quality acrylic material with high transparency, the experimental process is clear without dead corners, and does not turn yellow over time.
2. The main chamber cannot be evacuated and there is a vacuum antechamber. If items need to be transferred during the experimental process, they can be transferred through the antechamber.
3. The inside of the box is equipped with a power socket, which is convenient for connecting experimental instruments such as spin coating machines and scales.
4. The inlet and outlet of the box adopt a quick plug type, which is convenient for connecting the trachea. It can also choose a pagoda head with a ball valve switch.
5. The attached high-efficiency dehumidification mechanism has a long service life, it can be regenerated after being saturated with moisture, making it easy to use, silent, and efficient.
Specifications
| Model | Main chamber size (mm) | Thickness (mm) | Side door (mm) | Vacuum degree (pa) | Antechamber size (mm) & vacuum degree (mpa) | Moisture control range |
| AGB-2H | 700W*450D*550H | 6 | 300*300 | ±1000 |
240*240*240 -0.1mpa |
1-10%RH or 10-40%RH |
| AGB-3H | 800W*550D*600H | 6 | 300*300 | ±1000 |
240*240*240 -0.1mpa |
1-10%RH or 10-40%RH |
| AGB-4H | 900W*500D*500H | 6 | 300*300 | ±1000 |
240*240*240 -0.1mpa |
1-10%RH or 10-40%RH |
| AGB-5H | 900W*600D*700H | 10 | 300*300 | ±1000 |
240*240*240 -0.1mpa |
1-10%RH or 10-40%RH |
| AGB-6H | 1000W*750D*700H | 10 | 400*400 | ±1000 |
240*240*240 -0.1mpa |
1-10%RH or 10-40%RH |
| AGB-8H | 1200W*800D*700H | 10 | 400*400 | ±1000 |
240*240*240 -0.1mpa |
1-10%RH or 10-40%RH |
