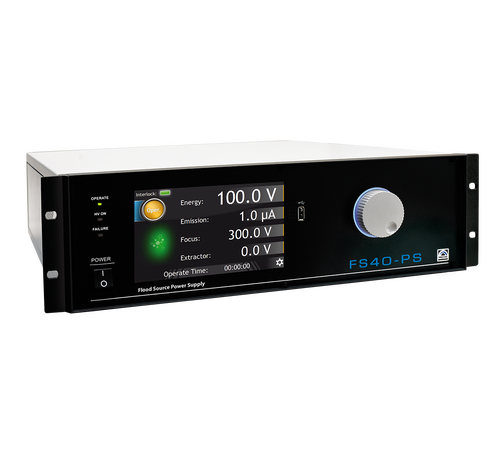

Flood Source Power Supply FS40-PS

New power supply with touchscreen dedicated for Flood Source FS40A1.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Description

All adjustable parameters are displayed on the large TFT display with touchscreen. All settings can be manually adjusted or can be stored and recalled automatically after unit switch on. The unit also features a built in timer and automatic standby mode. The FS40-PS can be supplied as a full width 19″ rack mounting unit (3U height) or free standing. Unit can be remotely controlled via one of available interfaces. Unit also provides remote control of beam energy, emission current, focus and extractor voltages using analogue interface. Autosave function for saving your parameters/unit pre-set and applying them automatically after restart.

Technical data

Supply voltage 100 V – 240 V, 50/60 Hz
(power consumption max 75 W)
Beam energy
(low energy range)
0.01 – 50 eV, resolution 0.01 eV
Beam energy
(high energy range)
50 – 1000 eV, resolution 0.1 eV
Emission current 1 – 1000 μA, resolution 0.1 μA
Focus voltage 300 – 1000 V, resolution 0.1 V
Extractor voltage 0 – 150 V, resolution 0.1 V
Analog inputs 4 (0-10V)
Timer Dual mode timer 0s – 99h 59m
Communication interface RS232/485, Ethernet
Communication protocol MODBUS-TCP
User Interface 7” TFT display with touchscreen, digital encoder
Interface languages English, German, Polish
Dimensions 483 x 133 x 435 mm (W x H x D), 19″ rack mountable or alone
Weight (approx.) 5.2 kg

Applications

The FS40-PS power supply is designed for use with the FS40A1 Electron Flood Sources which are used for charge neutralization of insulator and semiconductor samples in XPS/AES and SIMS applications.

Downloads

Brochures

Instruments with Electronics Brochure

View Brochure

Options

  • Software control (Version Pro, Extended or Library Module).
