Evactron® E16
The Evactron E16 De-Contaminator is a compact yet simplified plasma cleaner for Electron and Ion Beam Instrument load locks such as SEMs, TEMs, FIBs, and sample preparation chambers. The E16 delivers gentle and effective cleaning for superior resolution and imaging plus improved detector and probe sensitivity that are compromised by contamination.

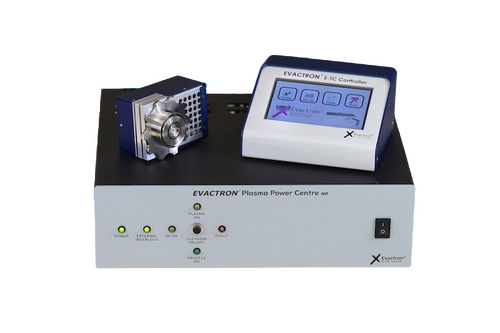

New design features of the Evactron E16 Plasma Radical Source (PRS) include a unique flush-mounting flange and compact size to fit in restricted spaces on a chamber wall. The Evactron E16 Power Centre controller has a small footprint and can be placed horizontally or vertically to conserve space.
Key Features
- Flush-mounting flange: A unique flush-mount flange fits in restricted spaces on a chamber wall
- Compact PRS: A small Plasma Radical Source built for tight clearances around the instrument
- Space-saving controller: A small-footprint Power Centre, mountable horizontally or vertically
- Touchpad recipes: Cleaning recipes are programmed directly via touchpad
- Auto-tune ignition: Automatically tunes the plasma — no match-tuning or gas-flow adjustments needed
- Turbo-pump (TMP) compatible: Clean with the turbo pump running and no advance venting; TÜV, NRTL and CE certified
- Certified: RoHS, CE, NRTL, TUV and SEMI S2 compliant
- Alternate-gas capability: Runs on air or alternate process gases for tailored cleaning chemistry
- Non-damaging: Gentle downstream cleaning that protects sensitive samples and components
- Dual-action cleaning: Combines plasma and UV afterglow to remove hydrocarbon contamination
- Pop Ignition: Patent-pending ignition technology at high vacuum
Manufacturer
Evactron Plasma Cleaning by XEI Scientific
For almost three decades XEI Scientific has helped researchers, engineers, and manufacturers to maintain cleaner vacuum environments for electron microscopy and advanced analytical instrumentation.
XEI Scientific pioneered downstream plasma cleaning for electron microscopes and introduced the Evactron® De-Contaminator, the first commercial in-situ plasma cleaning system for electron microscope vacuum chambers. Today, Evactron plasma cleaning technology is trusted by laboratories worldwide to remove hydrocarbon contamination, support pristine vacuum conditions, and improve performance across SEM, TEM, FIB, UHV, EUV, X-ray optics, and specimen-preparation applications.
Their mission is straightforward: to help scientists and engineers achieve cleaner systems, clearer data, and more dependable results. As XEI Scientific enters its next chapter, we remain committed to practical innovation, responsive customer support, and the high standards of quality and reliability that have defined the Evactron name.
