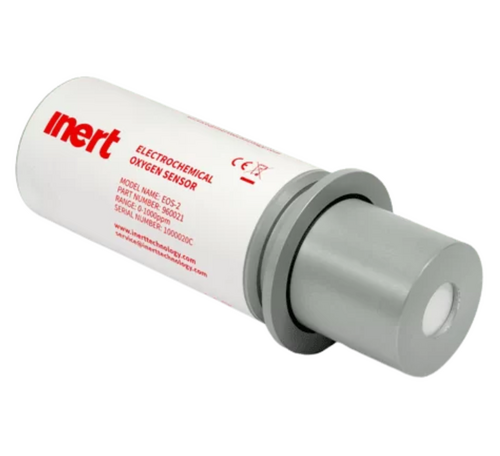

EOS-2 Electrochemical Oxygen Sensor
Inert oxygen sensors offer unparalleled performance in the monitoring of oxygen levels in critical process applications.
Manufacturer
Inert
Inert design and deliver the most dependable standardised and custom-built atmosphere Glove Boxes, Gas Management Systems, and Solvent Purification Systems at the most competitive prices. They also offer a full inventory of replacement parts and supplies. Since 1981, they have been the glove box and solvent system design/manufacturer who puts quality, flexibility, and customer service first. As a result, their solutions and after-sales support are unmatched.
Key Features
- Measurement range: 0-1000 ppm Oxygen
- Economical Electrochemical Sensor
- Rugged Housing with KF-40 Process Connection
Specifications
| Gas type/range | Oxygen 0-1000ppm |
| Response time (0-90%) | Approximately 10 seconds |
| Power requirements | 24VDC+/-10%, max 160mA |
| Compatibility | Suitable for use in the presence of solvents or volatile metal-organics |
| Output signal | Factory configured option: 0-+10VDC or 4-20mA |
| Accuracy |
±0.1ppm from 0-10 ppm; ±1ppm from 10-100ppm, ±10ppm from 100-1000ppmvalue) from above 100 to 1000ppm |
| Sensitivity | 0.1 ppm |
| Drift | At 10ppm; 10%/year |
| Pressure range | 800 to 1200mbar absolute |
| Process connection | KF-40 flange |
| Temperature range | +15 to +35°C |
| Weight | 0.57Lbs/0.260Kg |
