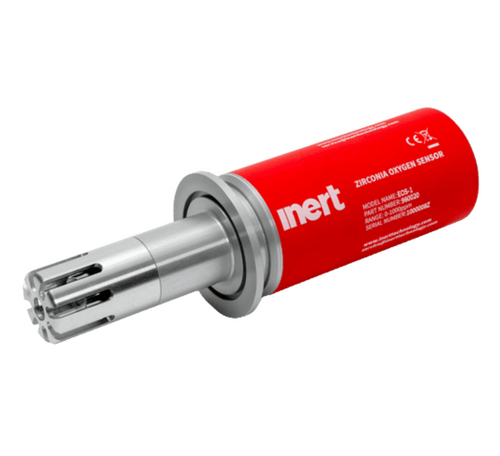

EOS-1 Zirconia Oxygen Sensor

EOS-1 Zirconia Oxygen Sensor

The EOS-1 inert oxygen sensors offer unparalleled performance in the monitoring of oxygen levels in critical process applications.

Manufacturer

Inert

Inert design and deliver the most dependable standardised and custom-built atmosphere Glove Boxes, Gas Management Systems, and Solvent Purification Systems at the most competitive prices. They also offer a full inventory of replacement parts and supplies. Since 1981, they have been the glove box and solvent system design/manufacturer who puts quality, flexibility, and customer service first.  As a result, their solutions and after-sales support are unmatched.

Key Features

  • Measurement range: 0-1000 ppm Oxygen
  • Economical Zirconia Sensor
  • Rugged Housing with KF-40 Process Connection

Specifications

Gas type/range Oxygen 0-1000ppm
Response time (0-90%) Approximately 10 seconds
Power requirements 24VDC+/-10%, max 160mA
Compatibility Not suitable for use in the presence of solvents or volatile
metal-organics
Output signal Factory configured option: 0-+10VDC or 4-20mA
Accuracy +/-1ppm from 0-10ppm, +/-3%(of value) from 10 to 100ppm and +/-5%(of
value) from above 100 to 1000ppm
Sensitivity 1 ppm
Drift At 10ppm; 10%/year
Pressure range 800 to 1200mbar absolute
Process connection KF-40 flange
Temperature range +15 to +35°C
Weight 0.57Lbs/0.260Kg
