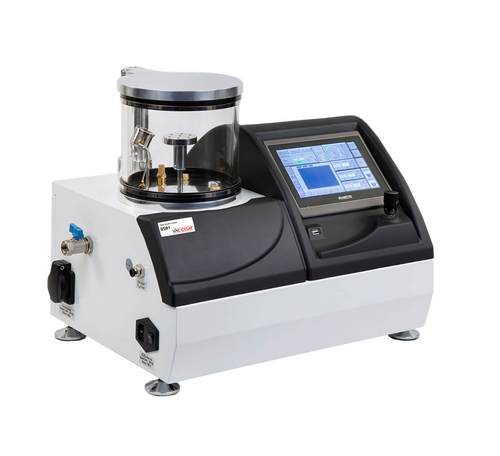

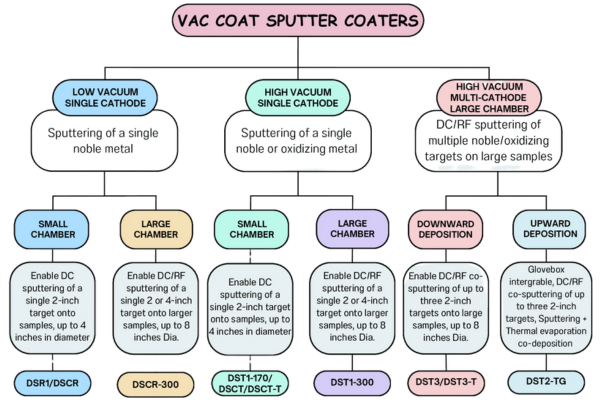

DSR1 – Dedicated Sputter Coater
The Desk SEM Coater model DSR1 is a compact coating system able to coat noble metals such as gold (Au), palladium (Pd), platinum (Pt), and gold/palladium (Au/Pd) thin films on non-conductive or poorly conductive specimens. Uniform thin films with fine-grain sizes are formed in a fast cycle time.
Manufacturer
Vac Coat
Vac Coat Limited is a designer and manufacturer of high-quality tailor-made Physical Vapour Deposition (PVD) and Vacuum Coating Systems with excellent customer care and after sale services. Equipped with more than 25 years’ experience in the vacuum and Thin Film deposition technologies. Their research and development team supported by academic scientists and qualified engineers are highly active to develop new designs and meet special inquiries received from clients. Designed and manufactured components by Vac Coat's engineering team meets high-quality standards. Their vacuum coating systems have been sold to many universities and research centres through distributors worldwide with very good references and feedback.
Key Features
- Two-stage, direct drive 4m3/h
- DC Power Supply 80 W
- Quartz crystal thickness monitor with precision of 1nm and resolution of 1 Å
- One 2-inch magnetron cathode
- Electronic gas valves
- Sample rotation, height and tilt adjustable
- Equipped with electronic shutter
- Easy-to-change specimen stages (Planetary rotation or rotation stage as standard)
- Two-year warranty
- CE conformity
- Intuitive touch screen to control the coating process and rapid data input
- User friendly software that can be updated via network
- Controls coating rate to achieve finer grain structures
- Semi-fully automatic coating process (optional)
- Repeatable, programmable sputtering process in the automatic mode
- Manual or automatic Timed and Thickness deposition
- Able to record and plot coating parameters graphs
- Storing coating recipes for repeatable depositions
Sputter Coater Applications
The DSR is a Scanning Electron Microscope (SEM) sample preparation system, SEM coater equipped with a rotary pump to achieve vacuum less than 50 mTorr which is a suitable vacuum range for noble metals sputter coating.
Touch Screen Control with Colourful Display

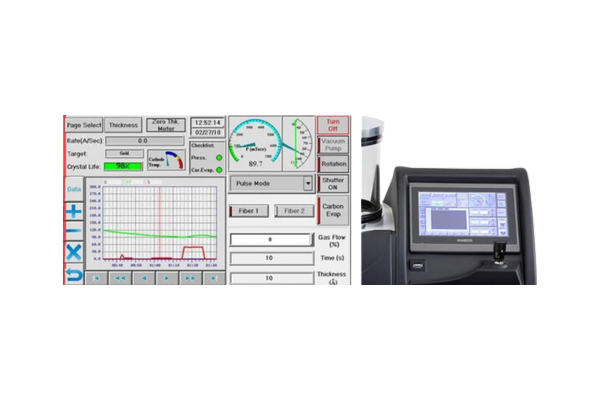

DSR1, the desk sputter coater, is equipped with a 7” coloured touch screen and full automatic control and data input that can be operated by even inexperienced users. The vacuum, current and deposition information can be observed as digital data or curves on the touch screen. Information of the last 300 coating can also be saved in the history page.
Sample Holder
The DSR1 can be equipped with different sample stage configurations depending on the user requirements. The standard sample stage is rotatable with adjustable height, angel and can be changed easily.
The rotary planetary sample stage is a good choice for uniform coating of porous specimens.
Desk Sputter Coater Options and Accessories
- Quartz crystal sensors
- Planetary sample rotation
- Spare glass chamber
- Sputtering targets
- Sealing gaskets
Specifications
Cylinder chamber | 170 mm OD x 140 mm pyrex cylinder chamber |
Dimensions | 47 cm H x 46 cm W x 37 cm D |
Shipping Weight | (included vacuum pump): 42Kg |
Utilities | 220V-240V, 50/60HZ, 10A |
Power supply | 80 Watt DC switching power supply |
Monitor | High precision thickness monitor |
Ultimate Vacuum | Less than 40 mTorr |
Cathode | 2 inches magnetron cathode |
Shutter | Electronic shutter |
Leak valve | Electronic leak valve |
Transfer | Transfer the curves and sputtering process data by USB port to PC |
