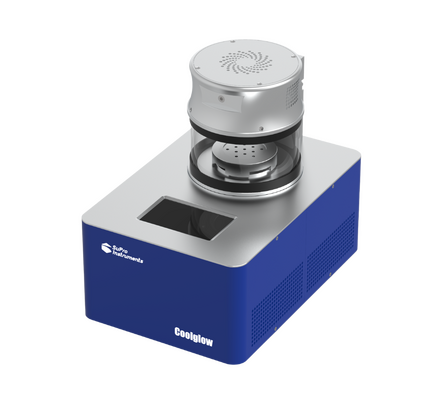

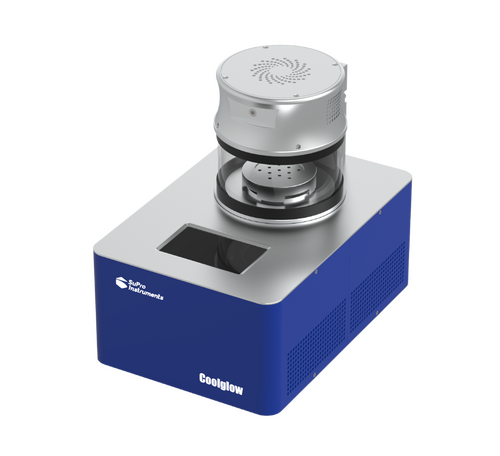

COOLGLOW Glow Discharge System
Coolglow is a compact and user-friendly glow discharger that generates a vacuum pressure of <50Pa using a high-performance mechanical pump.
Key Features
- ICP-RF technology: room temperature treatment without damage
- Good uniformity and repeatability
- Convenient operation
Manufacturer
SuPro Instruments
Supro Instruments is committed to providing lean-level preparation, measurement, and control instruments for electron microscopy sample preparation and micro-nano thin film fields, assisting customers in improving research and development and production efficiency, and providing customers with a better user experience.
Product Information
With the increasing demand for imaging applications, it is more important than ever to use clean and consistently high-quality TEM grids. Coolglow is a compact and user-friendly glow discharger that generates a vacuum pressure of <50Pa using a high-performance mechanical pump. It then ionizes the air using an RF power supply, causing a transition of the grid surface from hydrophobic to hydrophilic. This allows for more uniform dispersion of polar suspensions on the carbon film. The RF power supply is efficient, producing a plasma that is gentler (<15eV) and has good reproducibility, resulting in reliable and repeatable results
Product Specification
| Technical Specifications | Parameters |
| Vacuum Pump | Rotary Vane Pump |
| Pumping Speed | ≥2m3/h |
| Ultimate Vacuum | <10Pa |
| Working Pressure | 10-100Pa |
| Pumping Down Time | <1Min |
| Vacuum Gauge | Pirani Gauge |
| Chamber | Ø150*90mm Scratch-resistant Quartz Glass |
| RF Power Supply | Adjustable from 10 to 50 W, 13.56 MHz |
| Operating Method | Touchscreen Control with the Control System Providing Interlock Protection Functions |
| Weight | ~20kg |
| Dimension | 400mm*310mm*368mm |
| Power Supply | 100-220V AC, 50/60Hz grounded three-prong plug |
| Power Consumption | < 300 W |
| Warranty | One year |
Downloads

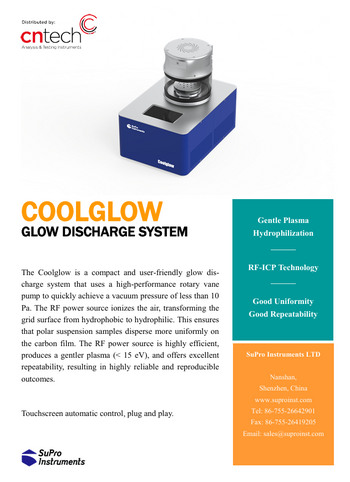

COOLGLOW Brochure
