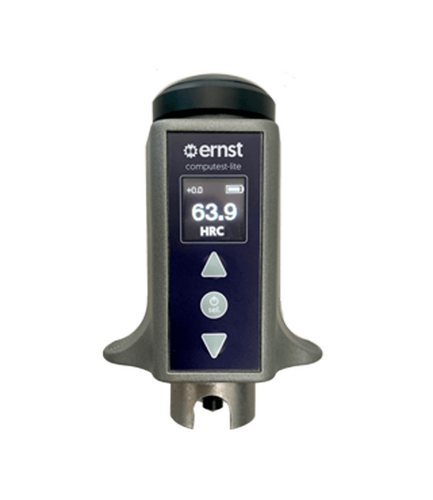

Computest-Lite
Unlock the simplicity and autonomy of Computest Lite, a 5kgf load portable Rockwell hardness tester, distinguishing itself from its larger sibling, the E-Computest, through its language-independent operation, onboard display, absence of data management or sharing functionalities, and a comprehensive set of preset scales.
Key Features

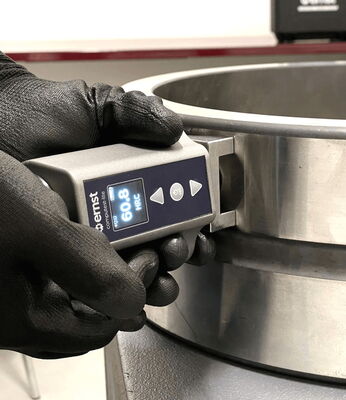

- Portable miniaturised Rockwell hardness tester - On-site measurement of pieces of any size
- Adjustable in all directions - Savings on handling and cutting costs
- 1 diamond indenter for the entire range of metals - Speed and simplicity of the testing process
- Testing is not affected by any yielding or bending - Reliable results in all test conditions
- ACCREDIA certification (ILAC MRA-Mutual Recognition Arrangements) - Offers a competitive advantage in markets where certification is required
Manufacturer
Ernst
Ernst have been driving the research and innovation in hardness testing for over 60 years. Ernst produce portable, automatic and bench-top hardness testers, covering all hardness testing requirements, together with products that extend their functionalities such as indentation readers and case depth analysers.
Overview
Language Independence: Computest Lite breaks language barriers, offering seamless operation without the need for language selection or customisation. This ensures straightforward usability across diverse linguistic backgrounds, eliminating any language-related complexities.
Onboard Display: Equipped with an onboard display, Computest Lite provides instant results without the necessity for external devices or software. This feature streamlines the testing process, offering real-time feedback directly on the device, enhancing efficiency and convenience.
No Data Management or Sharing: Unlike its larger counterpart, Computest Lite focuses solely on hardness testing, omitting complex data management and sharing functionalities. This streamlined approach simplifies operation, catering to users who prioritise straightforward testing procedures without the need for data handling.
Set of Preset Scales: Computest Lite comes preconfigured with a comprehensive set of preset scales, catering to common testing requirements across various industries. This eliminates the need for custom scale configurations, offering immediate usability out of the box.
Technical Details
| Power supply | 100 - 240 Volt |
| Loads | 5 kgf (49 N) |
| Norms and certifications | DIN 50157 | ASTM E-110 | ACCREDIA certificate upon request |
| Minimum measurable diameter | 2 mm with stand 12 mm with base for rounds |
| Selectable functions | Scales, tollerances, calibration, test load, stats, language, sequence, files, materials, partial average, clock, auto off timer, add notes, barcode scanner, geo-localization |
| Output interfaces | Wifi, Bluetooth, micro USB, micro SD slot |
| Reading | Tablet display touch-screen 6" |
| Languages | Italian, English, German, Other languages on request |
| Load application method | Manual |
| Weight | Mechanical unit 750 g Electronical unit 360 g |
| Preload | 1,2 kgf (11.8 N) |
| Accuracy | HRC 0,3 HB < 1% |
| Working principle | Rockwell |
| Standard scales | HRC (10-70) - HB5 (21-190) - HB30 (80-700) - HV (35-1080) - DPTH (0-100) |
| Load time | selectable 1 - 60 sec |
