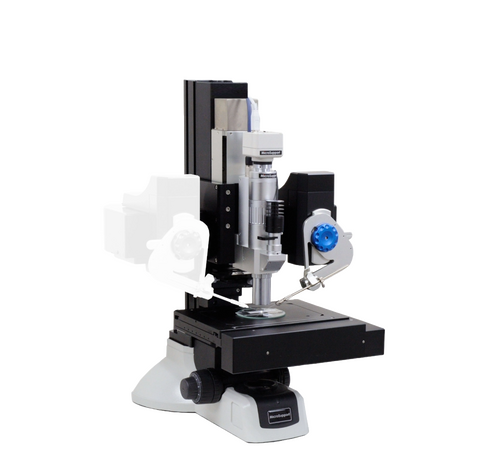

Collection Pro
Automated sorting/collection of microscopic substances.
Manufacturer
Micro Support

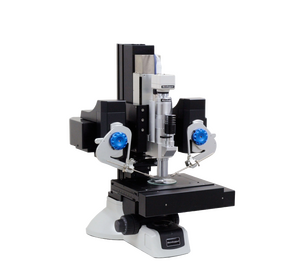

Micro Support is a prominent Japanese company specialising in the precision manufacturing of micromanipulators tailored for precise micro sampling. At the forefront of technological innovation, they have developed AxisPro, a cutting-edge, all-in-one micromanipulator that sets the industry standard for precision and versatility. AxisPro exemplifies Micro Support's commitment to advancing microsampling techniques, empowering researchers and professionals with a tool that offers unparalleled accuracy and control at the microscopic level. With a strong dedication to quality and a reputation for excellence, Micro Support continues to play a crucial role in advancing scientific research and applications that demand precise micro manipulation.

Collection Pro
Collection Pro can automatically separate out grains based on size, colour and shape. This automated software with micromanipulator is automatically separating out 70 ~100 μm size, green grains. The system can automatically separate out grains based on size, colour and shape. The system can save time to separate out grains like Zircon. Because the system have separated out thousands of micro-grains in several hours by automated session.
Key Features
- This system utilises image/position analysis technology to automate the sorting, collection, and accumulation of minerals and other small particles with efficiency and precision
- Empowered by advanced image analysis technology, this system can automatically determine extraction conditions for dispersed microparticles, sort them, and move them to designated locations with precision
- Through deep learning AI-based image extraction, detectability of objects can be improved
- Facilitates the automation of sorting and accumulation, previously done by brutal force approach

4 Easy Steps for Sample Collection

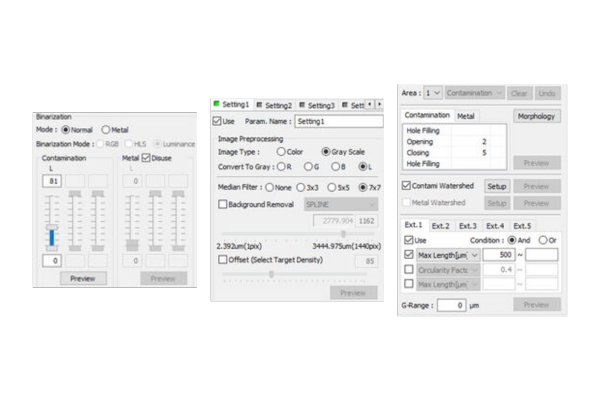

1) Automatic imaging of sample area to classify particles.

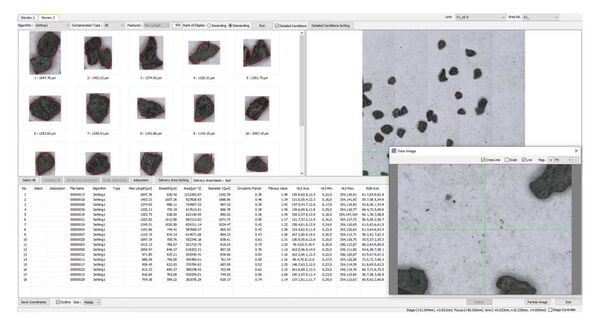

2) Confirmation and editing of results.

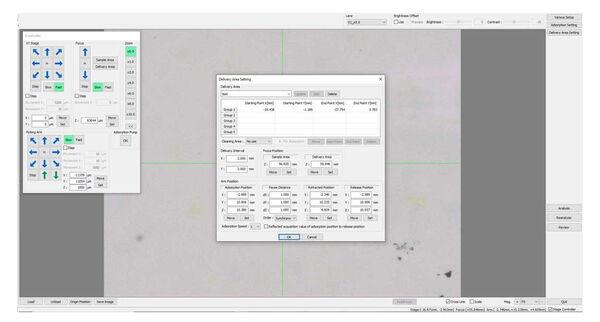

3) Easy collection set-up.

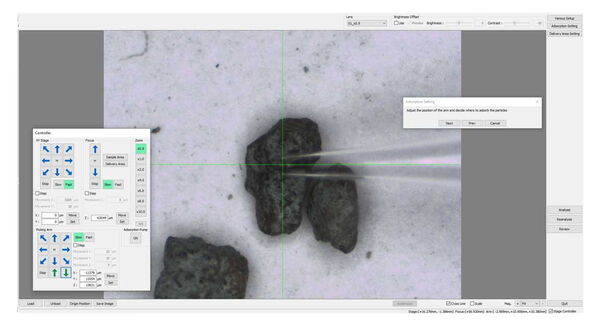

4) Automatic collection.
Microscope Specifications
Magnification | 1.4x to 15x |
Eyepiece Lens | Wide-field 10x |
Objective Lens | 0.8x to 11x |
Working Distance | 65mm |
Electric XY stage | Stroke range of 100 x 50mm |
Illumination | LED ring light, spot light, and transmitted light available |
Camera | 1.3 MP CMOS digital camera |
Software Specifications
Observation/Recording/Mapping/Report generation |
Multi-view control (Zoom, Pan, etc.) |
Simple measurement functions |
Scale and annotation display |
Micromanipulator Specifications
Electric micromanipulator (3-axis) | Stroke range of 20 x 20 x 30mm |
Adjustable fine movement | 200-100μm steps |
Control System Specifications
PC | Windows 10 |
Monitor | 21.5” colour LCD x 2 |
Applications
Minerals
Collection Pro can automatically separate out grains based on size, colour and shape
- Sample: Minerals
- Sampling equipment: Collection Pro
- Application: Automated Separation of Micro-Grains

Downloads
